Installation and maintenance instructions

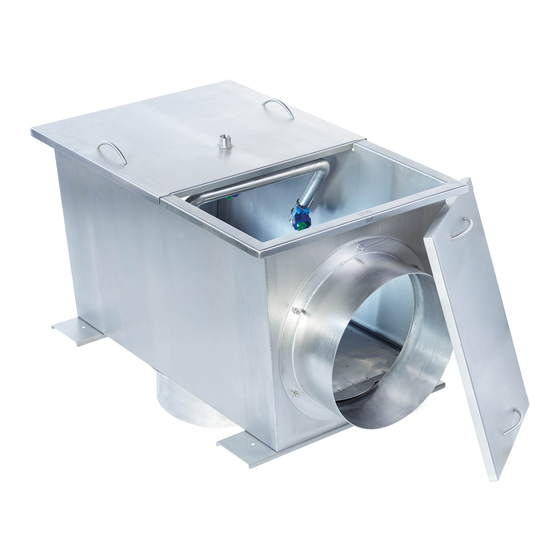

Optimax XXL Filter external
Item no. 340096
DN300 (12") connection kit (USA)
Item no. 340098
DN400 (16") connection kit (USA)
Item no. 340100
The points described in these in-
structions must be observed under
all circumstances. All warranty
rights are invalidated in the event
of non-observance. Separate in-
stallation instructions are enclosed
in the transportation packaging for
all additional articles purchased
from GRAF.
Missing instructions must be re-
quested from us immediately.
The tank must be checked for any
damage prior to insertion into the
trench under all circumstances.
Missing instructions can be down-
loaded on www.graf.info or can be
requested from GRAF.
GRAF Optimax-XXL Filter external
Contents
1.
1.1
1.2
2.
2.1
3.
3.1
3.2
4.
5.
5.1
5.2
5.3
6.
6.1
6.2
6.3
2
2
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
Advertisement
Table of Contents
Related Manuals for Graf Optimax-XXL
Summary of Contents for Graf Optimax-XXL
-
Page 1: Table Of Contents
Preparing the filter and piping trench under all circumstances. Insertion and establishing connections Missing instructions can be down- Connecting the filter cleaning unit loaded on www.graf.info or can be START-UP AND MAINTENANCE requested from GRAF. Start-up Maintenance Cleaning... -
Page 2: General Information
GRAF offers an extensive range of accessories, all of which are designed to match each other and which can be extended to form complete systems. The use of other accessories may lead to impediments to the system's functional capability, therefore invalidating liability for resulting damage. -
Page 3: Transport And Storage
Transport and storage Transport The filters must be secured to prevent shifting and falling during transport. If the filters are secured for transport using tension belts, make sure that the filters remain undamaged. Stress caused by impacts must be avoided. The filters must in no event be rolled or dragged across the ground. -
Page 4: Installation And Assembly
Installation and assembly Preparing the filter and piping The Optimax XXL Filter external is designed for installation in a pilot shaft or a cistern. Direct installation in the ground without protection is not permitted. Application example (simplified representation): Important: The surface upon which the filter is installed must be completely level in order to ensure optimal function. A suitable lubricant must be used to connect the piping. -
Page 5: Start-Up And Maintenance
Start-up and maintenance Start-up Before start-up, the sieve surface must be cleaned thoroughly using a brush and a fat-dissolving cleaning agent. Alternatively, it may also be cleaned using a fat-dissolving cleaning agent and a strong jet of water (high-pressure cleaner 40°C (104° F) - max. 60°C (140° F)). Dirt that entered the filter housing during assembly must be removed.
