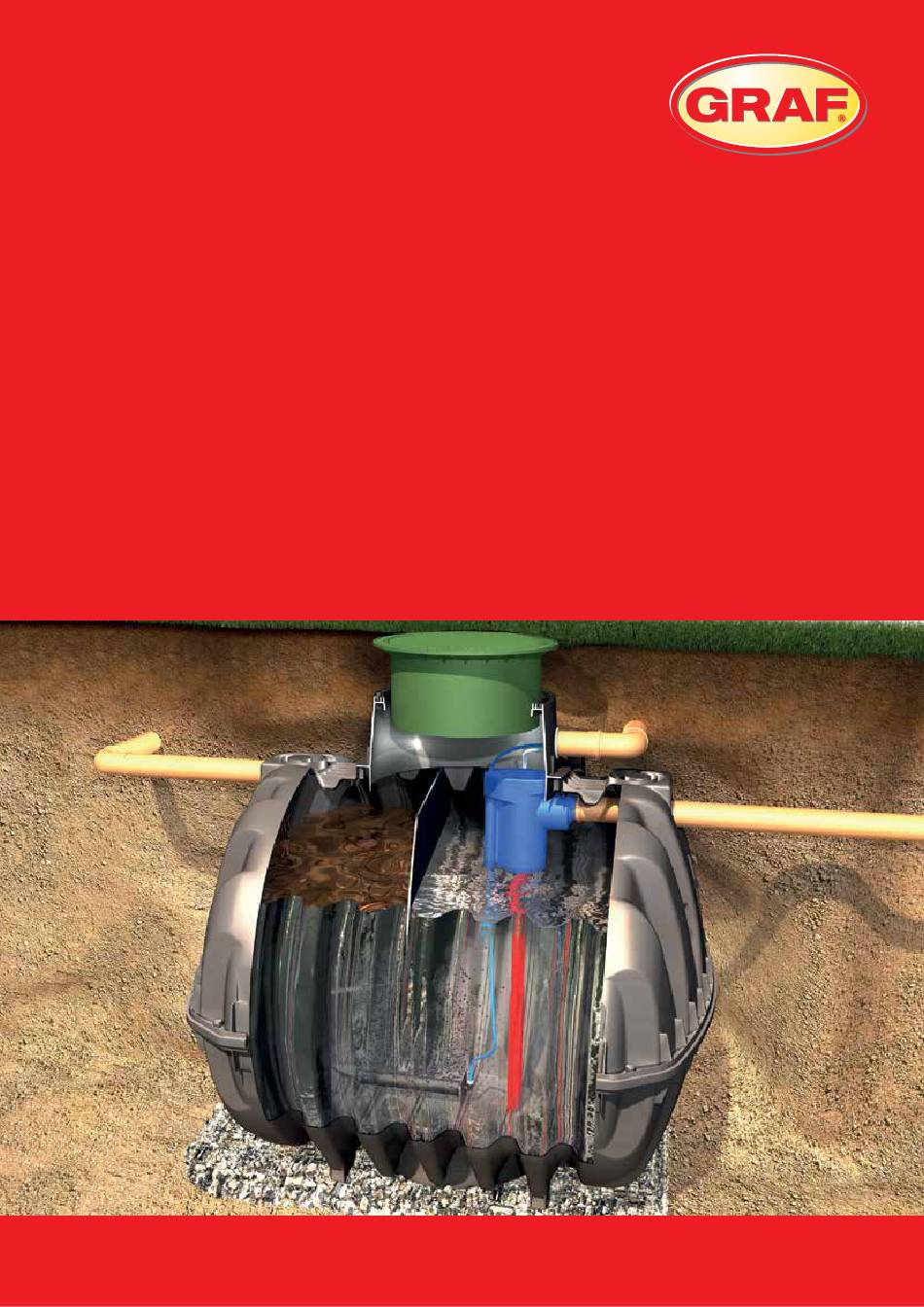

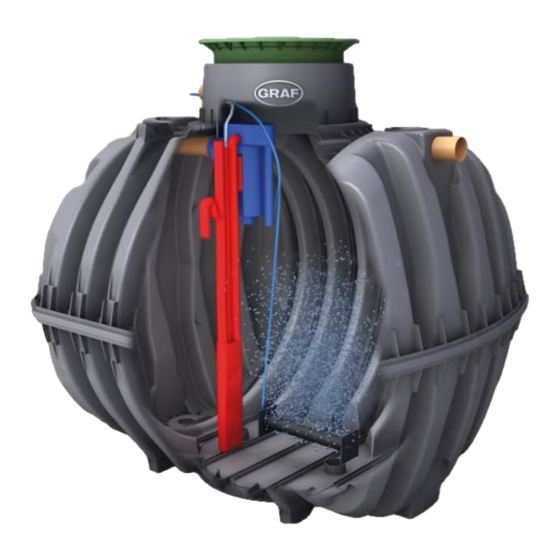

INSTALLATION MANUAL O N E 2 C L E A N T A N K S Document No. Graf-0003 Rev. 1...
Page 2
Only original GRAF covers or covers approved in writing by GRAF must be used. GRAF offers an extensive range of accessories, all of which are designed to match each other and which can be extended to form complete systems.
Page 3
12 to with a max. weight of 12 t. >800<1200 >800<1200 Coverage heights on installation in groundwater the hatched area specifies the permissible immersion depth for the tanks. The immersion depth is 350 mm. max. 350mm Graf UK Ltd...
Page 4
220kg Weight with maxi tank dome 150kg 185kg 220kg 2280mm 2280mm 2390mm 1755mm 1985 mm 2190mm H-Inv - 1390mm 1575mm 1840mm H-Inv + * 630 to 1460mm H-Tot 2020 to 2790mm 2250 to 3020mm 2530 to 3300mm Graf UK Ltd...
Page 5
TANK INSTALLATION Subsoil Telescopic dome shaft Compact foundation Surrounding (round-grained gravel, maximum grain size 10 to 20mm) Covering layer Carat underground tank Concrete layer for surfaces used by passenger cars Graf UK Ltd...
Page 6
Installation adjacent to surfaces used by vehicles If the underground tanks are installed adjacent to surfaces which are used by vehicles heavier than passenger cars, the minimum distance away from these surfaces is at least the depth of the trench. Graf UK Ltd...
Page 7
(Durgo Valves) must not be used instead of the SVP. These valves are fine for houses connected to mains drainage but NOT for ones with a treatment plant. Bleeding with a free outflow Bleeding with percolation or an obstructed outflow Graf UK Ltd...
Page 8
800mm (max. 1050mm with telescope, coverage up to max. 1200mm possible with intermediate section). Attention: It is essential to use the cast telescopic dome shaft (with class B cast cover). Graf UK Ltd...
Page 9
1 Extension = max. earth-cover 1200mm (in each case in connection with the Maxi telescopic dome shaft) 1 Telescopic dome shaft (can be inclined by 5°) 2 Extension 3 Tank dome (can be rotated by 360°) Cut line Graf UK Ltd...
Page 14
*Must be installed within 18m of Tank. *Must be installed within 18m of Tank. *Must be installed within 18m of Tank. *Must be installed within 18m of Tank. Document No. Graf-0002 Rev. 1 T: 01608 661500 F: 01295 211333 E: info@grafuk.co.uk www.grafuk.co.uk...
Page 15
INSTALLATION OF AIR HOSES AND INTERNAL CONTROL 5. Fitting the one2clean control unit Installation of Air Hoses & Internal Controller Fitting the GRAF empty pipe closure element made of PE foam material Document No. Graf-0002 Rev. 1 T: 01608 661500 F: 01295 211333 E: info@grafuk.co.uk...
Page 16
Control Unit. has been fitted to the back of the control unit. with the screws and wing nuts provided. nuts provided. nuts provided. Graf UK Ltd Connect blue Connect blue Page 1 of 2 Page 1 of 2...
Page 17
Document No. Graf-0005 Rev. 1. and then connect to appropriate barbed connectors on For all other information please refer to the One2Clean Push blanking plug into end of 90-degree bend. Connect Push blanking plug into end of 90-degree bend. Connect controller.
For Contents summary The points described in these in- all additional articles obtained by way of GRAF, you will be provided with separate structions are to be respected installation instructions enclosed in the transport packing.
The external switch cabinet for EPP consists of the lower part and the cover hood with: • Lock security pin with installation material • 2 locking screws, M8, for fitting the one2clean control unit (wing nut and washer enclosed with the one2clean control unit).
Provide fuse for The connection for the control unit must be provided via a fused contact coupling to to be provided by the client. the connection be provided by the client. 4 / 8 Graf UK Ltd 4 / 8...
Securing is provided with the M4x12 screws. The lock security pin is to be inserted through the cover from the inside to the outside. Securing is provided witht the M4x12 screws. 5 / 8 Graf UK Ltd...
Inserting the one2clean control unit The one2clean control unit is secured with the locking screws and wing nuts provided. For this purpose the screws are to The one2clean control unit is secured with the locking screws and wing nuts provided. For this purpose be introduced from the outside into the interior.
Page 23
5. Fitting the one2clean control unit 5. Fitting the one2clean control unit Fitting the GRAF empty pipe closure element made of PE foam material Fitting the GRAF empty pipe closure element made of PE foam material Fitting the GRAF empty pipe closure element made of PE foam material...
Page 25
SET DATE & TIME Set Date & Time – One2Clean With unit turned on Cycle pause rest: 684:44min Press Press 19:33:40 2014-05-21 we Press 1 :33:59 2014-05-21 Press To change hours to correct time Press To move to minutes 09:3 :59...
