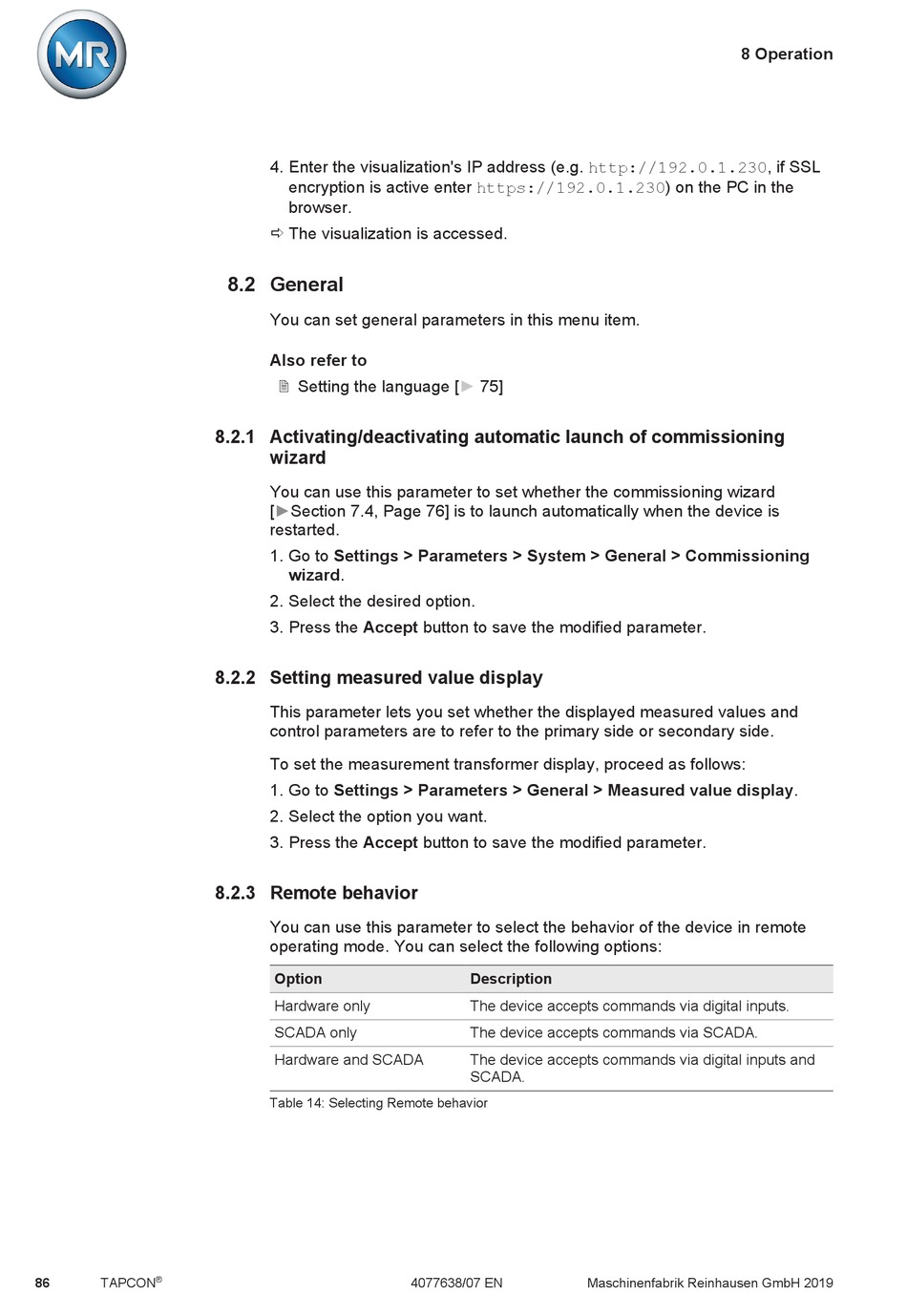

86 TAPCON
4. Enter the visualization's IP address (e.g. http://192.0.1.230, if SSL
encryption is active enter https://192.0.1.230) on the PC in the
browser.
ð The visualization is accessed.

8.2 General

You can set general parameters in this menu item.
Also refer to
2 Setting the language [► 75]
8.2.1 Activating/deactivating automatic launch of commissioning
wizard
You can use this parameter to set whether the commissioning wizard
[►Section 7.4, Page 76] is to launch automatically when the device is
restarted.
1. Go to Settings > Parameters > System > General > Commissioning
wizard.
2. Select the desired option.
3. Press the Accept button to save the modified parameter.

8.2.2 Setting measured value display

This parameter lets you set whether the displayed measured values and
control parameters are to refer to the primary side or secondary side.
To set the measurement transformer display, proceed as follows:
1. Go to Settings > Parameters > General > Measured value display.
2. Select the option you want.
3. Press the Accept button to save the modified parameter.

8.2.3 Remote behavior

You can use this parameter to select the behavior of the device in remote
operating mode. You can select the following options:
Option
Hardware only
SCADA only
Hardware and SCADA
Table 14: Selecting Remote behavior
Description
The device accepts commands via digital inputs.
The device accepts commands via SCADA.
The device accepts commands via digital inputs and
SCADA.
4077638/07 EN
8 Operation
Maschinenfabrik Reinhausen GmbH 2019
