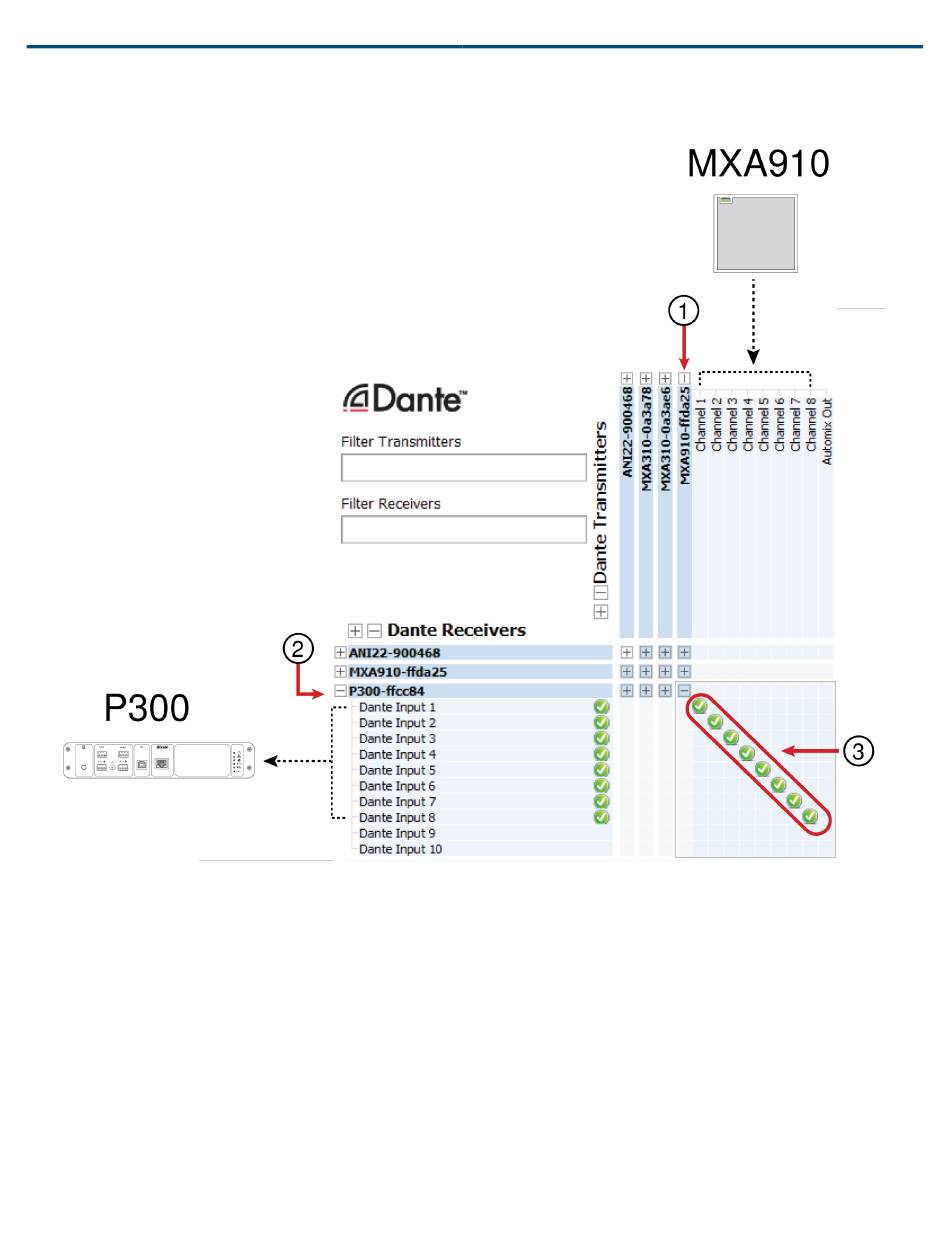

Example: Connecting the P300 and Shure MXA910

1. Find the MXA910 in the list of Dante transmitters, and select the plus sign (+) to show all channels.

2. Find the P300 in the list of Dante receivers, and select the plus sign (+) to show all channels.

3. Connect channels 18 from the MXA910 to Dante input channels 18 on the P300. Do not use the automix out

put from the MXA910 into the P300.

Step 4: Configure Audio

The final configuration steps will vary, depending on the signal processing required and hardware connected to the

P300. These steps provide a general guideline. Specific steps are included in the system examples.

1. Connect analog, USB, and mobile audio devices
