A comprehensive online user guide is available at pubs.shure.com.
®

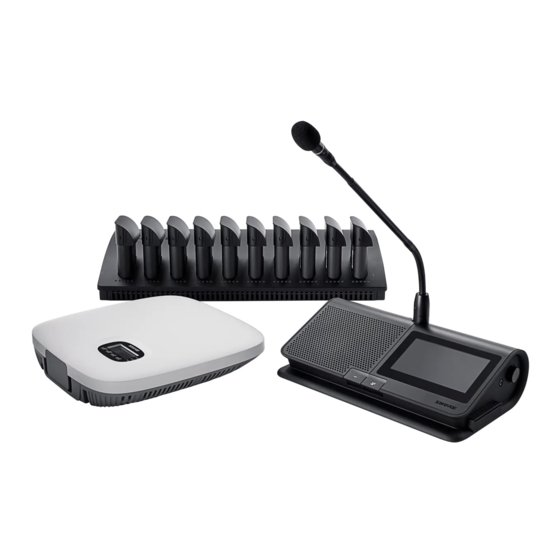

Microflex
Complete Wireless

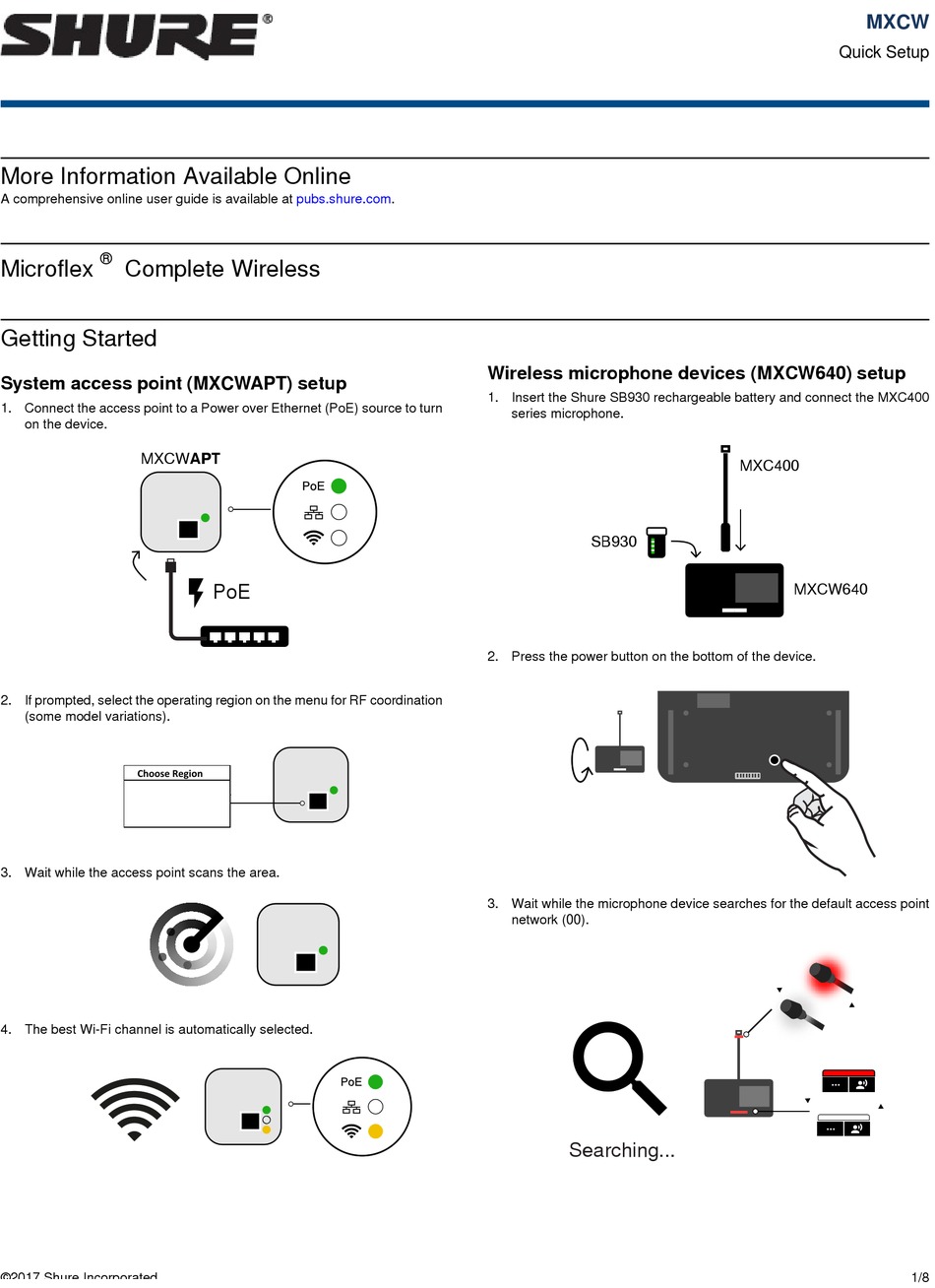

Getting Started
System access point (MXCWAPT) setup
1. Connect the access point to a Power over Ethernet (PoE) source to turn
on the device.
2. If prompted, select the operating region on the menu for RF coordination
(some model variations).
Choose Region
Access point setup
3. Wait while the access point scans the area.
MXC400
SB930
4. The best Wi-Fi channel is automatically selected.
MXCW640
0
Microphone unit setup
MXCW640
©2017 Shure Incorporated
MXCWAPT
PoE
MXCWAPT
Choose Region
PoE
Access point setup
SB930
MXC400
MXCW640
Microphone unit setup
Wireless microphone devices (MXCW640) setup
Access point setup
1. Insert the Shure SB930 rechargeable battery and connect the MXC400
series microphone.
Choose Region
2. Press the power button on the bottom of the device.
MXC400
MXCW640
Microphone unit setup
3. Wait while the microphone device searches for the default access point
network (00).
MXCWAPT
PoE
Choose Region
Access point setup
MXC400
SB930
Microphone unit setup
Searching...
Test the audio
MXCW
Quick Setup
Access po
Microphone
MXCW640
Test the
1/8
Advertisement
Table of Contents
Related Manuals for Shure MXCW
Summary of Contents for Shure MXCW
-
Page 1: Getting Started
System access point (MXCWAPT) setup Access point setup Access point setup 1. Insert the Shure SB930 rechargeable battery and connect the MXC400 1. Connect the access point to a Power over Ethernet (PoE) source to turn series microphone. on the device. - Page 2 1. On one of the microphone devices, press the speak button to activate the microphone. st the audio 4. For more information, visit pubs.shure.com for the full user guide. Device Installation and Positioning Visit to the online user guide for detailed templates, best practices, and in- •...
- Page 3 On the hardware: On the access point menu, scroll down to the IP address screen. IP ADDRESS 192.254.115.222 ⁃ From the computer: Use the Shure Device Discovery app to view and access devices on the network. Download the app for free from shure.com. MXCWAPT MXCWAPT-a64ee5 MXCWAPT-a64ee5.local 169.254.115.222...
-
Page 4: Default System Settings
MXCW Quick Setup Shure Incorporated 4. Sign into the application as the admin. Default System Settings MXCW is designed for plug-and-play operation with default settings. Meeting Mode • Automatic (push to speak) Default system settings: • No queue when the list is full... - Page 5 MXCW Quick Setup Shure Incorporated 7. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. 8. DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 6: Important Product Information
The equipment is intended to be used in professional audio applications. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. Note: This device is not intended to be connected directly to a public internet network. - Page 7 MXCW Quick Setup Shure Incorporated 802.11a • 5.15 - 5.35 GHz, 5.47 - 5725 GHz • OFDM • RF Output Power 21.6 dBm (EIRP) MXCW640 WLAN Specifications: 802.11g • 2.4 GHz • OFDM • RF Output Power 16.2 dBm (EIRP) 802.11a...
- Page 8 Audinate®, the Audinate logo and Dante are trademarks of Audinate Pty Ltd. Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: +49-7262-92 49 0 Fax: +49-7262-92 49 11 4 Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA Phone: +1-847-600-2000 Email: info@shure.com...
