Summary of Contents for Shure STEM HUB

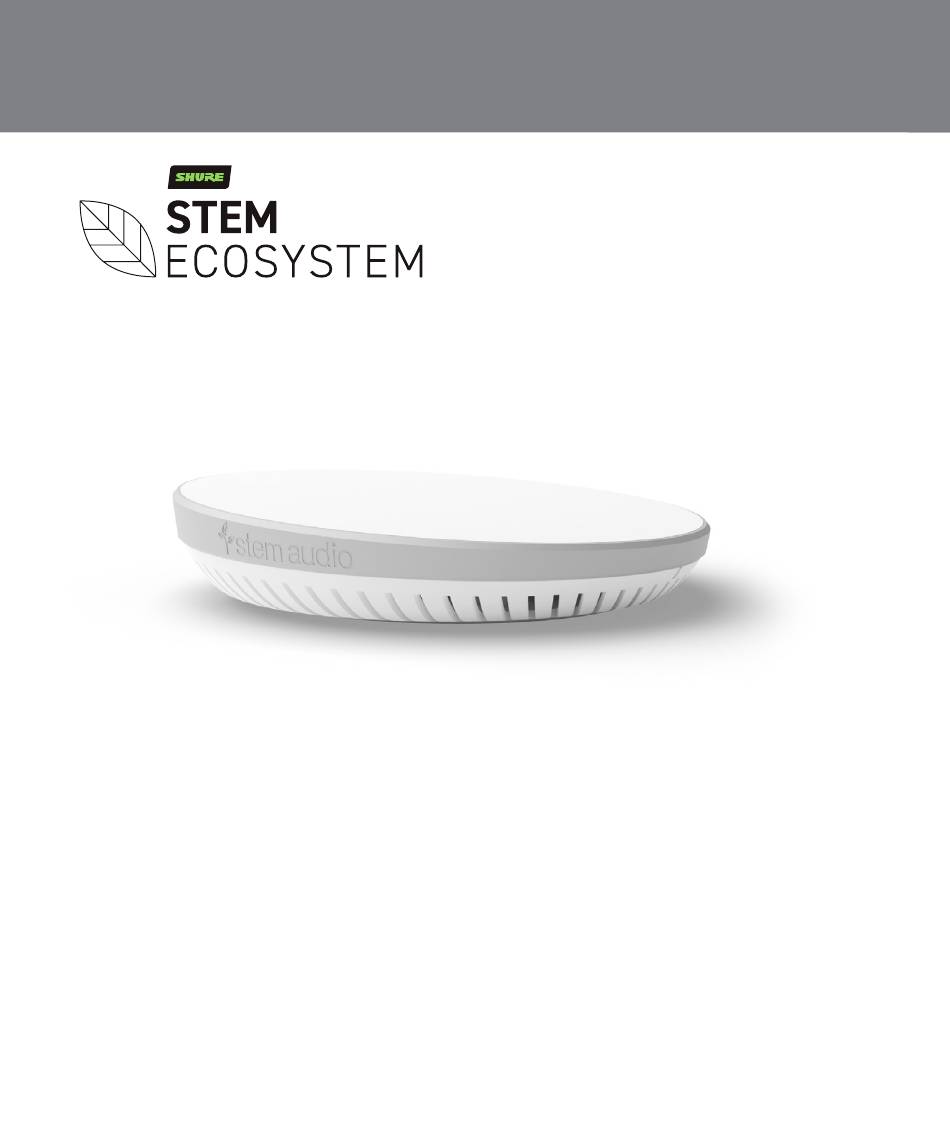

- Page 1 STEM HUB COMMUNICATION CENTER USER GUIDE © 2021 Midas Technology, Inc. Printed in China...
- Page 2 OVERVIEW Stem Hub Communication Center acts as the brain of a room, connecting your network of Stem Ecosystem products to external loudspeakers and other conferencing interfaces over USB Type B, Dante , or SIP. ® Kensignton Lock External Dante Speakers...
- Page 3 MOUNTING 1. Using a level, mark two points on your mounting surface at exactly 2.75 inches apart (7 cm). 2. Install the provided screws at the marked positions. Use the provided anchors as necessary. 3. Align the keyholes on the back of the device with the screws and lightly push in and down to lock into place.
- Page 4 SETTING UP Stem Hub enables all endpoints to communicate with each other and provides one place to make connections to external loudspeakers, Dante® networks, and other conferencing interfaces for all Stem Ecosystem devices. 1. Connect Hub to a network that supports PoE+ using an Ethernet cable.
- Page 5 STEM ECOSYSTEM PLATFORM We recommend using the Stem Ecosystem Platform for all installations. Access the Stem Ecosystem Platform using Stem Control, through the apps available for iOS, Windows, and Android, or by typing in the product’s IP address in a web browser.
- Page 6 HUB1 SPECIFICATIONS • Frequency Response: 50Hz – 16KHz • Broadcast Level (peak): 90dB SPL @ 1Khz from 1m (5 watts RMS) • Noise Cancellation: > 15dB (without pumping noise) • Weight: 0.5 lbs. (0.23 kg) • Dimensions: 7 x 1.5 in (17.8 x 3.8 cm) D x H •...
-
Page 7: What's In The Box
Connectors • USB: USB Type B • Ethernet: RJ45 connector (requires PoE+) • Dante®: RJ45 connector • Analog: Female Terminal Block (for external speakers) What's In The Box • USB Type A to USB Type B Cable: 12 ft. (3.7 m) •... -
Page 8: Important Product Information
IMPORTANT PRODUCT INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter- ference, and (2) this device must accept any interference received, includ- ing interference that may cause undesired operation. -
Page 9: Warranty
WARRANTY The following warranty statement is effective for all Stem Audio products as of May 1st, 2019. Stem Audio ("the Manufacturer") warrants that this product is free of defects in both materials and workmanship. Should any part of this product be defective, the Manufacturer agrees, at its option, to repair or replace with a like-new replacement any defective part(s) free of charge (except transportation charges) for a period of two years for all products. -
Page 10: Need Some Help
NEED SOME HELP? Website: stemaudio.com Email: customerservice@stemaudio.com Telephone: (949) 877-STEM (7836) Product Guides: stemaudio.com/manuals Setup Videos: stemaudio.com/videos Additional Installation Resources: stemaudio.com...
