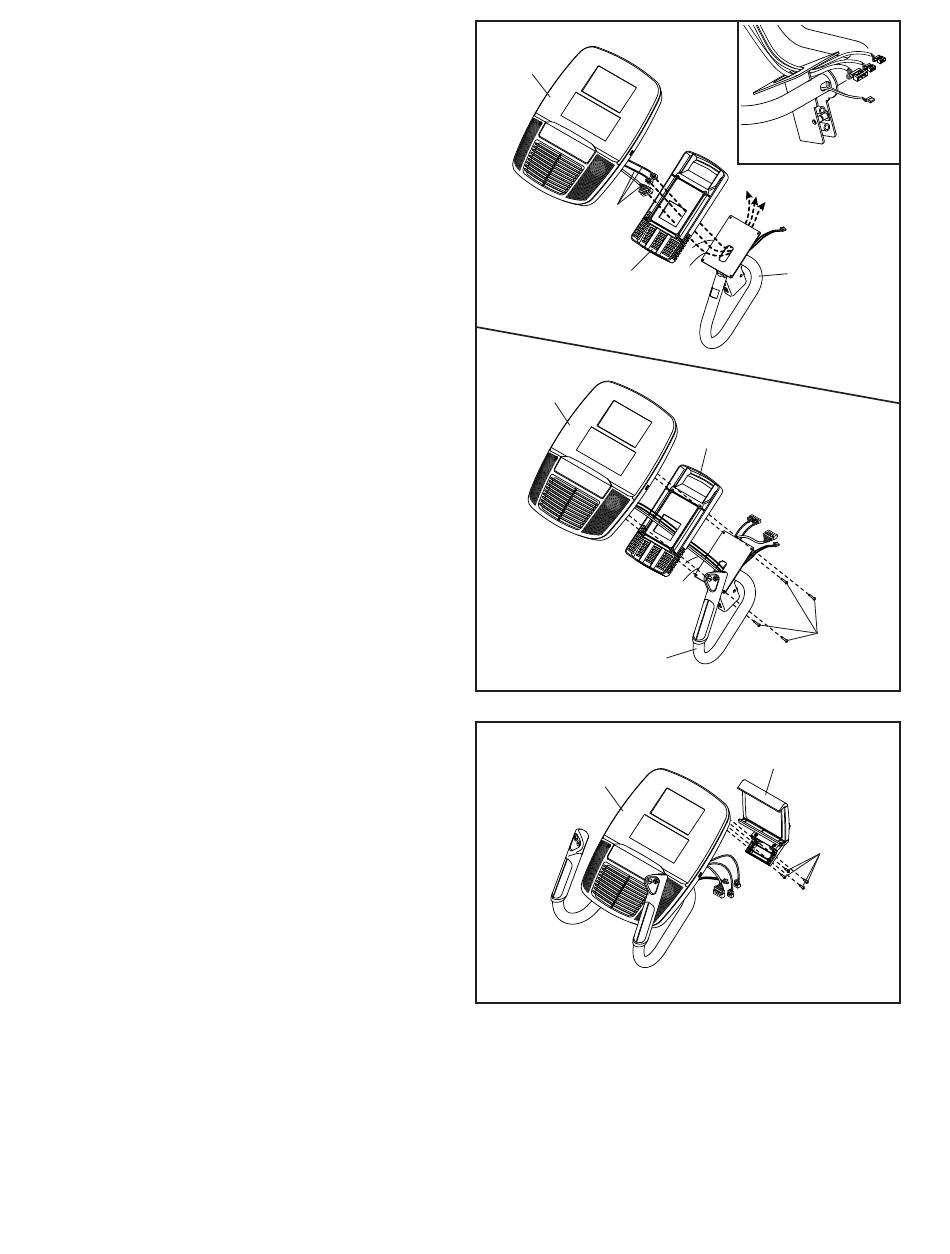

6. See the upper drawing. With the help of a
second person, orient the Console (5), the
Console Cover (7), and the Console Bracket
(4) as shown. Then, route the wires (A) on the
Console through the Console Cover and the
Console Bracket; make sure to insert the wires
through the upper opening in the Console
Bracket, as shown in the inset drawing.
See the lower drawing. Tip: Avoid pinching
the wires. Attach the Console (5) and the
Console Cover (7) to the Console Bracket (4)
with four M4 x 22mm Screws (107); start all the
Screws, and then tighten them.
7. Attach the Tablet Holder (6) to the Console (5)
with four #8 x 16mm Screws (111); start all the
Screws, and then tighten them.
