Summary of Contents for EOS Zeus S

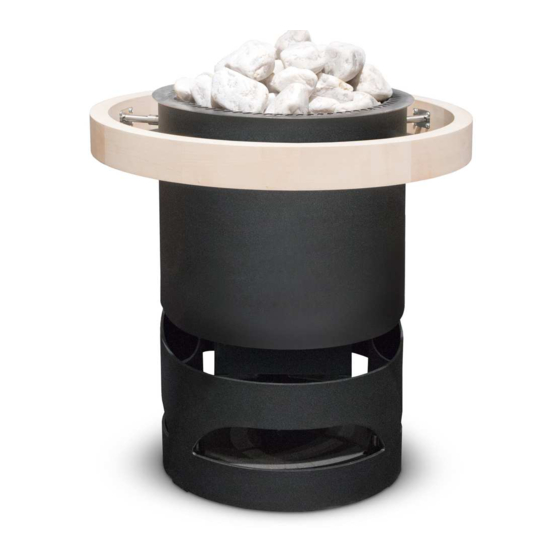

- Page 1 I N N O V A T I V E S A U N A T E C H N O L O G Y Zeus S / Zeus SL Zeus S Zeus SL heater guard rail optional Installation and operation manual...
-
Page 2: Table Of Contents
English Table of Contents Intended use ............................3 General notes ............................3 Important notes ............................4 Scope of delivery ...........................7 Specifications ............................7 Wiring diagrams ............................8 Connection examples ...........................9 Installation and Safety gaps ......................10 Heater guard rail installation .....................12-13 Replacement of heating elements ..................14-15 Sauna stones ............................ -
Page 3: Intended Use
General information Dear customer, You have purchased a high-quality technical Please check whether the unit has arrived in per- device with which you will have years of sauna fect condition. Any transport damages should be fun. This sauna heater was designed and inspect- immediately reported to the freight forwarder ed according to the current European safety delivering the goods or you should contact the... -
Page 4: Important Notes
Important notes Please provide air intake and vent open- • ings in each sauna cabin. The air intakes Unprofessional installation may • must always be positioned behind the cause a fire hazard! Please read these in- sauna heater, approx. 5 to 10 cm above stallation instructions carefully. - Page 5 temperatures generated during operation the sauna ceiling is maintained. Please can cause burns. see also the dimensions diagram for the clearance between the lower edge of the The sauna heater is not intended for in- • sauna heater and the floor. On heaters stallation or set-up in a niche, under a with bases, this clearance is maintained bench or under a sloping roof.
- Page 6 *Remote control – means settings, switching, control and adjustment of the sauna control unit by means of Never add more essences or vol- • commands transmitted from a remote location beyond atile oils than advised on the packaging. sight distance using telecommunication, wire- or wire- less signal transmission systems, network and similar Never use alcohol or undiluted concen- systems.
-
Page 7: Scope Of Delivery
~ Ø 18 cm ~ Ø 18 cm ~ Ø 18 cm Weight, excl. stones / packaging Zeus S / *Zeus SL 67 kg / *62 kg 68 kg / *63 kg Dimensions Ø x Height Zeus S / *Zeus SL Ø... -
Page 8: Wiring Diagrams
Inner wiring 6 kW 7,5 kW 9,0 kW 400 V AC 3N 400 V AC 3N 400 V AC 3N U V W N U V W N U V W N (Gr) (Gr) (Gr) 10,5 kW to control unit to LSG unit 12,0 kW to control unit... -
Page 9: Connection Examples
Connection overview and connection example 6,0 - 9,0 kW Saunasteuergerät Saunaheizgerät Control unit Sauna heater Boîtier de commande Poêle de sauna Netz / Mains / Réseau / Example for control units Emotec, Sensor Saunaheizgerät / Sauna heater / reserviert EmoStyle, EmoTouch 2+/3 Poêle de sauna / Saunasteuergerät / Control unit / max. -
Page 10: Installation And Safety Gaps
Sauna heaters may be operated via remote control* only in combination with an approved safety system like EOS switch-off cover protection rail. *Remote control – means settings, switching, control and adjustment of the sauna control unit by means... - Page 11 Air supply from below Ø 450 mm After reaching the final location of the heater, unscrew the 3 adjustable feet 25-30 mm. Ø 450 mm adjustable feet Zuluft 25-35 mm min. Zuluft Zuluft air inlet air inlet By air supply from below and installation on the Air supply by installation in the sauna centre to be provided through an air channel, mechanical ventilation may be needed.
-
Page 12: Heater Guard Rail Installation
Heater guard rail installation (optional) Installation The ring-shaped heater guard rail is optionally available in 270° and 360° versions. Please bear 1. Lift and take off the ring-shaped top cover in mind that in addition to the guard rail you 2. - Page 13 3. Lift and take out the heating block by hold- ing it at the heating elements. 4. Unscrew 3 headless screws (A) located in the upper part around the heater housing. The 3 holes serve for mounting of the guard rail support brackets.
-
Page 14: Replacement Of Heating Elements
Replacement of heating elements Caution! Disconnect the heater from the power supply and ensure that the heater is cooled down! Risk of electric shock! Risk of burns by a hot heater! Remove stones from the rock store before re- placing the heating elements. 1. - Page 15 4. Take off the terminal box cover (remove 6 screws). 5. Take off the upper cover panel (remove 2 screws). 6. The heating elements are mounted in the upper side of the terminal box and secured from below with M5 screws. 7.
-
Page 16: Sauna Stones
Sauna rocks Maintenance and care Sauna stones are a natural product. Check the The sauna heating unit is made of low-corro- sauna stones at regular intervals. Aggressive sion material. To enjoy your sauna heating unit sauna essences can weaken the sauna stones for a long time you should ensure maintenance and cause them to break apart over time. - Page 17 For the installation of sauna heaters, please checked. pay attention to the DIN VDE 0100 part 703 or Installation of the sauna heater and control unit the corresponding national norms and legal must be undertaken only by an authorized and requirements, e.g.
-
Page 18: Service Address
2012/19/EU. Do not dispose it with the normal household waste. Service Address: EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf, Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de... -
Page 19: General Terms And Conditions Of Service (Asb)
The manufacturers General Terms and Conditions of Business, which can be found at www.eos-sauna.com/ V. Liability agb, shall apply in addition to the foregoing terms and conditions of service.
