- Page 1 EOS Selection Sauna heater Installation and Operating Instructions Made in Germany IPx4 Print-no.: 2902 5136 / 03.22 Technical changes reserved...
-
Page 2: Documentation
Fax: +49 (0)2775 82-431 Web: www.eos-sauna.com Original installation instructions EN Copyright for these installation instructions remains with EOS Saunatechnik GmbH. Copyright as per DIN ISO 16016: The copying and distribution of this document, as well as the use and communication of its con- tents without express authorisation, are not permitted. -
Page 3: Table Of Contents
Deutsch Contents Documentation ............................2 General safety instructions ..........................4 Safety levels ..............................4 Mounting and electrical installation .....................5 Operator instruction ...........................8 Standards and regulations ........................9 Identification ..............................10 Requirements for operation, Nameplate ..................10 Scope of delivery, Technical data ......................11 Accessories (optional) ..........................11 Intended use............................... -
Page 4: General Safety Instructions
General safety instructions General safety instructions Safety levels Safety instructions and important operating instructions are classified. Please familiarise yourself with the following terms and symbols: WARNING Warning Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Caution Indicates a hazardous situation which, if not avoided, could result in minor or moderate in-... -
Page 5: Mounting And Electrical Installation
General safety instructions Mounting and electrical installation These installation instructions are intended for qualified personnel familiar with the laws and regulations applicable to electrical installations at the installation site. Observe the following general safety instructions during mounting, configu- ration and commissioning of the product. Risk to life and limb and risk of fire Risk to life and limb from electric shock and fire in the event of improper or faulty electrical connection. - Page 6 General safety instructions Risk of burns from hot glass Glass surfaces in the cabin become hot while the sauna is in operation. When installing the cabin, ensure that the touchable glass surfaces on the outside of the • cabin may reach a maximum temperature of 76°C. Appropriate protection may need to be installed if required.
- Page 7 General safety instructions sensor housings according to the installation instructions that accompany the control units inside the sauna cabin. The cabin lighting must be safe for sauna cabin use and installed in such a way that it can • be used safely in a sauna cabin. Ensure that the heater is installed in compliance with the standards and legal norms valid in your country.
-
Page 8: Operator Instruction
General safety instructions Operator instruction Der Betreiber der Sauna-Kabine muss bei der Inbetriebnahme über die folgenden allgemei- nen Sicherheitshinweise unterrichtet werden. Dem Betreiber muss die Gebrauchsanweisung ausgehändigt werden. Risk of electric shock A risk to life and limb from electric shock and fire arises in the event of improper repair work. This risk also applies after work is completed.. -
Page 9: Standards And Regulations
• Children must be supervised to ensure they do not play with the unit. Standards and regulations For an overview of the standards that were observed during design and construction of the sauna heaters, please refer to the individual product‘s technical data sheet that can be downloaded from www.eos-sauna.com. -
Page 10: Identification

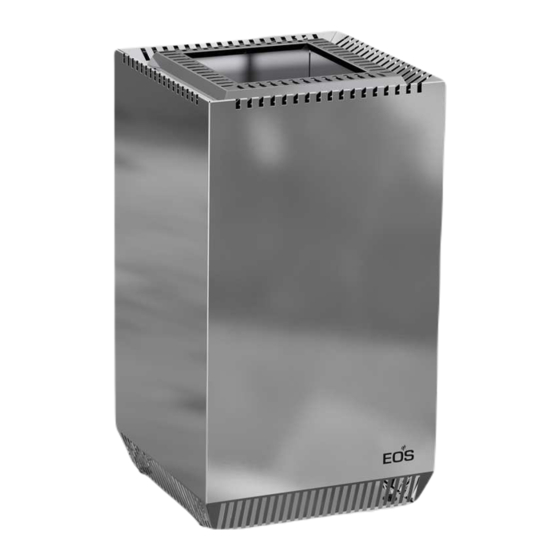

Identification Identification EOS Selection is an electrically heated Finnish sauna heater available in a variety of output capacities. Requirements for operation The heater must be operated together with one control unit. They are not included in the scope of delivery. -
Page 11: Scope Of Delivery, Technical Data
75 x 42 x 42 cm Stone fillung approx. 35-40 kg (stones are optionally available) Power extension required (LSG unit) EmoTec LSG 09R EOS Econ-series, Compac-series, EmoTec -series, Suitable sauna control units EmoStyle-series, EmoTouch-series Leakage current max. 0,75 mA per kW heating power... -
Page 12: Intended Use
This sauna heater is intended solely for the purpose of heating sauna cabins, together with a suit- able control unit. EOS Selection is a floor-standing sauna heater that is suitable for private and commercially used cabins. The heater is not suitable for outdoor use ! -
Page 13: Installation
Installation Installation This chapter describes how to install the sauna heater. Prior to the installation, air inlets and outlets must be installed in the sauna. It may be necessary to mount additional fans in the inlets/outlets. All protective films must be removed from the heater. NOTICE Damage due to incorrect mounting location The heater is not suitable for outdoor use! -
Page 14: Minimum Clearances
Installation Minimum clearances • The minimum height of the sauna cabin must be 190 cm on the inside. (Fig. 1). cabin ceiling 42 cm 4 cm 4 cm ventilation in the lower area required Fig. 1 • Make sure that the horizontal distance between the heater and cabin wall is at least 4 cm (Fig. 2). •... -
Page 15: Air Inlets And Outlets
Installation Air inlets and outlets Air inlets and outlets must be installed in the sauna cabin to ensure a sufficient air circulation and to prevent the heater from overheating. The required size of the air inlets and outlets depends on the heater power, see Technical data. WARNING Fire hazard from overheating The heater can overheat if the air supply is insufficient. - Page 16 Installation Connections • Connects the cable(s) as per connection diagram. The connection diagram is among others at- tached on the inside of the terminal box cover. • The terminal box is placed behind the external cover panel: Undo 2 screws (1.1) at the top cover (1) and lift it. Lift the cover panel (2) and pull it out. Undo 2 fixation screws (3.1) at the terminal cover (3).
-
Page 17: Adjusting The Feet
Installation Adjusting the feet After the heater has been placed at its final position ensure that it stands stable and level, using the 4 adjustable feet which you can adjust in height individually by rotating them clockwise or anticlockwise. Fig. 4 Adjustable foot Ø... -
Page 18: Connections
Connections Connections General instructions for electrical installation Ensure that electrical installation is performed in compliance with the standards and legal norms valid in your country. If a residual current device (RCD) is installed, ensure that there are no other electrical consumers not belonging to the sauna system which are fused via this RCD. -
Page 19: Connection Example For 400V 3N
Connections Connection example for 400V 3N ~ 7,5 - 9,0 kW (*10,5 kW) Saunasteuergerät Saunaofen Control unit Sauna heater Boîtier de commande Poêle de sauna Netz / Mains / Réseau / Saunaofen / Sauna heater Sensor/ Poêle de sauna / Limiter max. -
Page 20: Internal Wiring
Connections Internal wiring 7,5 kW 9,0 kW 9 kW 7,5 kW zum SSG zum SSG control unit control unit mind. 5 x 1,5 mm² mind. 5 x 1,5 mm² 9 kW = 6x 1500 W 7,5 kW = 5x 1500 W 10,5 kW 10,5 kW Twin-circuit connection... -
Page 21: Connection Example For 230V 1N
Connections Connection example for 230V 1N ~ only for 7,5 - 9,0 kW units Saunaofen / sauna heater poêle de sauna / max. 9.0 kW Saunasteuergerät / Control unit / Boîtier de commande / X Y Z U V W N N L1 L2 L3 N W V U N (Gr) -
Page 22: Heating Time Limitation
Connections Heating time limitation The heating time limitation is set either on the control panel or the relay box circuit board, depend- ing on the control unit used. The settings are described in the installation and operating instructions for the control units. Heating time limitation functions All sauna heaters, except for those installed in public saunas, and which must be operated under the supervision of personnel, must be equipped with a timer that complies with IEC and EN stand-... - Page 23 Commissioning Commissioning Before the heater can be commissioned, it must be filled with the sauna stones. The heater is switched on via the control unit. It is operated via the control panel. WARNING Fire hazard Objects placed on the heater could catch fire. Herbs or similar substances used for aroma infusion purposes, which are located near the heater, could catch fire.
-
Page 24: Commissioning
Commissioning Filling stones Ceramic stones behave differently from natural stones when infused. Use only original stones from EOS. Filling stones 1. Thoroughly rinse the stones with running water. 2. Stack the stones loosely in the rock store, leaving sufficient space between them. Stack the stones individually. -
Page 25: Water Splash
Commissioning Water splash Before the first water splash can begin, the cabin must be sufficiently heated. The temperature sensor checks the temperature and, via the control panel, indicates when the desired temperature has been reached. WARNING Fire hazard Incorrectly diluted sauna essences, essential oils or herbs can catch fire. When preparing the water, follow the instructions regarding quantity as specified on the •... -
Page 26: Maintenance
Maintenance Maintenance This sauna heater is made of low-corrosion material. To ensure a long service life, perform regular maintenance and service on your heater. Ensure that openings in the intake area and heat reflectors are never blocked. These can easily become blocked with lint and dust as fresh air is drawn in. -
Page 27: Replacing The Tubular Heating Elements
Maintenance Replacing the heating elements You can replace any heating element separately or the entire heating block. Removing the heating block The heating section is accessible behind the rear wall cover: • WARNING! Ensure that the heater has been disconnected from all power supply lines. Allow the heater to cool down. -
Page 28: Troubleshooting
Maintenance Troubleshooting Error Reason Solution It takes the heater a long Some tubular heating ele- Replace the tubular heating ele- time to heat up the cabin. ments are defective. ment or heating coil. There is not enough space Reshuffle the stones. between the stones. -
Page 29: General Terms And Conditions Of Service
General terms and conditions of service (T&C, Dated 08-2018) I. Scope Unless otherwise agreed in writing for specific instances, these terms and conditions of service shall apply to service operations, including reviewing and remedying complaints. All our existing or future legal relationships shall be governed solely by the following terms and conditions of ser- vice. - Page 30 Complaints in respect of our products shall be reported to the responsible distributor and shall be handled exclusively by said distributor. The manufacturer‘s General Terms and Conditions of Business, in the version available at www. eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service.
-
Page 31: Disposal
Disposal Electrical devices that are no longer needed must be recycled at a recycling station as per EU guideline 2012/19/EU or as per the Electrical and Electronic Equipment Act (ElektroG). Observe local provisions, laws, regulations, standards and directives when disposing of the unit. -
Page 32: Service Adress
Service address EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de www.eos-sauna.com Store this address with the Installation and Operating Instructions in a safe place. Please always provide us with nameplate data, such as model, item number and serial number so we can provide fast and efficient support.
