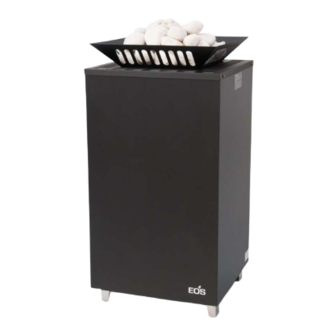

EOS Cubo / Cubo Avantgarde
Made in Germany
Installation and Operating Instructions
Heater for Sauna Cabins
Druck-Nr.:
Stand:
2902 5259
26/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cubo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EOS Cubo

  • Page 1 EOS Cubo / Cubo Avantgarde Heater for Sauna Cabins Installation and Operating Instructions Made in Germany Druck-Nr.: 2902 5259 Stand: 26/23...
  • Page 2: Documentation

    Table title  Title of figure ≤ ≥ Less than or equal to, greater than or equal to Revision history Date Version Description 1 May 2022 01.00 First version EN-2 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 3: Table Of Contents

    Warning signs on the cabin............... EN-31 4 Connections...................... EN-32 General instructions for electrical installation ......EN-32 Connections .................... EN-32 Establishing an electrical connection ..........EN-35 Heating period limitation..............EN-35 EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-3...
  • Page 4 Water splash ....................EN-37 6 Maintenance .....................EN-38 Cleaning ....................EN-38 Sauna stones....................EN-39 Replacing the heating elements ............EN-40 Resetting the safety temperature limiter........EN-45 Troubleshooting..................EN-46 7 General terms and conditions of service ..........EN-48 8 Disposal.......................EN-51 EN-4 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 5: General Safety Instructions

    Fire hazard from overheating Insufficient ventilation can lead to device overheating and fire.  Install air inlets and outlets in the cabin.  Observe the cabin manufacturer’s safety and installation in- structions. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-5...
  • Page 6  The sauna heater is not designed to be installed or set up in an alcove or under a bench or sloping roof unless the sauna heater is specifically designed and approved for this type of installa- tion. EN-6 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 7  The cabin door must open outward and must not have a lock that cannot be opened in the case of failure. We recommend magnetic or spring locks. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-7...
  • Page 8: Operator Instruction

     Inspect the sauna cabin prior to each use.  If you switch on the heater using pre-set timers or remotely, at- tach a protective cover to the heater or install a suitable safety system. EN-8 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 9  Leave the sauna cabin if your body responds abnormally to the heat or if you do not feel well.  Avoid alcohol, drugs, and medications when you are using the sauna. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-9...
  • Page 10  Children and persons who have not received proper instruction must not clean or service the system. EN-10 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 11: Heater And Cabin Labels

    Location of control unit in a dry area / Emplacement de l’unité de commande dans une zone sèche EmoTec USA/CAN D/H Print no. 2934 5298 / 14.22  Example: EOS Cubo EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-11...
  • Page 12 Do Not Operate Unless Guard Is In Place. 29344837_F38.1_ 20016970 29344841_F38.3_20016094 AVERTISSEMENT AVERTISSEMENT RÉDUIRE LE RISQUE D’ÉLECTROCUTION RÉDUIRE LE RISQUE DE ÉLECTROCUTION ET BRÛLURES 29345263_F38.1 / 2001xxxx  Example: EOS Cubo EN-12 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 13 Séjourner trop longtemps dans une 2. Surveillez les enfants à tout moment. ceinte, en mauvaise santé ou sous traitement médical. entraîner une perte de conscience. 29345267_F38.4 / 2001xxxx EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-13...
  • Page 14: Safety Levels

    Local regulations also apply to the installation and operation of heating, sauna, and steam room systems. EN-14 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 15: Identification

    Identification Identification The EOS Cubo/Cubo Avantgarde is an electrically heated sauna heater for use in Finnish mode, available in a variety of output capacities. Requirements for operation The heater is operated using the following control unit:  EOS EmoTec D/H USA/CAN The control unit is not included in the scope of delivery.
  • Page 16: Scope Of Delivery

    A Cubo Avantgarde sauna heater C Installation instructions with rock store frame D Quartz stones for the Cubo Avantgarde, B Cubo sauna heater ca. 10 kg / ~22 lbs  Scope of delivery EN-16 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 17: Technical Data

    356°F. When using 4 to 6-core cables, the type of AWG cable specified in the table increases by one unit. Example: AWG 12 > AWG 10. All line cross-section specifications are the minimum cross-sections for the copper line. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-17...
  • Page 18 5.8–7.9 sq. m x 1.90 m 62.4–85 sq. ft x 6.2 ft 12.0 kW 7.4–9.5 sq. m x 1.90 m 35 x 7 cm 79.7–102.3 sq. ft x 6.2 ft 13.8 x 2.4” EN-18 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 19: Intended Use

     Operating, service and maintenance requirements are not observed.  The unit is operated by children or persons with reduced mental capac- ity or by persons who have not been thoroughly instructed in its use. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-19...
  • Page 20  The first time the cabin is heated, you may notice a slight odor resulting from the evaporation of consumables used in the manufacturing pro- cesses. Air out your cabin once it has been heated and before using the sauna. EN-20 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 21: Installation

    The clearance distances between the heater and flammable material (wood wall, sauna bench, etc.) must be observed as shown below.  Dimensions and clearances for Cubo,  EN-22  Dimensions and clearances for Cubo Avantgarde,  EN-23 EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-21...
  • Page 22 40 cm 4 cm Dimensions in ft/in. 1.6 " 1.3 ft " 1.6 " 1.6 " 1.3 ft 1.6 " A Heater guard rail B Air inlet  Cubo EN-22 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 23 6 cm 6 cm 6 cm 40 cm Dimensions in ft/in. 2.4 " 2.4 " 2.4 " 1.3 ft A Heater guard rail B Air inlet  Cubo Avantgarde EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-23...
  • Page 24: Temperature Sensor

    For installation information, see the installation instructions for EmoTec D/H USA/CAN. Connect the sensor as shown in the circuit diagram for the respective con- trol unit. EN-24 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 25: Air Inlets And Outlets

    The radius for laying the cables around a corner must equal a mini- mum of 100 mm/3.93701 in. See the connection diagrams in 4.2 Connections,  EN-32. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-25...
  • Page 26: Heater Guard Rail

    CAUTION! The heater weighs a min. of 20 kg/44 lbs. Two people should always move the heater. Unpack the heater and remove all transport locks. Place the heater in the cabin. EN-26 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 27 Slide the design cover down slightly and remove it. Unscrew the screws (B) on the terminal box and remove the cover (A). A Terminal box cover B Screws EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-27...
  • Page 28 A Screws on the cover of the safety B Cable feed opening temperature limiter  The sheath must extend from the cabin wall to the heater. EN-28 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 29  Leave sufficient cable inside the sauna to allow the heater to be moved away from the wall for maintenance. Connect all cables to the control unit in accordance with its installation instructions. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-29...
  • Page 30: Adding Stones

    50–100 mm. Place layers of nat- ural stones in small piles around the rock store. In addition to normal sauna stones, the Cubo Avantgarde also comes with a frame that can be filled with approx. 10 kg/22 lbs. quartz stones. The rounded quartz stones look beautifully elegant.
  • Page 31: Warning Signs On The Cabin

    Warning signs on the cabin  Attaching warning signs Attach warning signs to the outside of the cabin so that they are clearly visible at eye level.  See  Cabin,  EN-13 EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-31...
  • Page 32: Connections

    The sauna control unit and the heater must be connected as shown in the circuit diagrams. Please observe the installation and operating instructions for the control unit and the sticker on connecting in the heater. See also 2.4 Technische Daten,  DE-19. EN-32 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 33: Connections

    7,5 kW = 6x 1250 W 9,0 kW = 6x 1500 W AWG 12 V1 V2 W1 W2 AWG 12 AWG 12 AWG 12  Internal wiring: 6–9 kW EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-33...
  • Page 34 12,0 kW = 6x 2000 W AWG 12 AWG 12 V1 V2 W1 W2 U1 V1 V2 W1 W2 U1 AWG 12 AWG 12  Internal wiring: 10.5–12 kW EN-34 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 35: Establishing An Electrical Connection

    Heating period limitation The control unit ensures that the heating period limitation is observed. Refer to the installation and operating instructions of the control unit. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-35...
  • Page 36: Commissioning

     Switching the system on Switch the sauna control unit on.  The heater is switched on via the control unit. Use the control unit to select a suitable program. EN-36 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 37: Water Splash

    0.4 cups of water per m³ cabin volume should be vaporized. After each water splash, wait approx. 10 minutes before starting the next one. This time is needed for the sauna stones to reheat. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-37...
  • Page 38: Maintenance

    CAUTION Risk of injury from sharp edges  Use suitable personal protective equipment, e.g., gloves, when cleaning parts with sharp edges. Clean the heater only with household cleaners. EN-38 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 39: Sauna Stones

     The stones must not exert excessive pressure on the heating ele- ments. Cubo Avantgarde only: Attach the rock store frame and insert the quartz stones   Fitting the rock store frame (Cubo Avantgarde only),  EN-31...
  • Page 40: Replacing The Heating Elements

    Switch off the fuses to disconnect the heater from the mains supply. Remove the heater guard rail. CAUTION! Allow the heater to cool sufficiently before starting work. Remove the stones. EN-40 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 41 A Terminal box cover B Screws Pull the heater forward and carefully place it on its back.  You can place foil or a cloth underneath the heater to protect it. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-41...
  • Page 42 Maintenance Loosen the 4 self-tapping screws (A) on the base (B) and remove it. A Self-tapping screws B Base Pull out the heating coil. EN-42 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 43 Secure the heating element with the lock washers and nuts. Plug in the flat plug.  Check the wiring on all heating elements before reassembling the heater and standing it up. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-43...
  • Page 44 Insert the stones together with the rock store frame and quartz stones if applicable.  Check the stones as you work and replace any damaged ones. Switch on the fuses for the heater to connect it to the mains supply. EN-44 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 45: Resetting The Safety Temperature Limiter

     If the pin does not click into place, the heater has not cooled down fully. Re-install the black cap and tighten it. Use the control unit to switch on the heater. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-45...
  • Page 46: Troubleshooting

    The heater is very hot There is not enough Reshuffle the stones. See  Reshuffling the sauna but cannot distribute space between the stones,  EN-39 the heat throughout stones. the cabin. EN-46 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 47 The position of the tem- Check the position of the perature sensor in the temperature sensor and cabin is not optimal. adjust as needed. See 3.1.2 Temperature sensor,  EN-24. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-47...
  • Page 48: General Terms And Conditions Of Service

    The customer shall provide assistance free of charge to the manufacturer in rendering services. In the case of a warranty claim, the manufacturer shall provide spare parts necessary for servicing free of charge. EN-48 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 49  In the case of warranty claims, the serial and article numbers must be provided, together with the unit designation and a meaningful descrip- tion of the error. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-49...
  • Page 50 The manufacturer’s General Terms and Conditions of Business, in the ver- sion available at www.eos-sauna.com/agb, shall apply in addition to the foregoing terms and conditions of service. EN-50 Installation and Operating Instructions - EOS Cubo / Cubo Avantgarde...
  • Page 51: Disposal

    The following materials are used in the packaging:  Used paper, cardboard  Plastic foil Electronic waste Electronic waste should be disposed of at a designated local collection point for electronic waste. EOS Cubo / Cubo Avantgarde - Installation and Operating Instructions EN-51...
  • Page 52 Store this address with the installation and operating instructions in a safe place. Please always provide us with nameplate data, such as model, item num- ber and serial number so we can provide fast and efficient support. Date of sale Stamp/retailer signature: © EOS Saunatechnik GmbH - All rights reserved.
