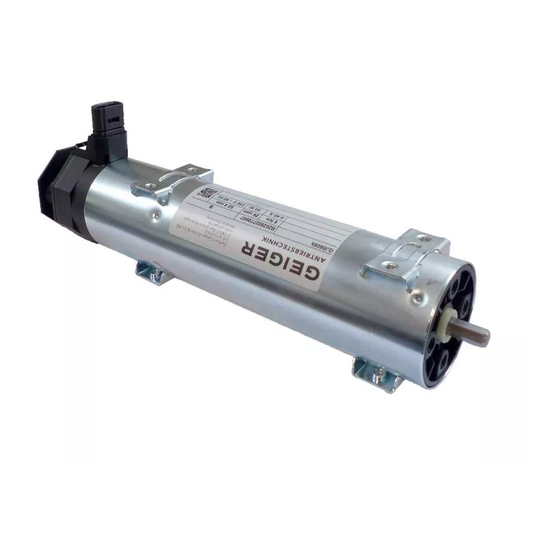

GEIGER SOLIDline GJ56 Series Setting Instructions

Setting instructions

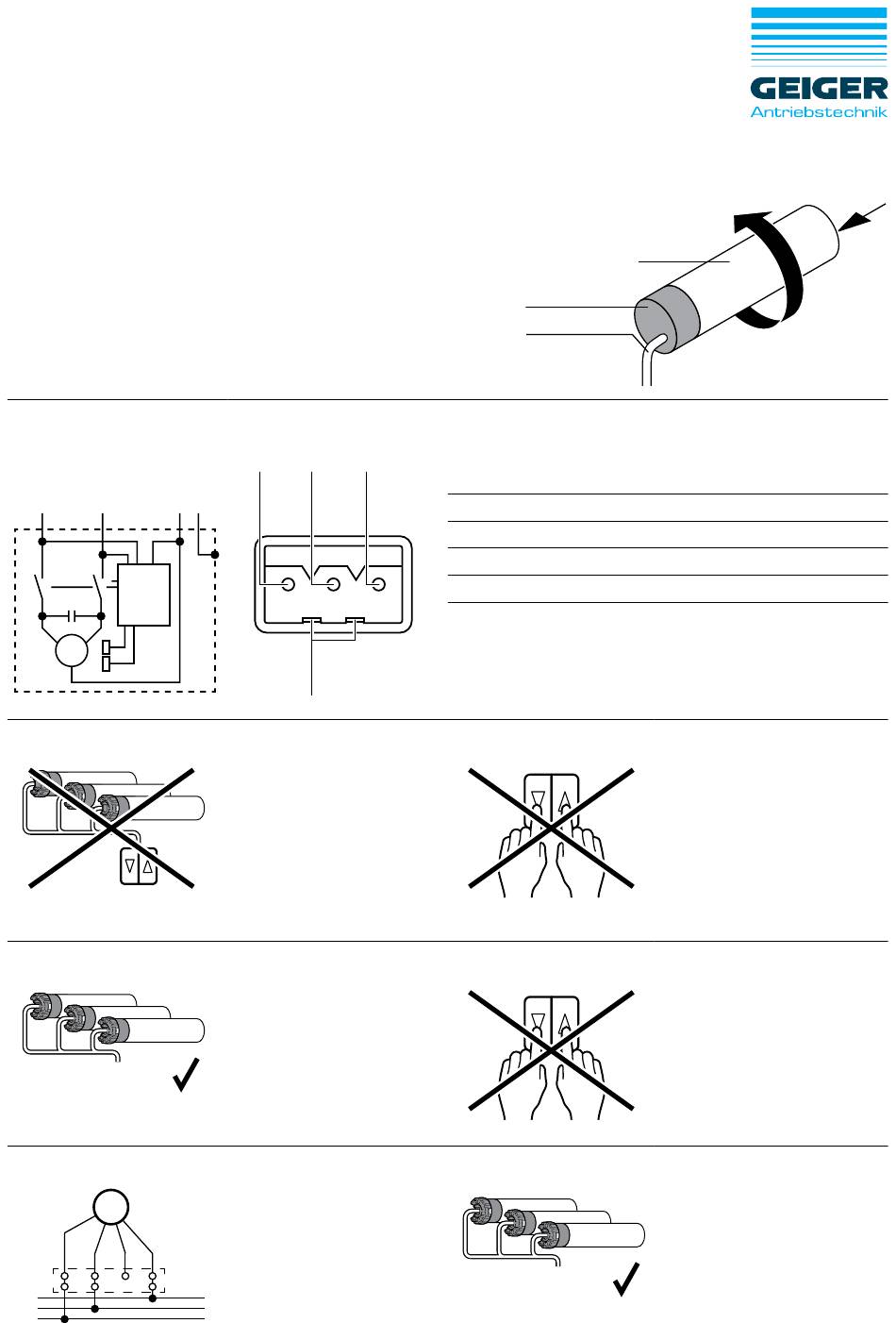

SOLIDline motors / Connections
Running direction
The allocation of the running directions
UP/ DOWN to the connecting cables depends
on the mounting direction of the motor. That is
why it might be better to refer to right and left
directions instead of UP/DOWN directions.
Circuit diagram
motor
Links Rechts
Left Right
A gauche A droite N PE
Sensor
M
Capteur
2x
SOLIDline motors with mechanical end stop (Touch)
SOLIDline motors with electronic end stop (e.g. Easy)
Netz 230V/50Hz
Power supply 230V/50Hz
Courant 230V/50Hz
SOLIDline radio-controlled motors (e.g. VariousWireless)
grün-gelb
M
green-yellow
~
vert-jaune
schwarz
black
blau
noir
blue
bleu
L1
N
PE
Wiring
blau braun schwarz
blue brown black
bleu brun noir
1 2 3
grün-gelb
green-yellow
vert-jaune
A parallel connection is
only possible with a cut-off
relay. Otherwise the motor
would be irreparably
damaged.
Do not use any switch that
allows a simultaneous UP
and DOWN command.
Please consider a switch-
over time of 500ms for
BUS systems.
The brown wire of the
connecting cable is not
needed in case of radio-
controlled motors.
Elektronik
Electronic
Electronique
Kabel 4-adrig
4-wire cable
Câble 4 fils
Assignment
Color of cable
Green-yellow
Blue
Brown
Black
Netz 230V/50Hz
Power supply 230V/50Hz
Courant 230V/50Hz
Blickrichtung
Viewing direction
Perspective
Motor
Moteur
Laufrichtung Rechts
Running direction right
Marche à droite
Function
Protective conductor
Neutral conductor
Running direction: right
Running direction: left
Never actuate simul-
taneously the UP and
DOWN keys because this
would damage the motor
irreparably.
Please consider a switch-
over time of 500ms for
BUS systems.
Do not use any switch that
allows a simultaneous UP
and DOWN command.
Please consider a switch-
over time of 500ms for
BUS systems.
Several motors can be
connected in parallel. In
this case the maximum
load of the switching unit
must not be exceeded.
