Page 1: Table Of Contents
Table of Contents Important Information..............- 2 - Safety Precautions..............- 2 - Special Notice:................. - 2 - Introduction..................- 3 - Product Details................. - 3 - Specification................- 4 - Product Features:..............- 5 - Packing List..............- 7 - Machine Information..............- 7 - Transmitter(TX).............. -
Page 2: Important Information
Important Information Please take the time to read this user manual before use the product, it contains all notes and important information regarding your wireless HD video transmission system. Our limited warranty applies when the products is handled properly for intended use, in accordance with its operating instruction. -
Page 3: Introduction

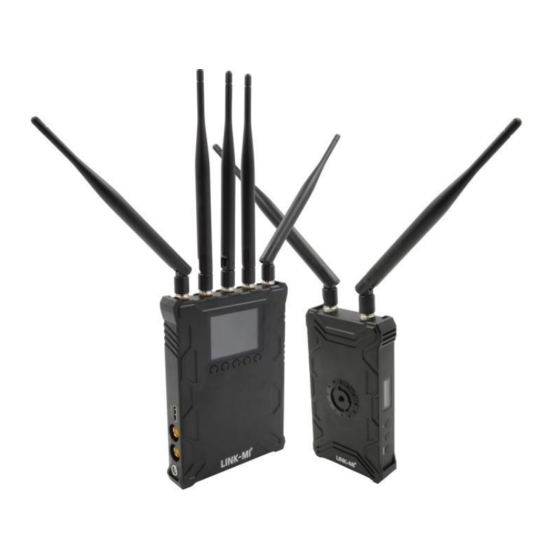

Introduction Product Details LINK-MI LM-WX700 is main consist of one transmitter(TX) and one receiver (RX). - 3 -... -
Page 4: Specification
Specification ITEM SPECIFICATION 5.1-5.9(GHz)*Subject different Frequency regulations in different regions. Bandwidth 40MHz 1080p 23.98/24/25/30/50/60 1080psf 23.98/24/25 Video Formats 1080i 50/59.94/60 Supported 720p 50/59.94/60 576p 576i 480p 480i Audio Formats PCM, DTS-HD, Dolby TrueHD Supported Transmission Range >2296FT(Line of sight) Transmitter Antenna External Antenna ×... -
Page 5: Product Features
SDI Dual Output; HDMI Output; Mini USB; Functional Interface LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF Locating Structure 1/4” Hot-shoe connection Wireless Channel Info; SDI/HDMI Input Info; OLED Display Signal Status; Power Info Working Voltage 9-18V by DC input, SONY V-mount battery Power Consumption 7-8W Net Weight(with... - Page 6 Remark: Fix the two antennas to the transmitter and arrange them to be a right angle as below figure to get better performance. On transmitter side, when both SDI and HDMI source are inputted, the transmitter will automatically select the SDI source Fix the five antennas to receiver and arrange them to a right angle as figure to get better performance.
-
Page 7: Packing List
Connection Packing List: Transmitter TX 1pcs Receiver RX 1pcs 7” Articulating Arm 1pcs SDI Cable 2pcs Hot-shoe Stand 1pcs DC Convert Cable 2pcs 5G Antenna 8pcs Flight Case 1pcs Outer Packing Cartons 1pcs - 7 -... -
Page 8: Machine Information
Machine Information Transmitter(TX) - 8 -... - Page 9 STRUCTURE OLED Display Displays information of channel, Video status and battery capacity. UP Button Channel + DOWN Button Channel - MENU Button Unlock the channel and Confirm the Selection Power ON/OFF Turn on or OFF the transmitter SDI IN Connect to SDI Video Source SDI OUT(Loop Through) Connect to the your monitor or other HDMI IN...
-
Page 10: Receiver(Rx)
Receiver(RX) - 10 -... - Page 11 STRUCTURE Antenna Connector x5 RPSMA connectors for antennas OLED Display Displays information of channel, signal strength and battery capacity. MENU Button Unlock and Confirm the Selection LEFT Button Channel - RIGHT/DOWN Button Channel + V+/UP Button Volume +, not use on this version V-/DOWN Button Volume -, not use on this version BAT-OUT...
-
Page 12: Uses Your Equipment
Uses your equipment For Transmitter side Connect your SDI or HDMI video source to the “SDI IN”/”HDMI IN” port of transmitter (when both SDI and HDMI video are inputted to the transmitter, it will auto select the SDI video for transmission). If need, you can connect the SDI out(loop through) to other equipment as well Fix the antenna Connect DC power via power cable or insert F970 battery to the transmitter... -
Page 13: Trouble-Shooting
Trouble-shooting If the receiver failed to output the video correctly, the possible causes are as below, please find the solution from following chart: TROUBLES&POSSIBLE REASONS: SOLUTION: Displaying “Waiting for connection…” for a long time Transmitter is not powered up. Power on the transmitter. Transmitter or receiver is not placed correctly. -
Page 14: Fcc Statement
Cautions! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. SHENZHEN LINK-MI TECHNOLOGY CO., LTD WWW.LINK-MI.COM - 14 -...
