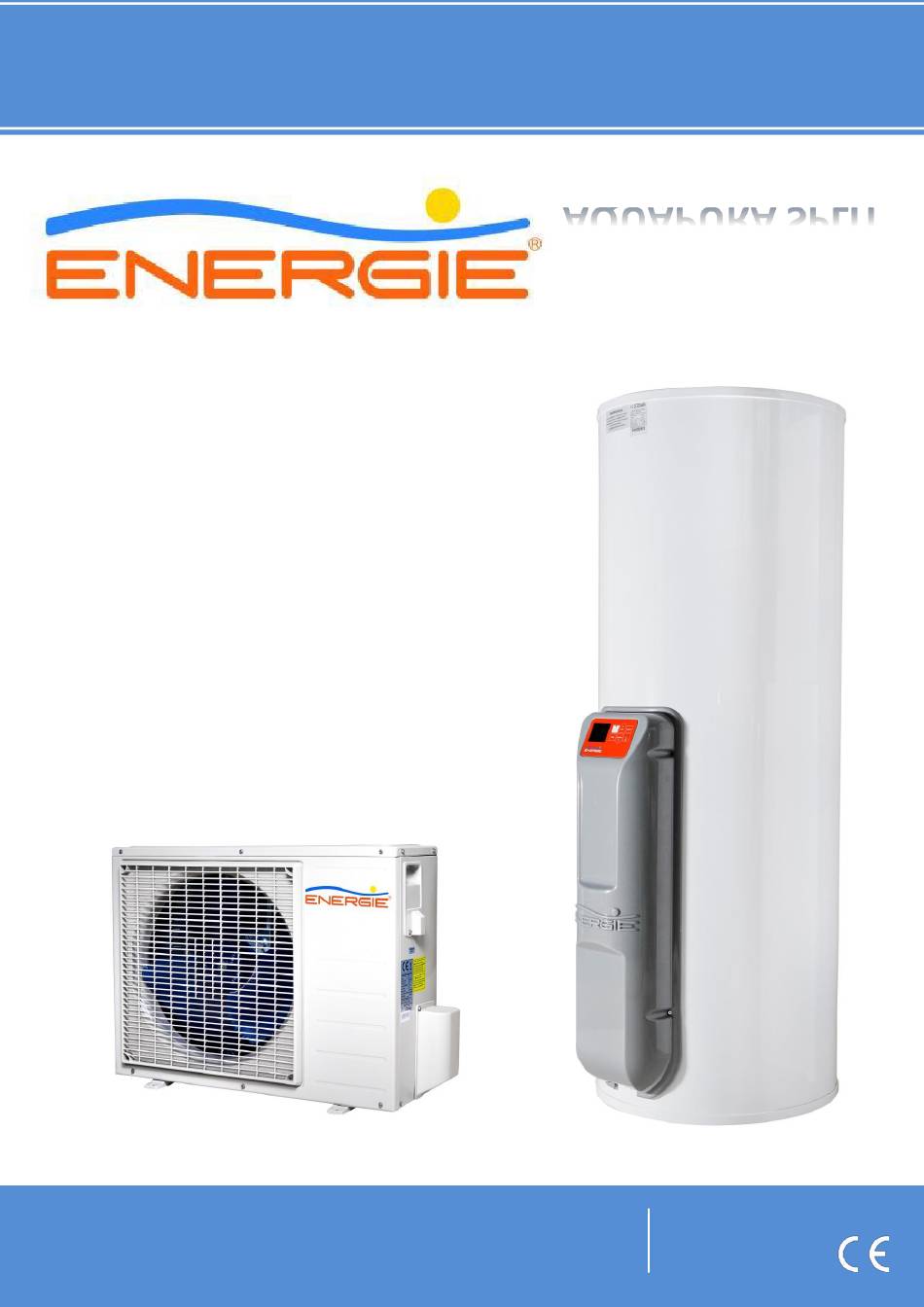

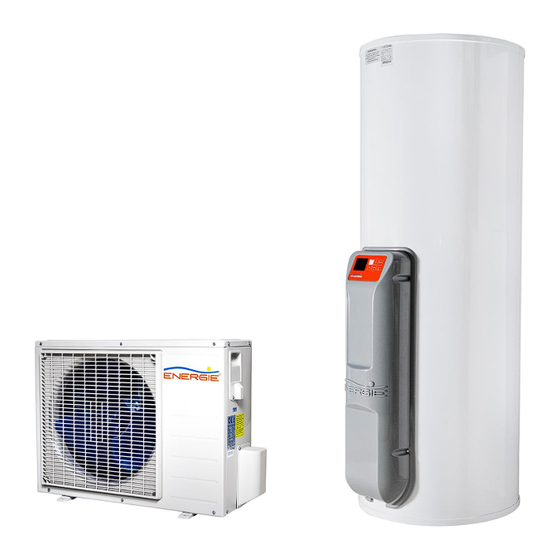

- Page 1 TECHNICAL MANUAL AQUAPURA SPLIT 200esm | 250esm 250i | 300i 250ix | 300ix Review: 3 Directives European Certification Version: 0 2006/95/CE EN 60335-1 Date: 26/Sep/2014 EN 60335-2-21 EN 60335-2-40...
- Page 2 AquaPura Split Technical Manual Esteemed Client, We would like to thank you for your choice when you acquired an equipment for sanitary water heating. The heat-pump AquaPura Split will surely meet all your expectations and provide many years of comfort with a maximum power saving. Our organization dedicates much time, energy and economic resources in order to develop innovations that will promote power saving in our products.
- Page 3 AquaPura Split Technical Manual INDEX Important .............................. 5 1.1. Symbols ............................5 1.2. Pre-installation Information ......................5 1.3. Safety Information ......................... 5 Package ..............................7 2.1. Contents ............................7 2.2. Transport............................8 Specifications............................9 3.1. Running Principle ........................... 9 3.2. Technical Features........................10 3.3.
- Page 4 AquaPura Split Technical Manual 4.2.5. Checking good running condition..................22 4.3. Hydraulic Couplings ........................22 4.4. Electric Connections ........................22 First Use ............................... 25 5.1. Filling the tank ..........................25 5.2. Start-up of the System ........................25 5.3. Complementary Gas Load ......................26 System Operation ..........................
-
Page 5: Pre-Installation Information
AquaPura Split Technical Manual AquaPura Split will only operate if the storage 1. Important water heater is filled with water. 1.1. Symbols These assembly instructions must be read before running the equipment! Every process that the supplier believes to be conducive to harmful danger and/or material damage, will be signalled with a The heater-pump AquaPura Split is only for... - Page 6 AquaPura Split Technical Manual Make sure all hydraulic couplings are thought out with caution to prevent the risk of burns and projection of material; watertight before connecting equipment to the power supply. Refrigeration Gases Maintenance of the equipment: The cooling fluid employed in the whole ...
- Page 7 AquaPura Split Technical Manual 2. Package 2.1. Contents The equipment is delivered in two packages, each over a wooden pallet, with protection units and wrapped in cardboard. The package contains: An external unit (Heater-Pump) and its components: II. Paste for sealing the space between the piping sleeve and the wall III.
- Page 8 AquaPura Split Technical Manual 2.2. Transport Transporting the equipment must be carried out with an inclination below 45º; The equipment must be raised and lowered to avoid impact that could damage material; Make sure the belts and/or WARNING transportation straps do not damage the material;...
-
Page 9: Specifications
AquaPura Split Technical Manual 1-2 When it crosses the evaporator, the cooling 3. Specifications fluid collects the heat from the environmental 3.1. Running Principle heat. heater-pump AquaPura Split employs 2-3 The compressor aspirates and compresses the environmental air to heat sanitary water. cooling fluid and raises the temperature to a quite high degree. -
Page 10: Technical Features
AquaPura Split Technical Manual 3.2. Technical Features Unit 250 i 300i 200esm 250esm 250ix 300ix Dry weight Volume Type of Internal Protection Stainless steel Enamel Stainless steel Cathodic Protection Magnesium Anode Insulation Polyurethane 3/4" Male | 3/4" Male |1/2" Female | 3/4" Male | Hydraulic Connections Pol. -
Page 11: Main Components
AquaPura Split Technical Manual 3.3. Main Components 3.3.1. Internal Unit – Storage Water Heater Adjustable foot “Split” hood Top Lid Condenser / Serpentine Thermostat Resistance Display Magnesium Anode External Plate [10] Polyurethane Insulation [11] Cold water inlet + Bipolar Socket [12] Recirculation [13] TPR Valve [14] Hot water outlet + bipolar Socket... - Page 12 AquaPura Split Technical Manual 3.3.2. External Unit [16] Top lid [17] Fan [18] Grill [19] Evaporator [20] Expanding Valve [21] Unit box [22] Compressor [23] 3 way valve (Aspiration) [24] 2 way valve (Liquid) [25] Seal with features (split) Model Power supply Average power consumption Maximum power consumption...
-
Page 13: Dimensions (Mm)
AquaPura Split Technical Manual 3.4. Dimensions (mm) External unit Internal unit - Storage heater 250 i 1326 1454 1530 ------ ------ 300 i 1543 1671 1750 ------ ------ 200 esm 1146 1274 1330 ------ ------ 250 esm 1326 1454 1530 ------ ------ 250 ix... -
Page 14: Safety And Control Devices
AquaPura Split Technical Manual 3.5. Safety and Control Devices from exceeding 10 bar. If any of these figures is reached, the valve will open and release water until the temperature and pressure inside the 3.5.1. Pressure gauge of high/low storage water heater are within the calibrated pressure range. - Page 15 AquaPura Split Technical Manual 3.5.6. Dielectric Socket Your AquaPura Split equipment contains two dielectrics sockets. These sockets prevent electron exchange between the pipes of water inlet and outlet and the storage water heater itself. This is another way to create protection against corrosion that could take place between these points (A and B).
-
Page 16: Installation
AquaPura Split Technical Manual 3.5.7. Expansion tank 3.5.9. Pressure Throttle Valve The expansion tank is a device whose purpose is The pressure throttle valve must always be to compensate the increase in water volume due installed upstream from the safety device, and to temperature rise. - Page 17 AquaPura Split Technical Manual such way that it facilitates the cleaning of Inside the house condensates Suitable On the other side of the wall For a correct disposal of condensates, always placement where the external unit is use the accessories that have been supplied installed with your equipment ...
- Page 18 AquaPura Split Technical Manual 4.2. Coolant Couplings The cooling fluid couplings must be done by a qualified technician, with professional certificate with abilities for this purpose. DANGER The external unit holds a pre-load of fluid R134a. The cooling fluid joints must be thermally insulated in order to prevent burns and to ensure an optimal system performance.
- Page 19 AquaPura Split Technical Manual Procedure to connect the cooling couplings: d) Flange the pipe with the appropriate tool shaping a conic edge, make sure that there a) Prepare the copper pipe, removing the are no rough edges or imperfections and protective caps from the extremities.
- Page 20 AquaPura Split Technical Manual f) Tighten with a wrench, apply a torque in h) Insulate all connections. conformity with the diameter of the pipe used. Insufficient torque will cause leaks of cooling fluid. An excessive tightening of the coupling will damage the edge of the pipe and cause leaks.
- Page 21 AquaPura Split Technical Manual 4.2.4. Load of Complementary Cooling Fluid Closed Valves Your unit comes with a pre-load for connections up to 5 m. Greater distances will diminish the performance of your equipment. The warranty does not apply to a distance above what has been A –...
-
Page 22: Electric Connections
AquaPura Split Technical Manual 4.2.5. Checking good running condition the standard EN 1487:2002, maximum pressure 7 bar (0.7 MPa) To check whether your equipment is running c) Besides this device, other components will correctly, start it and wait 20-30 minutes and then be necessary to ensure the interruption of check these conditions: the hydraulic load, installed according to... - Page 23 AquaPura Split Technical Manual b) The thermodynamic equipment must be The installation includes: connected to a monophase voltage (230 Bipolar circuit-breaker with connection V AC/50Hz) cable with section equal to or exceeding c) The thermodynamic equipment must be 2.5 mm always plugged in to ensure there is hot ...
- Page 24 AquaPura Split Technical Manual Electrical schematics Captions: Q1 – Differential circuit-breaker of 30 mA. D1 – Circuit-breaker of 16A. R1 – Electrical resistance S1 – Water temperature probe S2 – Water temperature probe (optional) S3 – External unit temperature probe (NTC 1K 25ºC) TB –...
-
Page 25: First Use
AquaPura Split Technical Manual 5. First Use 5.1. Filling the tank a) Open hot water tap(s). b) Open tap/cold water section valve next to safety device (this procedure also serves the purpose of checking whether the discharge valve is shut). System is shut off (OFF) Press key ON/OFF c) Once there is a flow from the hot water tap(s), shut it. - Page 26 AquaPura Split Technical Manual To reinitiate the appliance, shut it off and switch on again using the key ON/OFF 5.3. Complementary Gas Load To carry out a gas load the installer must access Menu and follow these instructions: Select Access Levels Insert password.
-
Page 27: System Operation
AquaPura Split Technical Manual 6. System Operation 6.1. Control Panel Split control panel is simple and intuitive. It enables the configuration of several operating parameters according to operating mode selected by the user. It comprises six command keys (ON / OFF / CANCEL, MENU, COMP ▲, E-HEATER ▼, DISINFECT and OK / LOCK) that enable checking the running of the equipment, consult and change parameters. - Page 28 AquaPura Split Technical Manual 6.3. Description Time Date Operating Mode Left to right, respectively: Timer Operating Order Disinfect ON/ OK/ OFF Defrost Error Alarm Holidays Signalling an error From left to right: Active compressor ...
-
Page 29: Operating Modes
AquaPura Split Technical Manual 6.5. Operating Modes In order to change the operating mode you do not need to reinitiate The Split is programmed to work in 3 running the equipment modes, ECO, AUTO and BOOST, which are summarized in this table: 6.5.1. -
Page 30: Extra Functions
AquaPura Split Technical Manual Heater-Pump. This mode enables the user to day of holidays. On the last day, the equipment obtain hot water in less time. will begin the Disinfect function to eliminate any formation of germs that appeared in the storage The user can change the operating water heater during the time you were absent. -
Page 31: System Menu
AquaPura Split Technical Manual After access use the keys COMP ▲ and E-HEATER 7. System Menu ▼, to navigate the menus and submenus. In order to confirm values / parameters press the Every time it becomes mecessary to alter or set key OK/LOCK. - Page 32 AquaPura Split Technical Manual RE - Contact N.O Enable the output of the eletric heater Elist - List the errors occurred Errors Ereset - Clears the list of errors Manufacturer Level Restore Changes all the parameters configured for the parameters defined by Values the manufacturer.
-
Page 33: Troubleshooting
AquaPura Split Technical Manual 11. Troubleshooting PROBLEM POSSIBLE CAUSES HOW TO PROCEED Check the power supply Power supply failure Failure in Check the corresponding circuit breaker electronic Check the integrity of the electronic board’s board Cable damaged or disconnected electric circuit Equipment is switched off Press the key ON/OFF. -
Page 34: System Maintenance
AquaPura Split Technical Manual Low hot water Loss or clogging of hydraulic circuit Check the condition of the hydraulic circuit flow rate Absence or incorrect dimensioning of Installation or correct dimensioning of expansion tank (if leak is not expansion tank continuous) Loss of water Check the throttle valve (if there is one... -
Page 35: Safety Thermostat
AquaPura Split Technical Manual The internal shielding of the tank will ensure an The purpose of this device is to effective protection against corrosion contributing release water of high temperature to a water quality within the parameters and pressure, if necessary. Thus, make sure that the water released considered normal. - Page 36 AquaPura Split Technical Manual 12.5. Empty the Storage Water Heater Remember that the water in the storage water heater is at high temperature, so there is an associated risk of burns. Before emptying the storage water heater allow the water DANGER temperature to drop to a level that will avoid burns.
- Page 37 AquaPura Split Technical Manual Notes _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________...
-
Page 38: Warranty
AquaPura Split Technical Manual Warranty This warranty covers all defects to the confirmed materials, excluding the payment of any type of personal damage indemnity caused directly or indirectly by the materials. The periods indicated below start from the purchase date of the apparatus, 6 months at the latest from the leaving date from our storage warehouses. - Page 39 AquaPura Split Technical Manual Zona Industrial de Laúndos, Lote 48 Energie - Energia Solar Termodinâmica, LDA 4570-311 Laúndos – Póvoa de Varzim – Portugal Tel: (+351) 252 600 230 Fax: (+351) 252 600 239 Email: geral@energie.pt Web: www.energie.pt...
