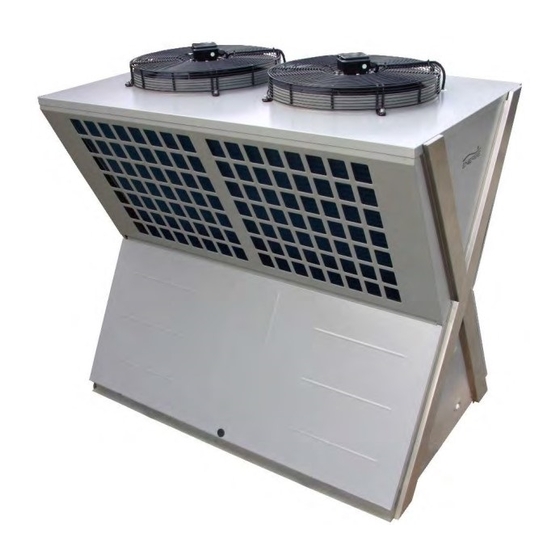

- Page 1 ENERGIE AIR WATER HEAT PUMP UP TO 80ºC Installation Manual EN 60335-1; Version: 1 EN 60335-2-40. Date: 24/06/2019...
- Page 2 Heat Pump, resulting in electrical shock, scald injury and/or property damage. Installer: Before leaving the premises, review this manual to be sure the Heat Pump has been installed. Start or operate the unit. Models: Aquapura X30...
-
Page 3: Table Of Contents
Installation ..............14 14.1. Location of the unit ..............14 14.2. Condensate lines ..............15 14.3. Water loop connection ............15 14.4. Water filter................16 14.5. Glycol (%) ................16 14.6. Temperature probes (temperature vs KΩ) ......17 ENERGIE Page | i... - Page 4 Central Heating with Buffer Tank .......... 32 19.3 Domestic Hot Water (DHW) ..........33 19.4 Domestic Hot Water (DHW) with Buffer Tank ....... 33 19.5 Domestic Hot Water (modular installation) ......33 Appendix 4 – Warranty ..........34 ENERGIE Page | 2...
- Page 5 Appendix 5 – Warranty Registration Card ..... 36 ENERGIE Page | 3...
-
Page 6: Safety Information (Cautions And Warnings)
ATTENTION Icon Notes Meaning Prohibition. What is prohibited will be nearby this icon Compulsory implement. The listed action need to be taken. ATTENTION (include WARNING) Please pay attention to what is indicated. ENERGIE Page | 4... - Page 7 Improper movement or repair on the unit will lead Entrust to water leakage, electrical shock, injury or fire. It is prohibited to repair the unit by the user himself, otherwise electrical shock or fire may occur. Prohibit ENERGIE Page | 5...
-
Page 8: Indications
Do not use any cleaning agents containing sand, soda, acid or chloride as these may damage the surface. Prohibition Indications This manual came with all the equipment and contains important instructions that should be followed during installation. ENERGIE Page | 6... -
Page 9: Introduction
Do the installation in accordance with the standards and requirements given by the manufacturer. Do the initial startup of the equipment and check all control points. • • Explain to the user how to do the installation and how to use the equipment. ENERGIE Page | 7... -
Page 10: Propose Of The Heat Pump
Easy operation Heat pump is controlled and protected by micro computer based controller; the desired water temperature is set according to real requirement. System protection program will guarantee the unit to be running at hard environment. ENERGIE Page | 8... -
Page 11: Principle Of Operation
The Heat Pump is packed in a cardboard box without a bottom, and is secured to a wood pallet with plastic strapping. When the heat pump is transported please keep the unit stand up, otherwise the inner parts of the device may be damaged. ENERGIE Page | 9... -
Page 12: Reception Check
Carefully inspect the all components of the equipment receive, to make sure that the equipment has not been damaged during transport. Verify that all parts ordered were received as specified and if the type, size and voltage of the unit are correct. ENERGIE Page | 10... -
Page 13: Dimension
11. Dimension Saída água 1’’1/4 Entrada água 1’’1/4 Dreno ½’’ ENERGIE Page | 11... -
Page 14: Performance
12. Performance 12.1 Heating Capacity (*) 12.2 Electrical Power (*) 12.3 Coefficient of performance (*) Heating condition (EN14511); water temperature 30/35ºC; backup system OFF. ENERGIE Page | 12... -
Page 15: Specifications Data
13. Specifications data units Aquapura X30 Equipment Heat pump Air-Water Model Aquapura X30 Refrigerant type R134a HEATING * Maximum heating capacity 40,00 kW * ** Heating capacity 26,50 kW ** ** COP *** Heating capacity 32,00 *** COP 3,48 DHW Production... -
Page 16: Installation
The rubber feet supplied with the unit must be used. Alternatively, there are proprietary unit fixings available that include an adjustable steel frame and legs with rubber mounting pads. The unit must be fixed, stable and kept vertical during operation. ENERGIE Page | 14... -
Page 17: Condensate Lines
Drainage and air vent need not to be insulated, in order to maintain. ATTENTION The hydraulic connection should be installed according to the local legal laws and regulations as well as the qualified professional. ENERGIE Page | 15... -
Page 18: Water Filter
Note 2; The filter should be kept cleaned and inspected periodically to maintain your condition, cleanliness and ensuring the proper functioning of 14.5. Glycol (%) To determinate the percentage of glycol required, see below diagram, can take in consideration the air temperature. Glycol [%] ENERGIE Page | 16... -
Page 19: Temperature Probes (Temperature Vs Kω)
If an additional auxiliary heater is need to be controlled by the heat • pump controller, the relay (or power) of the aux-heater must be connected to the relevant output of the controller. ENERGIE Page | 17... -
Page 20: Room Thermostat Installation
European Standard EN60335-1 and considering a cable length of 10 meters. Select the main switches according to the next table: Max. Model Power source (no. current poles/A/mA) AP X30 400V~/3F+N/50Hz 40 A 4/40/30 CB – Circuit breaker; ELB – Earth leakage breaker ENERGIE Page | 18... -
Page 21: Installation (Typical Application)
15.2. Domestic Hot Water IMPORTANT: This diagram shows only the core components of the application. There are many components that can be installed such as pressure and water temperature gauges, drainage, etc. ENERGIE Page | 19... -
Page 22: Carel Controller Μc²Se
Start up request Amber Condenser pump ON Start up request Amber Condenser fan ON Amber Defrost active Defrost request Amber Heater ON Alarm ON Amber Chiller mode Chiller mode request Amber Heat pump mode H.P. mode request ENERGIE Page | 20... -
Page 23: Keypad
”last 5 seconds to start or stop unit the LED display as following： If you press“ ”, the unit will be heating mode. NOTE: The timings of the compressor have priority over any order executed on keyboard or thermostats. ENERGIE Page | 21... -
Page 24: View Probes Values
“Super User”: accessible with password (11), it allows the configuration of the Super User, User and Direct parameters; “User”: accessible with password (22), it allows the configuration of those parameters that can be set typically by the user and Direct, therefore relative to the options. ENERGIE Page | 22... -
Page 25: Parameters Modification Procedure
Setpoint heating mode Differential of r03. To configure the cooling and heating set points in the Heat Pump must perform the following procedures: Go to the controller “µC²SE”, Press simultaneously the " " keys during 5 s; ENERGIE Page | 23... -
Page 26: Configure/ Change Backup Set Point
" keys during 5 s; b) Set the password (66) via " " or " " keys and confirm with " " key; With " " or " " keys select the menu parameter and enter with " " key; ENERGIE Page | 24... -
Page 27: Configure/ Change Backup Set Point
16.10 Configure/ change backup set point The defrost cycle has priority over any compressor timing. During the defrost cycle, the fans remain idle. Reset D05 Parameter Description Value Start of the defrost cycle. End of defrost cycle. ENERGIE Page | 25... -
Page 28: Alarm List
By pressing " " or " " you can scroll through the list of errors. To check the error, press " ". If there are no errors in the display, the following text will appear “noH”. ENERGIE Page | 26... -
Page 29: Alarms List On "Μc²Se
Low pressure switch Low pressure protect pressure switch and action return circuit Exhaust temperature/ or Exhaust temperature or Check through exhaust current protect current is too high temp. switch and current 17. Controller BHB10 17.1. Protection module ENERGIE Page | 27... - Page 30 System2 economizer inlet temp. sensor AI06/ GND System2 economizer outlet temp. sensor AI07/ GND System1 exhaust temp. sensor AI08/ GND System2 exhaust temp. sensor AI09/ GND Ambient temp. sensor LED display when there is some malfunction ENERGIE Page | 28...
-
Page 31: Alarms
System 1 exhaust temp. System 1 exhaust System 1 exhaust over-high protection temp. > 110℃ temp. < 80℃ System 2 exhaust temp. System 2 exhaust System 1 exhaust over-high protection temp. > 110℃ temp. < 80℃ ENERGIE Page | 29... -
Page 32: Troubleshooting And Additional Information
5 - Wrong setting on return 5 - Reset the return water temp; water temp. 1) 6 - Clean the water filter and 1) 6 - Lack of water flow discharge the air in water loop. ENERGIE Page | 30... - Page 33 1 - Clean the water filter and Low water flow 1 - Lack of water in the system; discharge the air in water loop. protection 1) 2 - Failure on flow switch 1) 2 - Replace the flow switch. ENERGIE Page | 31...
-
Page 34: Appendix 2 - Hydraulic Schemes
19. Appendix 2 – Hydraulic schemes IMPORTANT: This diagram shows only the core components of the application. 19.1 Central Heating 19.2 Central Heating with Buffer Tank ENERGIE Page | 32... -
Page 35: Domestic Hot Water (Dhw)
19.3 Domestic Hot Water (DHW) 19.4 Domestic Hot Water (DHW) with Buffer Tank 19.5 Domestic Hot Water (modular installation) ENERGIE Page | 33... -
Page 36: Appendix 4 - Warranty
Parts are subject to natural wear and tear – levers, switches, • resistances, programmers, thermostats, etc. Breakdown due to incorrect handling, electrical discharges, flooding, • humidity or by improper use of the apparatus. ENERGIE Page | 34... - Page 37 Technical assistance costs even within the warranty period shall be supported by the customer (Km and assistance time). In cases where there is no justifiable breakdown and subsequent need for technical assistance, the client will pay for lost technical assistance time. ENERGIE Page | 35...
- Page 38 Please sing below and return to our Technical Dep. Via fax +351 252600239, email energie@energie.pt or post to the address above. Signature:_________________________________________________________________ Date: _______________________________________________________________________ ENERGIE est, lda Zona Industrial de Laúndos, Lote 48 4570-311 Laúndos – Povoa de Varzim – PORTUGAL ENERGIE Page | 36...
- Page 39 Voltage of Supply: ____________________________ (measure this at unit) Current draw: ________________________________ (measure this at unit) Water flow temp: ______________________________ (from controller) Water return temp: _____________________________ (from controller) Please: include photo of unit, hot water cylinder, buffer tank, etc. ENERGIE Page | 37...
- Page 40 ENERGIE EST Address: Zona Industrial de Laúndos, Lote 48, 4570-311 Laúndos - Póvoa de Varzim, PORTUGAL GPS Coordinates: N 41 27.215’...
