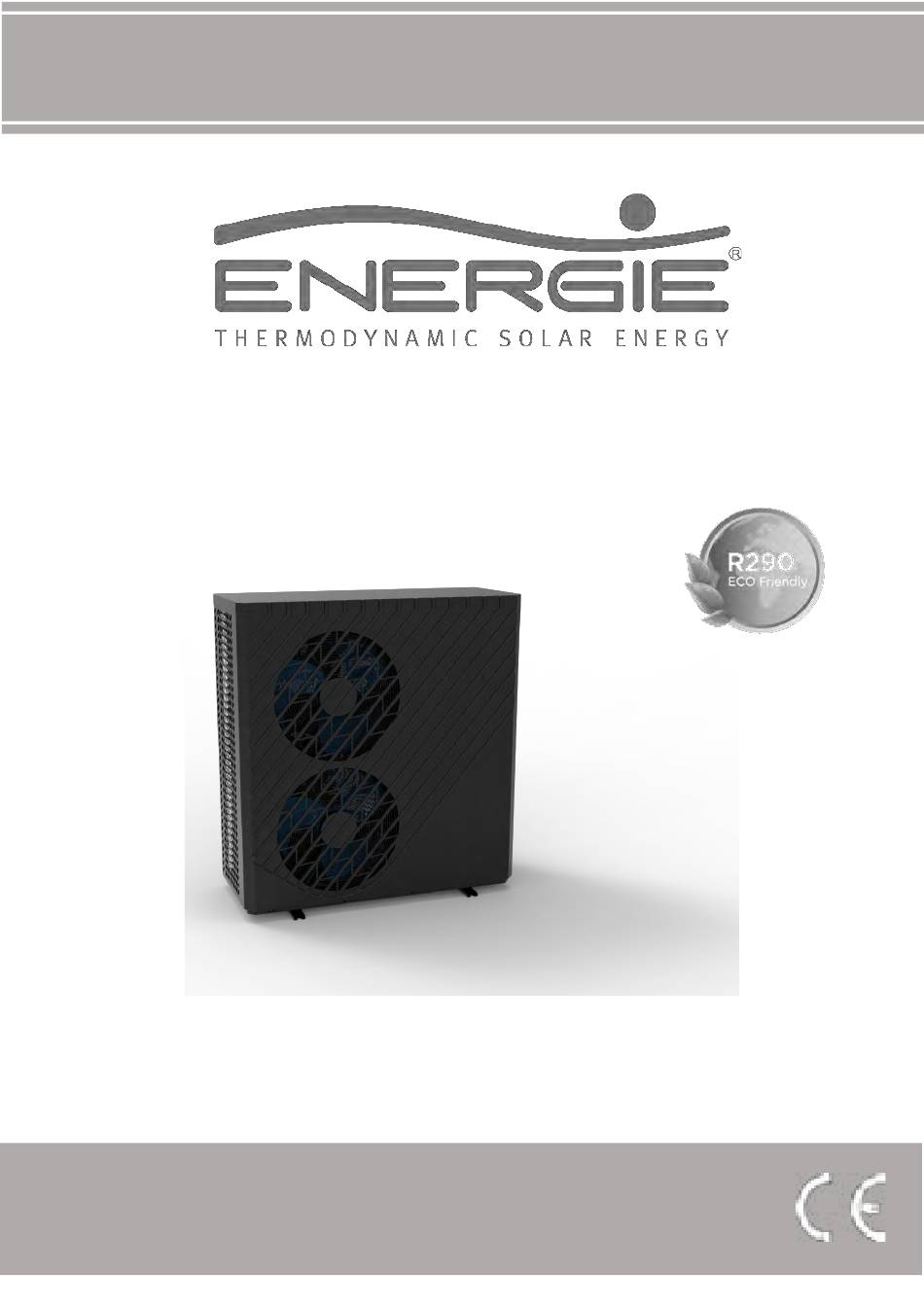

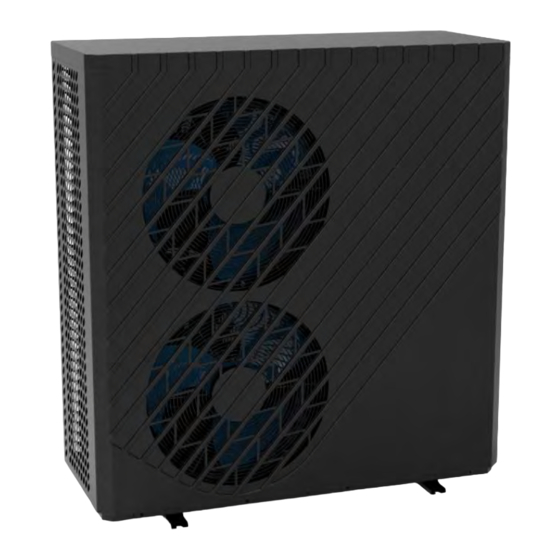

  • Page 1 INSTALLATION AND USER MANUAL INSTALLATION AND USE MANUAL AQUAPURA X30 HT Regulations: Revision:0 2014/35/UE Version:01 2014/30/UE Date: 16/11/2023 Regulation nº 814/2013 Regulation nº 812/2013...
  • Page 2 INSTALLATION AND USE MANUAL Dear Client, We appreciate your preference when purchasing equipment designed to heat sanitary water. The X30 Aerothermal System will certainly meet all your expectations and provide you with many years of comfort with maximum energy savings. Our organization dedicates a lot of time, energy and economic resources to develop innovations that promote energy savings in our products.
  • Page 3: Table Of Contents

    INSTALLATION AND USE MANUAL INDEX INFORMATION ........................5 SECURITY INFORMATION ...................... 5 Danger _ ........................6 Notice ..........................7 GENERAL ..........................7 Manufacturer's responsibility ..................7 Installer's responsibility ....................8 TRANSPORT ........................... 8 OPERATION PRINCIPLE ......................9 Operating conditions ......................9 UNIT OVERVIEW ........................
  • Page 4 INSTALLATION AND USE MANUAL 12.6.2 Set opening hours in silent mode ................ 25 12.6.3 Set opening hours in ON/OFF mode ..............26 12.7 Temperature graph ..................... 26 12.8 Display brightness calibration ..................27 12.9 Activate electrical support resistance ................. 27 12.10 Check equipment status ..................
  • Page 5: Information

    INSTALLATION AND USE MANUAL 1 INFORMATION This manual is an aid for qualified technicians to correctly install, operate and carry out maintenance services on the heat pump. Read this manual carefully before attempting to install, operate or carry out any intervention on the heat pump.
  • Page 6: Danger

    INSTALLATION AND USE MANUAL Danger _ INSTALLATION: Description The heat pump must be installed by qualified technicians. Improper installation may cause water leaks, electric shocks or fires. Make sure that the BC ground connection is properly connected. A bad connection DANGER can cause an electric shock.
  • Page 7: Notice

    INSTALLATION AND USE MANUAL Notice INSTALLATION: Description The BC cannot be installed in places with flammable gas. The occurrence of a gas leak could cause an explosion or fire. Make sure that the base where you are going to install the BC is sufficiently solid, thus avoiding cracks or even falling of the BC.
  • Page 8: Installer's Responsibility

    INSTALLATION AND USE MANUAL Installer's responsibility The installer is responsible for correctly installing the equipment and starting its operation. The installer must pay attention to the following notes: • Read and carefully follow the instructions in the manuals supplied with the device. •...
  • Page 9: Operation Principle

    INSTALLATION AND USE MANUAL Description The unit has been tested and inspected prior to shipment from the manufacturer for quality assurance. Carefully inspect the equipment components upon receipt to ensure that the equipment was not damaged during transportation. NOTICE Confirm that all parts ordered were received as specified and that the unit type, size and voltage are correct.
  • Page 10: Unit Overview

    INSTALLATION AND USE MANUAL 7 UNIT OVERVIEW Display Air exit(horizontal) DIMENSIONS AQUAPURA X30 Water outlet 1” Water inlet 1” Item Dimension(mm) Item Dimension(mm)) Item Dimension(mm) 1330 1250 4-Ø16 1001...
  • Page 11: Technical Information

    INSTALLATION AND USE MANUAL 8 TECHNICAL INFORMATION Technical Data units AQUAPURA X30 HT Electrical Supply 380~415V/3N~/50Hz Heating 28,5 / 35 (Nominal/ Max ) Power Provided Cooling 20,6 / 26,4 (Nominal/ Max ) Heating 5,96 / 12,6 (Nominal/ Max ) Power Consumed...
  • Page 12: Installation

    INSTALLATION AND USE MANUAL Heat pump performance INSTALLATION Installation location Before starting any installation procedure, check that the base of the location where the equipment will be placed is perfectly level. This prevents the compressor lubricating oil from working outside the indicated levels. Look for a place with a regular, safe and resistant floor, preferably concrete, taking into account the weight of the machine.
  • Page 13: Condensate Drainage System

    INSTALLATION AND USE MANUAL >500mm >1500mm >1000mm >500mm The walls and ceiling of the technical room can be insulated with sound absorption panels if the noise level of the heat pump is too high. The BC's feet must be fixed to the base, preventing the equipment from moving due to the vibrations caused by its normal operation.
  • Page 14: Hydraulic Installation

    INSTALLATION AND USE MANUAL Hydraulic installation Take the following points into consideration when executing the hydraulic circuit: • Reduce the number of bends in the pipes as much as possible to reduce pressure losses in the installation; • Make sure that the system's accessories, strainers, water pumps and valves are designed for the full flow of the installation.
  • Page 15: Water Quality

    INSTALLATION AND USE MANUAL 3,75 Volume [m³/h] Water quality Water composition and quality have a direct effect on the performance of the entire system and the lifespan of the heat pump. Normally the initial filling of the circuit is done with normal tap water. The water must have a pH value between 7-8 and be non-corrosive (chloride content >...
  • Page 16: Temperature Probes Info

    INSTALLATION AND USE MANUAL Temperature probes info NTC 5K NTC 10K Temperatura [ C] Temperature [°C] NTC 50KΩ Temperatura [ C] Temperature [°C] 10 ELECTRICAL INSTALLATION 10.1 General specifications Description • The installation of the electrical ne2rk must be carried out in accordance with current local regulations and by a qualified professional.
  • Page 17: Electrical Ne2Rk Specifications/Protective Devices

    INSTALLATION AND USE MANUAL consult an electrical technician to advise on the diameter and type of cable to be used. To make the electrical connection, open the side panel and connect the main power cable in the indicated locations. Description •...
  • Page 18: Connection Terminals - Inputs

    INSTALLATION AND USE MANUAL Description NOTICE The cable shield must be connected directly to the equipment's ground connection. 10.4 Connection terminals – Inputs Description The digital inputs mentioned are dry contacts (no voltage). Do not connect (220/240V~) on the terminals, otherwise it may cause irreversible damage to the controller and void the warranty.
  • Page 19: Digital Input Configuration

    INSTALLATION AND USE MANUAL Description ATTENTION: The digital inputs are inactive by default, giving priority to settings made via the console. To activate the digital inputs, you must contact a specialized technician NOTICE or configure them according to the procedure indicated. •...
  • Page 20: Connection Terminals - Outputs

    INSTALLATION AND USE MANUAL 10.6 Connection terminals – Outputs Note: The position of these terminals may vary depending on the model. Please check the machine's electrical diagram. Description Terminal V1 – Permanent phase Connection terminal for the 3-way valve. Polarized output with V2 –...
  • Page 21: Panel - Main Interface

    INSTALLATION AND USE MANUAL 12 PANEL – MAIN INTERFACE 12.1 Description control panel Number Function Click this key to lock/unlock the display. White display represents not enabled, while blue represents enabled. Click this button to access the main menu. Water temperature scale in the tank. The machine is in hot water mode when this scale is displayed;...
  • Page 22: Select Operating Mode

    INSTALLATION AND USE MANUAL Silent mode timing icon. It is displayed when it is active. Timing icon in ON/OFF mode. Appears when active Outdoor temperature (AT) Date and time Operating mode Click the button to select the heat pump operating mode. •...
  • Page 23: Select Operating Temperature

    INSTALLATION AND USE MANUAL There are five modes that can be selected by swiping on the options: Description “Hot water ” Heat pump working for DHW production DHW function “ Heating ” Heat pump working for room air conditioning – Heating Heating Function mode “...
  • Page 24: Function Menu

    INSTALLATION AND USE MANUAL 12.5 Function menu Swipe from right to left on the main interface to enter the setting interface, and swipe from left to right on the setting interface to return to the main interface. The function configuration interface is shown in the figure below. Description Click this key to set the time function Click the key and enter the password to enter the factory parameter...
  • Page 25: Set System Time

    INSTALLATION AND USE MANUAL N one. Description Set general system/controller time Setting the period of operation in silent mode. In this operating mode, the compressor and fan will work at low frequencies. Definition of the equipment's operating period 12.6.1 Set system time When entering the system time setting page, the system time will be initialized to the time when the button is pressed.
  • Page 26: Set Opening Hours In On/Off Mode

    INSTALLATION AND USE MANUAL 12.6.3 Set opening hours in ON/OFF mode On one. Description Click on the key to activate the period (ON – blue icon / OFF – gray icon ) Setting the day of the week Definition of the operating period (defined period between 00:00 and 23:59) Click on the cursor to consult the various periods.
  • Page 27: Display Brightness Calibration

    INSTALLATION AND USE MANUAL 12.8 Display brightness calibration Drag the center bar to adjust the display brightness. Tap the back key to save the configured brightness adjustment. 12.9 Activate electrical support resistance In heating operating mode, touch the “ Electric Heating ” to activate/deactivate the support resistance ( blue icon active resistance/ gray icon deactivate resistance) Note: The resistance is not an integral part of the equipment.
  • Page 28: Check Equipment Status

    INSTALLATION AND USE MANUAL 12.10 Check equipment status Swipe from left to right on the main interface to enter the “status” interface. To return to the main interface, swipe from right to left. 12.11 Consult list of alarms Click the alarm icon on the main interface to enter the following interface: On one.
  • Page 29: Control Panel - Installer Interface

    INSTALLATION AND USE MANUAL 13 CONTROL PANEL – INSTALLER INTERFACE To access the user interface, click on the “ Parameter ” icon and enter the password 022. After entering the password you will have access to the following menu: “ICON” Description “...
  • Page 30: Installer Parameters

    INSTALLATION AND USE MANUAL 13.1 Installer Parameters Description Status/configuration H05 – activate cold operating mode H07 – Control mode Display H10 – Unit address (RS485 ModBus ) H18 – Support resistance stage Stage 3 ON – Polarized output (0V to 230V) when DHW mode is H20 –...
  • Page 31: Compensation Curve - Outdoor Temperature Vs Setpoint

    INSTALLATION AND USE MANUAL R17 – Hysteresis DHW mode 2°C R35 – Support resistance R70, 71, 72, 73, 74 Configuration not applicable Circulator pump operating mode Interval DHW circulator pump operating “Pump” Interval mode circulator P06 – Manual control of circulator pump pump Circulation pump activation period...
  • Page 32: Status Of Analog And Digital Outputs/Inputs

    INSTALLATION AND USE MANUAL 13.3 Status of analog and digital outputs/inputs In this interface you can check the status of the main equipment variables, such as: status of the compressor, water pump, 3-way valve, flow switch, pressure switches, temperature values, pressure values, current consumed by the compressor, etc.
  • Page 33: Alarms

    INSTALLATION AND USE MANUAL 14 ALARMS 14.1 Alarms – Electronic control Anomaly Code Problem Problem resolution Return water temperature probe Temp . return water Check or replace probe failure Leaving water temperature probe Temp . outlet water Check or replace probe failure DHW temperature probe failure Temp .
  • Page 34 INSTALLATION AND USE MANUAL possible obstructions between inlet and outlet low pressure differential Check connections Communication failure between between display and Communication failure display and control board control board Check the status of the pressure pressure switch or excess pressure in High pressure switch switch and the pressure in the the circuit.
  • Page 35: Alarms - Frequency Control Module

    INSTALLATION AND USE MANUAL 14.2 Alarms – Frequency control module Anomaly Code Problem Problem resolution Check compressor current and Overcurrent protection in the IMP IMP current too high operating frequency. Failure of a phase; Check the input voltage; Compressor start failure Damaged compressor drive.
  • Page 36 INSTALLATION AND USE MANUAL EEPROM Alarm Damaged control board Replace the control board. Damaged EEPROM Damaged control board Replace the control board. V15V above or below the reference Check that the voltage is within LP 15V voltage. the values 13.5 < V < 16.6V Check the temperature on the IGBT module overheating IGBT module overheated...
  • Page 37: Problem Solving

    INSTALLATION AND USE MANUAL 15 PROBLEM SOLVING Problem Possible cause Solution 1) Check the electrical power supply. 1) Electrical supply failure. 2) Check if there is any anomaly 2) Circuit breaker off. and turn the circuit breaker BC does not work, display has 3) Power cord not properly back on.
  • Page 38: Attachment

    INSTALLATION AND USE MANUAL 1) Clean the filter and bleed the 1) Obstruction of the hydraulic air from the hydraulic Flow switch alarm circuit. system. 2) flow switch . 2) Replace the flow switch . 16 ATTACHMENT 16.1 INSTALLATION PLANTS Description •...
  • Page 39: Inertial Air Conditioning

    INSTALLATION AND USE MANUAL 16.2.2 Inertial air conditioning 16.2.3 Air conditioning +AQS...
  • Page 40 INSTALLATION AND USE MANUAL We recommend the installation on the return line of a buffer tank between 50 to 80 liters.
  • Page 41: Warranty Conditions

    INSTALLATION AND USE MANUAL 17 WARRANTY CONDITIONS This warranty covers confirmed defects in materials, excluding the payment of any compensation for personal or material losses that may be caused directly or indirectly. The deadlines indicated below start from the date of purchase of the device, at the latest 6 months after the date it leaves the warehouse.
  • Page 42 INSTALLATION AND USE MANUAL • The warranty expires when the device is transferred to another owner, even within the warranty period. • The warranty expires if this certificate is incorrectly filled out, corrupted or returned after 15 days from the date of purchase. ATTENTION: The technician's travel, even within the warranty period, is paid by the customer (km and travel time).
