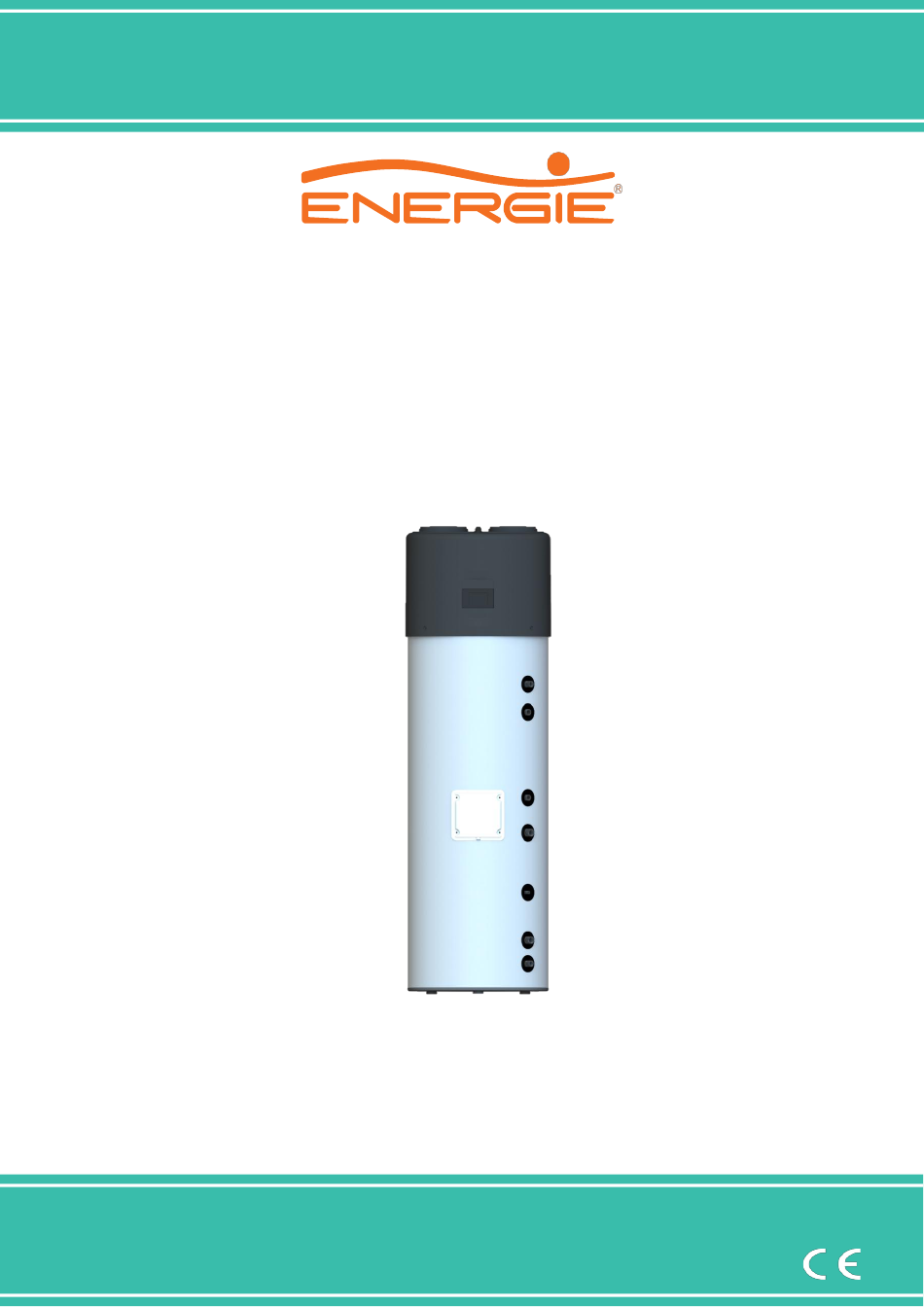

Manual Técnico

AQUAPURA MONOBLOC

Revision: 3

Version: 0

Date: 03/07/2025

TECHNICAL MANUAL

200i | 200ix | 300i | 300ix

PRO

Directives

2006/95/CE

MONOBLO

Need help?

Do you have a question about the AQUAPURA MONOBLOC PRO 200i and is the answer not in the manual?

Questions and answers

Summary of Contents for Energie AQUAPURA MONOBLOC PRO 200i

Page 1 MONOBLO Manual Técnico TECHNICAL MANUAL AQUAPURA MONOBLOC 200i | 200ix | 300i | 300ix Revision: 3 Directives Version: 0 2006/95/CE Date: 03/07/2025...
Page 3 Keep this manual whose objective is to inform, alert and advise about the use and maintenance of this equipment. This instruction manual also available website:” https://www.energie.pt/en/products/aquapura-monobloc ” Our services are always at your disposal. Feel free to call upon us!
Page 4 Technical Manual MONOBLOC PRO INDEX 1 INTRO ....................... 7 Symbols ........................7 Safety Indications ....................7 Information ......................8 2 SPECIFICATIONS ................... 10 Components ......................10 Running Principle ....................11 Technical Data......................12 3 TRANSPORT ..................14 4 INSTALLATION ..................15 Safety and Control Devices ..................15 4.1.1 High/Low Pressure Switch ................15 4.1.2...
Page 5 Technical Manual MONOBLOC PRO 6.5.12 Efficiency ......................33 6.5.13 Accesses ......................34 6.5.14 HMI .......................34 6.5.15 WIFI ......................34 6.5.16 Events ......................34 6.5.17 Block screen ....................35 Installer menu ......................35 6.6.1 Installer parameters ..................35 6.6.2 Test outputs .....................35 6.6.3 Errors .......................35 6.6.4 Modbus ......................36 6.6.5 Restore ......................36 7 Extra functions ..................
Page 6 Technical Manual MONOBLOC PRO PROBE GRAPH ................... 61 PROBLEM RESOLUTION ..............62 SYSTEM MAINTENANCE ..............64 18.1 General Inspection ....................64 18.2 Empty the Water Storage ..................64 18.3 Filter of Reduction Valve ..................64 18.4 Condensate circuit....................64 18.5 Cleaning Air Circuit....................65 18.6 Safety Thermostat ....................65...
Page 7 Technical Manual MONOBLOC PRO 1 INTRO 1.1 Symbols Every process that the supplier believes to be conducive to harmful danger and/or material damage will be signalled with a danger sign. To better characterize the danger, the symbol will be followed by one of these words: •...
Page 8 Technical Manual MONOBLOC PRO 1.3 Information INFORMATION Installation • The installation of the equipment must be carried out by staff with suitable training and qualified for this purpose. • The device must not be installed: o outdoors; o in places with corrosive environment; o in places with a risk of temperatures below 5ºC;...
Page 9 Communicate to the customer the fact that the alteration or maintenance of the device must only be carried out by specialized and accredited personnel. Components not supplied with the equipment. We strongly recommend its installation. To request additional information, contact us via the email address energie@energie.pt or via our website www.energie.pt.
Page 10 Technical Manual MONOBLOC PRO 2 SPECIFICATIONS 2.1 Components The AquaPura Monobloc package contains: Hot water storage tank with electric heater, in stainless steel, with or without an inner coil to be used with a thermal solar boosting system, boiler, etc… Dimensions: Ø...
Page 11 Technical Manual MONOBLOC PRO • A refrigeration circuit, placed at the top, responsible for transferring heat from the ambient air to the water; Air extraction duct Evaporator Compressor Expansion valve High pressure Solenoid valve switch Filter Low pressure switch Condensate drain Electrical Box 2.2 Running Principle 1.
Page 12 Technical Manual MONOBLOC PRO 4. The fluid absorbs heat energy from the environment by flowing through the evaporator with the help of a fan; The R290 is a HC fluid, thus not harmful to the ozone layer. It has great chemical and thermal stability, low toxicity, inflammable, and is compatible with most materials.
Page 13 Technical Manual MONOBLOC PRO Energy Efficiency Annual Electricity Consumption 1235 1235 2,95 2,97 2,95 2,97 Energy Efficiency Class Energy Efficiency Annual Electricity Consumption 1373 1373 Amount of Useful Water 40ºC Sound Power Level Indoor Air Flow Static Pressure Fan Max Ducts Length A14/W10-54, according EN16147 and Delegated Regulation Nº...
Page 14 Technical Manual MONOBLOC PRO 3 TRANSPORT The equipment must be carried in an upright position. The equipment must be raised and lowered with extreme care, to avoid impact that could damage the material. Make sure the belts and/or transportation straps do not damage the material. Always use suitable means to transport the material (pallet lift, forklift, etc.) WARNING Correct transport position:...
Page 15 Technical Manual MONOBLOC PRO 4 INSTALLATION 4.1 Safety and Control Devices 4.1.1 High/Low Pressure Switch In case of running outside the range of pressures recommended and defined by the supplier, the equipment will switch off and indicate error in the electronic panel. 4.1.2 Safety Thermostat The safety thermostat is set by the supplier to ensure that the water temperature in the storage water tank with electric heater does not exceed the maximum value.
Page 16 Technical Manual MONOBLOC PRO 4.2 Drain pan The equipment should not be installed over an area where drains from the tank or its connections could cause damage in the adjacent area or on the lower floors of the structure. For the aforementioned reasons, it is recommended to place a drain pan under the equipment.
Page 17 Technical Manual MONOBLOC PRO 4.4 Air Inlet/Outlet Installation As the Aquapura Monobloc PRO absorbs heat during its operation, the air flow (inlet/out- let) is cooled down and must be directed to unheated areas or to the outside. The equipment will cool the room where it is placed and so if it is installed in heated rooms, the air flow must be directed to other rooms and/or the outside.
Page 18 Technical Manual MONOBLOC PRO Max Lenght Ducts Ø160 Ø190 Rigid duct Flexible duct Considering 90º curves and louvers at the air inlet and outlet of the equipment. If ducts are used, directing the air flow to areas that do not require heating, there are some options: Using Outside Air If outside air is used, the unit may be placed either in a heated room or in an...
Page 19 Technical Manual MONOBLOC PRO Using Ambient and Outside Air A branched duct can be used to inflate air into the equipment. So, you can get hot air in the summer, from the outside, and hot air in the winter from an unheated room. Ducts used to direct the airflow are not included in the equipment, and it is up to the installer to install them, if necessary, to comply with the manufacturer’s recommendations.
Page 20 Technical Manual MONOBLOC PRO 4.5 Hydraulic Installation CAPTION 1 Shut Off Valve Drain Valve 2 Pressure Reducing Valve (3 bar / 0,3 MPa) Circulating Pump 3 Non-return Valve Thermostatic Mixing Valve 4 Safety group (7 bar / 0,7 MPa) A Cold Water Inlet 5 Drainage Siphon B Hot Water Outlet 6 Expansion Vessel...
Page 21 Technical Manual MONOBLOC PRO WARNING/DANGER The water you use may contain impurities and/or substances damaging to the system and even harmful to your health. Make sure you use water with quality fitting for home consumption. The following table indicates some parameters that, when exceeded, must be chemically treated. Hardness (ºdH) Treatment 3,0 to 20,0...
Page 22 Technical Manual MONOBLOC PRO 5 Electrical scheme CAPTION Electrical backup heater Fuse Fuse 10A type F(fast cut-off) ⏚ Water temperature probe Ground Ambient temperature probe High pressure switch Evaporator temperature probe Low pressure switch VENT COMP Compressor Solenoid valve Safety thermostat Neutral TERM Compressor thermal...
Page 23 Technical Manual MONOBLOC PRO 6 CONTROL AND PROGRAMMING 6.1 Symbology Main Screen Symbol Description On/Off button Gray symbol – Ventilator is Off Intermittent Orange symbol – Ventilator has begun the countdown to turn ON Green symbol – Ventilator is ON Gray symbol –...
Page 24 Technical Manual MONOBLOC PRO Grey symbol – Electric heater disabled Orange symbol – Electric heater is enabled but inactive waiting for the conditions to turn ON to be met. Intermittent Orange symbol – Electric heater is enabled and has begun the countdown to turn ON Green symbol –...
Page 25 Technical Manual MONOBLOC PRO Menu Symbology Symbol Description Language Date / Time Chrono Vacation Mode Disinfection Mode Mode access button Parameters Info Efficiency Access Human Machine Interface (HMI) Wifi Date Heat Pump Circulation Pump Output Testing (Level 1 – Menu) Errors (Level 1 –...
Page 26 Technical Manual MONOBLOC PRO Reboot (Level 1 – Menu) Modbus (Level 2 – Menu) System (Level 2 – Menu) Efficiency Menu Symbology Symbol Description Instant Consumption Daily Consumption Monthly Consumption Annual Consumption Energy Economy Delete Consumption Output Testing Menu Symbology Symbol Description Compressor...
Page 27 Technical Manual MONOBLOC PRO Output Testing Menu Symbology Symbol Description Reset Error Error List System Menu Symbology Symbol Description Number of Work Hours Electrical Resistance Configuration Tank Volume 6.2 Functioning modes There are 3 functioning modes – ECO, AUTO e BOOST to configure according with the user needs. Uses the thermodynamic system not allowing the electric heater activation (except by order of other functions).
Page 28 Technical Manual MONOBLOC PRO Figure 1 – Functioning mode button selector • Select the desired mode Figure 2 – Choose one of the three modes where the currently active mode is AUTO 6.3 On/Off button The On/Off button shuts down the equipment with ease where when this button is pressed the machines shuts down and the screen turns gray.
Page 29 Technical Manual MONOBLOC PRO Figure 5 - Menu page 3 The menu of this controller has 14 options: Language Select the language of the controller Date/time Set the time and date of the controller Chrono Define activation periods of the heat pump and circulation pump Modes Check and set the functioning mode of the unit Vacation...
Page 30 Technical Manual MONOBLOC PRO Figure 8 – Set the controller date Figure 7 – Select the date button To set the time of the controller follow the next steps: • Access the menu through the home button • Select the Date/time button •...
Page 31 Technical Manual MONOBLOC PRO Figure 11 – Selection of the heat pump symbol Figure 12 – Selection of the week (left) or weekend (right) Figure 13 – Setting the activation and deactivation time To set one or more working periods of the recirculation pump, follow the next steps: •...
Page 32 Technical Manual MONOBLOC PRO 6.5.5 Vacation This function allows the unit to shut down for some time when the user does not have the need for hot water allowing the equipment to save energy. To set a vacation period on the unit, follow the next steps: •...
Page 33 Technical Manual MONOBLOC PRO • Access the menu through the menu button. • Select the disinfection button. • Select the configure button. • Select the gear wheel below the weekly. • Use the arrows to define the day of the week and the time to perform the disinfection function. •...
Page 34 Technical Manual MONOBLOC PRO Energy economy Amount of energy saved using the compressor instead of the electric heater to heat water Delete consumption Eliminate the consumption data To check the consumption, follow the next steps: • Access the menu through the menu button •...
Page 35 Technical Manual MONOBLOC PRO 6.5.17 Block screen This function allows the user to block the screen to prevent the pressing of an unwanted button or action. If no action is performed on the display for a while, the display will automatically block the screen.
Page 36 Technical Manual MONOBLOC PRO Figure 19 – Unit error list 6.6.4 Modbus On this function, it is possible to define the connection parameters of the modbus function. It is possible to check the state of the unit as well as some of its parameters through this connection. •...
Page 37 Technical Manual MONOBLOC PRO temperature reaches the temperature above P10+H10. The system goes back to its previous working mode after this function. Figure 21 – Activate LAT function 7.3 PV The PV(photovoltaic) function allows the user to use a secondary energy source such as photovoltaic panels to power up the heat pump system storing that energy in the tank water in form of the heat energy.
Page 38 Technical Manual MONOBLOC PRO The cable to connect to the electric board to activate the PV function must be a dry contact (no voltage). Applying tension on this contact on the electric board may cause irreversible WARNING damage to the controller This PV function allows the integration of the heat pump in a smart network.
Page 39 Technical Manual MONOBLOC PRO Electrical terminals Code Description Erro! Não é possível criar Temperature Probe from Solar Colector objetos a partir de códigos (NTC10KΩ@25ºC) de campo de edição.Terminal T4 Flow switch Terminal CAUX Solar circulation pump Terminal AUX/N 7.4.3 P12=2 Figure 24 –...
Page 40 Technical Manual MONOBLOC PRO It is possible to integrate a control unit of the solar installation on the equipment where the heat pump is placed on standby in case there is solar energy production. To activate this function, it is necessary to activate the auxiliary contact of the control unit (Caux) placing the heat pump in standby.
Page 41 Technical Manual MONOBLOC PRO Figure 25 – Solar function P12=3 activated Electrical terminals Code Description Control unit Temperature probe of the solar collector Temperature probe of the water tank Connections of the control unit Flow switch Solar recirculation pump Auxiliar contact of the control of the heat pump (dry contact).
Page 42 Technical Manual MONOBLOC PRO Figure 26 – Solar function P12=4 activated PR – Recirculation pump...
Page 43 Technical Manual MONOBLOC PRO 8 Modbus connection This device allows the communication by modbus connection to change some of the parameters of heat pump. To read the defined values on the controller you must use the function Read Holding Register (03) while to change the values you must use the function Write single register (06). The heat pump allows the visualization or modification of the following parameters.
Page 44 This APP allows the connection more than one unit of domestic hot water of the ENERGIE brand, you can just add it to the APP.
Page 45 Technical Manual MONOBLOC PRO Figure 27:Execute the App Figure 28: Add email Figure 29: Authentication code The authentication code will be sent to registered email. In case you have not received it, please request another authentication code. After the configuration of the authentication code, configure your access password and confirm the registration.
Page 46 Technical Manual MONOBLOC PRO Figure 30: Configuration finished 12.2 Add unit To add a unit to your app you must follow the instructions below on the display of the unit. • Access the display of your machine. • Access the second page of the menu to find the WIFI function. •...
Page 47 Technical Manual MONOBLOC PRO Figure 31: Add device/Allow location access Note: Before advancing the configuration of your device, allow the app to access your location. In case you don’t provide access to the app, it may not work properly. After allowing location access to the app, you must continue with the following instructions:...
Page 48 Technical Manual MONOBLOC PRO Device search active. The detection of units is automatic, do not go into other type of configuration. It is not necessary to activate Bluetooth connection Figure 32: Connecting the device Insert the password of the Wi-Fi network. Press the “next”...
Page 49 Technical Manual MONOBLOC PRO If you insert the Wi-Fi password incorrectly you should restart the Wi-Fi module before trying again. If you are unable to connect the device to the APP by connection error, try to restart the electric board of the equipment.
Page 50 Technical Manual MONOBLOC PRO 13 Smart life APP – Functionalities 13.1 Main interface Wi-Fi network signal (local) Equipment(model) Settings Water temperature Recirculation pump Working modes Vacation mode Disinfect function Solar functions Chrono function ON / OFF Electric heater ON/ OFF Compressor Menu...
Page 51 Technical Manual MONOBLOC PRO 13.2 Menu Figure 35:User interface The APP menu provides the following options: Num. Function Description Chrono Working period setting of the heat pump and the recirculation pump. Disinfection function Disinfection function setup Efficiency Check the efficiency of the heat pump Modes Check and modify the working mode of the heat pump Vacation...
Page 52 Technical Manual MONOBLOC PRO 13.3 Functionalities 13.3.1 Recirculation pump chrono This function allows the user to set up working periods of the recirculation pumps. This function can ONLY be activated when one of the solar functions P21=1, P12=3 or P12=4 is active. To access this function, you must: •...
Page 53 Technical Manual MONOBLOC PRO 13.3.2 Ventilator chrono This timer allows the user to set a timer to activate the unit’s ventilator. To set this timer you must follow the same instructions of setting the timers for the recirculation pump (check 14.4.1). 13.3.3 Heat pump chrono This timer allows the user to set a timer to activate the unit’s ventilator heat pump.
Page 54 Technical Manual MONOBLOC PRO 13.3.5 Disinfection This function allows the user to activate and deactivate manually the disinfection function to guarantee high temperatures on the tank and eliminate the bacteria that cause the legionella disease. Figure 39: Disinfect function To activate this function, follow the next instructions: •...
Page 55 Technical Manual MONOBLOC PRO 13.3.6 Parameters This function allows the user to check and modify the value of some parameters of the heat pump through the APP. Figure 40: Parameters To modify a value of the parameters, follow the next instructions: •...
Page 56 Technical Manual MONOBLOC PRO 13.3.7 Vacation This function allows the user to set a time period of vacation keeping the equipment in standby mode. Figure 41: Vacation function To set the vacation period follow the next instructions: • Access the vacation function from the menu. •...
Page 57 Technical Manual MONOBLOC PRO 13.3.8 Efficiency This function allows the use to check the electric consumption of the compressor and electric heater when the heat pump is ON. It is possible to check this information by day, month or year. Figure 42: Consumption analysis 13.3.9 Errors This function allows the use to check the errors that occurred on the unit and verify if the unit is...
Page 58 Technical Manual MONOBLOC PRO 13.3.10 Device settings On this menu it is possible to customize all the aspects of the control and display of the equipment on the app, for example, to change to name of the unit, share the unit with another person or check which network is the unit connected to at this point.
Page 59 Technical Manual MONOBLOC PRO 14 Parameter description Parameter Default Units P01 – Compressor setpoint °C H01 – P01 Differential °C P02 – E-Heater Setpoint °C H02 – P02 Differential °C P01 PV - Compressor setpoint °C H01 PV - P01 PV Differential °C P02 PV- E-Heater Setpoint °C...
Page 60 Technical Manual MONOBLOC PRO 15 ERRORS The installation, assembly and repair of the unit may only be performed by people with training. Code Description Problem/check - resolution Er01 – S1 Probe 1 OFF • Temperature probe fault. Check for the probe. Er02 –...
Page 61 Technical Manual MONOBLOC PRO 16 PROBE GRAPH The probes installed on the unit, S1, S2, S3 and S4 are all type NTC 10kΩ@25ºC.
Page 62 Technical Manual MONOBLOC PRO 17 PROBLEM RESOLUTION Problem Possible causes How to act Check the supply for current. Faulty power supply Electric board does not Check the correspondent electrical switch power on Cable damaged or not Check the integrity of the electrical circuit of the connected electronic panel.
Page 63 Technical Manual MONOBLOC PRO Problem Possible causes How to act Low hot water flow Hydraulic circuit blocked Check the condition of the hydraulic circuit rate Absence or incorrect sizing Installation and/or correct dimensioning of of expansion vessel (if leak expansion vessel Water discharge on the is not continuous) safety group...
Page 64 Technical Manual MONOBLOC PRO 18 SYSTEM MAINTENANCE Before undertaking any maintenance operation on the equipment, make sure it is not plugged to the power supply! Wait until the fan comes to a complete stop. WARNING Although the fluid in the cooling circuit is environmentally-friendly, it must not be released into the atmosphere.
Page 65 Technical Manual MONOBLOC PRO 18.5 Cleaning Air Circuit Make sure the air inlet filters are not obstructed, if applicable. Inspect at least once a year. The evaporator may have deposited dust. Clean it also but be careful with its fins. The evaporator’s fins are quite thin, so there is additional risk of injuries.
Page 66 Technical Manual MONOBLOC PRO...
Page 67 NOTE: This sheet must be properly filled, signed and stamped by the installer / reseller and returned to ENERGIE EST, Lda., otherwise the warranty will not be validated. Send this installation sheet to warranty@energie.pt, writing the serial number of the equipment as subject.
Page 68 NOTES:...
Page 69 Technical Manual MONOBLOC PRO...
