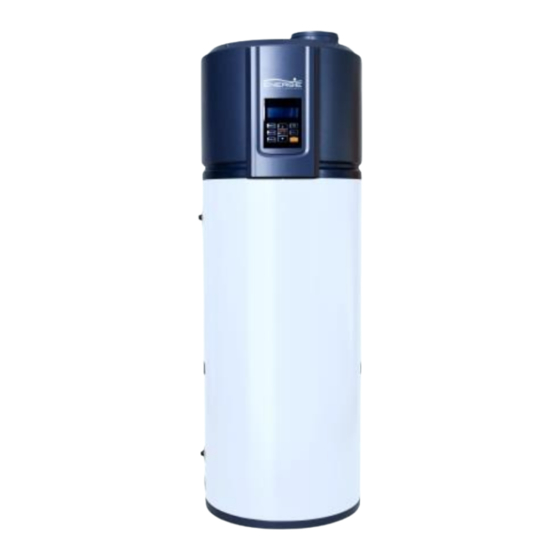

Energie AquaPura Monobloc 300i Technical Manual
Hide thumbs
Also See for AquaPura Monobloc 300i:
- Technical manual (108 pages) ,
- Technical manual (53 pages) ,
- Technical manual (45 pages)
Subscribe to Our Youtube Channel
Related Manuals for Energie AquaPura Monobloc 300i
Summary of Contents for Energie AquaPura Monobloc 300i
- Page 1 Technical Manual AQUAPURA MONOBLOC 300i | 300ix Review: 1 Version: 0 Date: 02/Jun/2014...
- Page 2 AquaPura Monobloc Technical Manual Esteemed Client, We would like to thank you for your choice when you acquired an equipment for sanitary water heating. The heat-pump AquaPura Monobloc will surely meet all your expectations and provide many years of comfort with a maximum power saving. Our organization dedicates much time, energy and economic resources in order to develop innovations that will promote power saving in our products.
-
Page 3: Table Of Contents
AquaPura Monobloc Technical Manual INDEX 1. PARTS NAMES ........................6 2. BASIC OPERATION PRINCIPLE ....................7 3. SAFETY INFORMATION ......................7 4. BEFORE INSTALLATION ......................9 4.1. Unpacking ........................9 4.1.1. Acessories ......................9 4.1.2. How to Transport ....................9 4.2. - Page 4 AquaPura Monobloc Technical Manual 8.2. Something About Self-Protection of Unit ..............25 8.3. When Error Happened....................25 8.4. Error Phenomenon Shooting ..................26 8.5. Error Code Shooting Table ................... 26 9. MAINTENANCE ........................27 9.1. Maintenance ....................... 27 9.2. Recommended Regular Maintenance Table..............28 10.
- Page 5 AquaPura Monobloc Technical Manual WARNING This unit is required reliable earthing before usage, otherwise might cause death or injury If you can't make sure that your house power supply is earthed well, please don't install the unit. Please have a qualified person perform the reliable earthing connection and the installation of the unit.
-
Page 6: Parts Names
AquaPura Monobloc Technical Manual 1. PARTS NAMES 1915 Height Diameter Cold water inlet 3/4” M Recirculation 3/4”M 1071 Magnesium anode 1” 1/4 F 1300 PT Valve* 1/2” F 1157 Hot water outlet 3/4” M 610* Heat exchager outlet* 1” M 920* Heat exchanger inlet* 1”... -
Page 7: Basic Operation Principle
AquaPura Monobloc Technical Manual NOTE: Above calculation is based on the ideal 2. BASIC OPERATION PRINCIPLE condition , the final cost bill will be different caused by the actual running conditions, such as running period, ambient temperature, etc. As we know with our experience, the natural flow of heat, which moves from a higher to a lower 3. - Page 8 AquaPura Monobloc Technical Manual Improper installation may result in water How to check the power supply socket and leakage, electric shock or fire. plug are qualified? Electric connection work should obey the Turn on power supply and keep the unit instructions of local power company, local running for a half hour, then turn off power electric utility and this manual.
-
Page 9: Before Installation
AquaPura Monobloc Technical Manual Do not turn off the power supply. System will incline the unit more than 75° in moving, and keep it vertical when installing. stop or restart heating automatically. A continuous power supply for water heating is This unit is heavy, it needs to be carried by two or necessary, except service and maintenance. -
Page 10: Space Requirements
AquaPura Monobloc Technical Manual piping to be insulated to shelter against 4.3. Space requirements freezing. CAUTION Installing the unit in any of the following places may lead to malfunction (If it is inevitable, consult the supplier). The site contains mineral oils such as lubricant of cutting machines. -
Page 11: Unit Dimensions
AquaPura Monobloc Technical Manual 4.5. Unit Dimensions 5.1. Water System Piping Water inlet or outlet pipes: The spec of the water inlet or outlet thread is RC3/4” (external thread). Pipes must be heat-insulated well. 1. Installation of the pipe for PT valve: The spec of the valve connecting thread is RC3/4”... -
Page 12: Air Duct Connection
AquaPura Monobloc Technical Manual RC3/4”. It is used to prevent water from 5.2. Air Duct Connection flowing backwards. 1. Air inlet and outlet with duct (A+B<10m) 3. After water system piping work, turn on the cold water inlet valve and hot water outlet valve and start effusing the tank. - Page 13 AquaPura Monobloc Technical Manual 3. Air outlet connect to canvas, air inlet without For the case of unit with canvas, of the duct total duct (A<10m) length should be no more than 10m or the maximum static pressure should be within 25Pa, and the quantity of bending should be no more Air outlet Air inlet...
-
Page 14: Electric Connection
AquaPura Monobloc Technical Manual WARNING In case of rain entering to internal components of the unit, the component might be damaged or causing physical danger. In terms of the unit connect with duct reaching to outdoor, reliable water-resistant measure must be conduct on the duct, to prevent water from dropping into internal of the unit. -
Page 15: Electric Wiring
AquaPura Monobloc Technical Manual 5.3.2. Power Supply Set the electric leakage protector according to the relevant electric technical standards of the State. The power cord and the signal cord shall be laid out neatly and properly without mutual interference or contacting the connection pipe or valve. -
Page 16: Pcb I/O Ports Description
AquaPura Monobloc Technical Manual 5.3.3. PCB I/O Ports Description 5.3.4. Switch Setting 5.4. Installation Checklist PCB has 2 bits of switches The flooring beneath the water heater must be able to support the weight of the water heater when filled with water (286kg full). Located indoors (such as a basement or garage) and in a vertical position. -
Page 17: Water Affusion Before Operation
AquaPura Monobloc Technical Manual air outlet side, 600mm in the back, and Water heater and electrical supply are 600mm in the front. properly grounded. The unit cannot be placed into any type of Proper overload fuse or circuit breaker closet or small enclosure. protection installed. -
Page 18: Trial Running
AquaPura Monobloc Technical Manual 6.2. Trial Running Checking list before commissioning 1. Checking list before trial-running. 2. Correct installation of the system. 3. Correct connection of water/air piping and wiring;. 4. Condensate draining smoothly well insulation work for all hydraulic part. 5. - Page 19 AquaPura Monobloc Technical Manual NOTE: If only use E-heater, about only 150 liters water will be heated, so must set higher target water temperature if ambient temperature is out of heat pump running range. Defrosting During Water-heating In heat pump running period, if the evaporator 11.
-
Page 20: Operation
AquaPura Monobloc Technical Manual If the water temperature is higher than 85℃, the TCO will automatically shut off the power of E- heater, it must be re-turn on manually. Restart After a Long Term Stop When the unit is restarted after a long term stop (trail running included), it is normal that outlet water is unclean. -
Page 21: Display Explanation
AquaPura Monobloc Technical Manual 7.2. Display Explanation... - Page 22 AquaPura Monobloc Technical Manual...
- Page 23 AquaPura Monobloc Technical Manual...
-
Page 24: Combination Button
AquaPura Monobloc Technical Manual 8. TROUBLESHOOTING 8.1. Non-Error Tips Q: Why compressor can't start immediately after setting? A: Unit will wait for 3 min to balance the pressure of system before start compressor again; it's a self protection logic of unit. 7.3. -
Page 25: Something About Self-Protection Of Unit
AquaPura Monobloc Technical Manual A: The heat pump available running ambient When the self-protection happens, the system range is -7-43℃,if ambient temperature is out of will be stopped and start self-check, and range, system will show above-mentioned signal restart when the protection resolved. to let user notice it. -
Page 26: Error Phenomenon Shooting
AquaPura Monobloc Technical Manual 8.4. Error Phenomenon Shooting 8.5. Error Code Shooting Table... -
Page 27: Maintenance
AquaPura Monobloc Technical Manual NOTE: 5. It recommended lower temperature to decrease the heat release, The diagnostic codes listed above are the most prevent scale and save energy if the outlet common. If a diagnostic code not listed above is water volume is sufficient. -
Page 28: Recommended Regular Maintenance Table
AquaPura Monobloc Technical Manual Replace with a new one, and make sure effective sealed. Open cold water inlet tap until water flows out from outlet tap, then turn of water outlet tap. Power on then restart the unit. 9.2. -
Page 29: Specifications
AquaPura Monobloc Technical Manual 10. SPECIFICATIONS... - Page 30 AquaPura Monobloc Technical Manual _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ ____________________________________________________________...
- Page 31 In cases where there is no justifiable breakdown and subsequent need for technical assistance, the client will pay for lost technical assistance time. NOTE: This sheet must be properly filled, signed and stamped by the installer / reseller and returned to ENERGIE est, Lda., otherwise the warranty will not be validated.
- Page 32 AquaPura Monobloc Technical Manual Zona Industrial de Laúndos, Lote 48 Energie - Energia Solar Termodinâmica, LDA 4570-311 Laúndos – Póvoa de Varzim – Portugal Tel: (+351) 252 600 230 Fax: (+351) 252 600 239 Email: geral@energie.pt Web: www.energie.pt...
