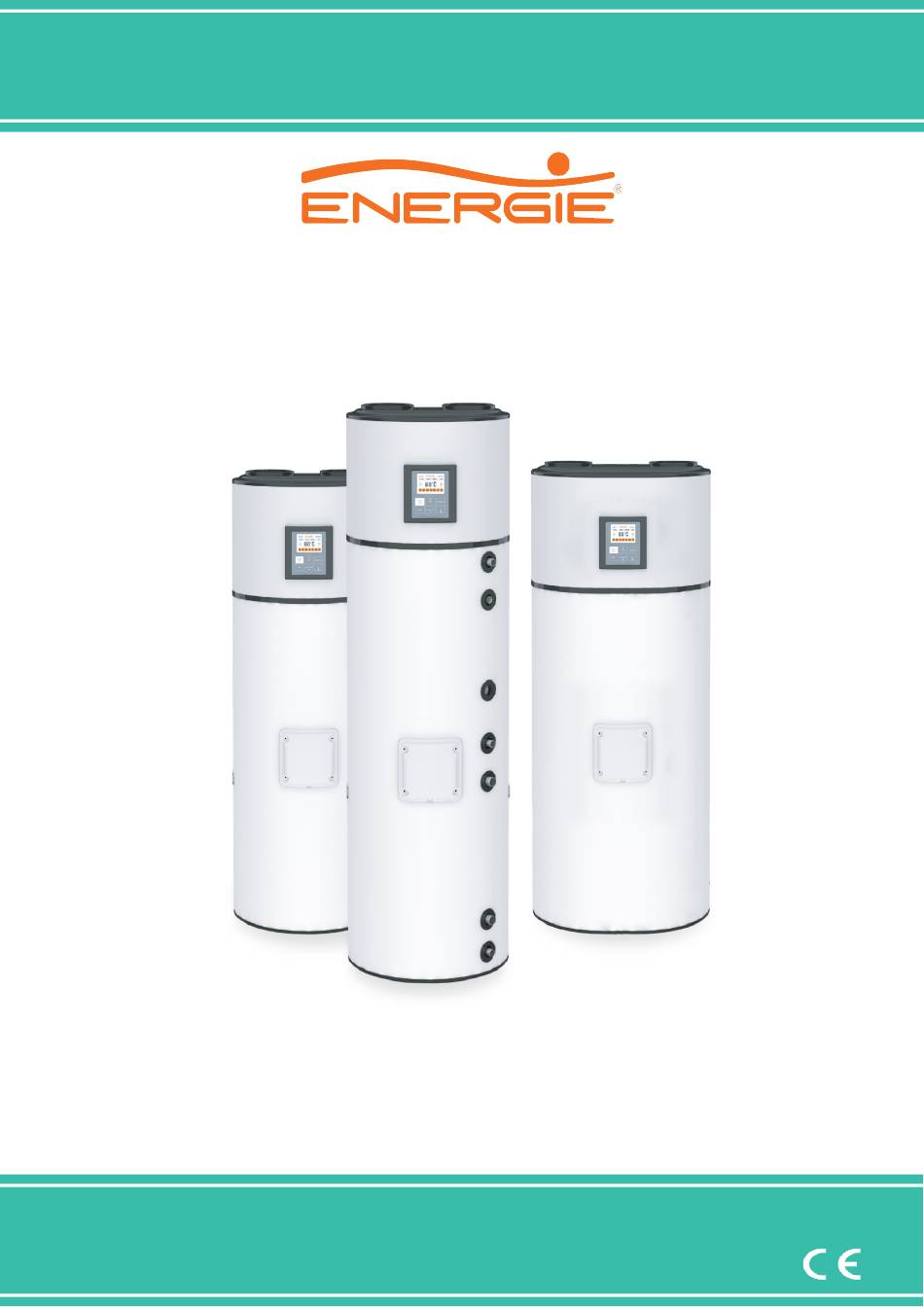

- Page 1 TECHNICAL MANUAL AQUAPURA MONOBLOC 200i | 200ix | 250i | 250ix | 300i | 300ix Revision 10 Diretcives European Certification Version 0 2006/95/CE EN 60335-1 Date 03/10/2020 EN 60335-2-21 EN 60335-2-40...
- Page 3 Technical Manual MONOBLOC Esteemed Client, We would like to thank you for your choice when you acquired an equipment for sanitary water heating. AQUAPURA MONOBLOC aero-thermal system will surely meet all your expectations and provide many years of comfort with maximum power saving.
-
Page 4: Table Of Contents
Technical Manual MONOBLOC Index INTRO ......................6 1.1. Symbols..........................6 1.2. Pre-installation Information ....................6 1.3. Safety Information ........................ 7 SPECIFICATIONS ..................8 2.1. Components .......................... 8 2.2. Running Principle ......................... 9 2.3. Technical Data ........................10 TRANSPORT ....................11 INSTALLATION.................. - Page 5 Technical Manual MONOBLOC 5.6. Extra Modes ........................32 5.6.1. DISINFECT ......................32 5.6.2. VACATION Mode ....................32 5.7. Menu ............................. 32 5.8. Changing Mode ........................32 5.9. Number of Showers Available ..................33 5.10. Consultation of probe temperatures (S1, S2, S3) ............33 CHECKING GOOD RUNNING CONDITION ..........
-
Page 6: Intro
Technical Manual MONOBLOC 1. INTRO 1.1. Symbols Every process that the supplier believes to be conducive to harmful danger and/or material damage will be signalled with a danger sign. To better characterize the danger, the symbol will be followed by one of these words: •... -
Page 7: Safety Information
Technical Manual MONOBLOC 1.3. Safety Information Every process that the supplier believes to be conducive to harmful danger and/or material damage will be signalled with a danger sign. To better characterize the danger, the symbol will be followed by one of these words: DANGER: when there is the possibility of harm to the operator and/or •... -
Page 8: Specifications
Technical Manual MONOBLOC 2. SPECIFICATIONS 2.1. Components The AquaPura Monobloc package contains: Hot water storage heater, in stainless steel, with or without an inner coil to be used with a • thermal solar boosting system, boiler, etc. Dimensions: Ø 200 I/IX 250 I/IX 300 I/IX Obs. -
Page 9: Running Principle
Technical Manual MONOBLOC • A cooling system, at the top, responsible for transferring heat from ambient air to sanitary water; Air extraction duct Evaporator Compressor Expansion valve High pressure Solenoid valve switch Filter Low pressure switch Condensate drain Electrical box 2.2. -
Page 10: Technical Data
Technical Manual MONOBLOC 2.3. Technical Data Unid. 200i 250i 300i 200ix 250ix 300ix Type of Equipment Air/Water Heat Pump for DHW DHW Capacity Empty Weight Dimensions (ø/height) 580/1695 580/1970 650/1860 580/1695 580/1970 650/1860 Storage Water Heater Material Stainless Steel Insulation High-density polyurethane 50mm Cathodic Protection (Mg 1”1/4 F... -
Page 11: Transport
Technical Manual MONOBLOC 3. TRANSPORT The equipment must be carried in an upright position. The equipment must be raised and lowered with extreme care, to avoid impact that could damage the material. Make sure the belts and/or transportation straps do not damage the material. WARNING Always use suitable means to transport the material (pallet lift, forklift, etc.) Correct transport position:... -
Page 12: Installation
Technical Manual MONOBLOC 4. INSTALLATION 4.1. Safety and Control Devices 4.1.1. High/Low Pressure Switch In case of running outside the range of pressures recommended and defined by the supplier, the equipment will switch off and indicate error in the electronic panel. 4.1.2. -
Page 13: Drain Pan
Technical Manual MONOBLOC 4.2. Drain pan The equipment should not be installed over an area where drains from the tank or its connections could cause damage in the adjacent area or on the lower floors of the structure. For the aforementioned reasons, it is recommended to place a drain pan under the equipment. -
Page 14: Air Inlet/Outlet Installation
Technical Manual MONOBLOC 4.4. Air Inlet/Outlet Installation As the AquaPura Monobloc absorbs heat during its operation, the air flow (inlet/out- let) must be directed to unheated areas. The equipment will cool the room where it is placed and so if it is installed in heater rooms, the air flow must be directed to other rooms and/or the outside. - Page 15 Technical Manual MONOBLOC Max Lenght Ducts Ø160 Ø190 Rigid duct Flexible duct Considering 90º curves and louvers at the air inlet and outlet of the equipment. If ducts are used, directing the air flow to areas that do not require heating, there are some oprtions: Using Outside Air If outside air is used, the unit may be placed either in a heated room or in an...
- Page 16 Technical Manual MONOBLOC Using Ambient and Outside Air A branched duct can be used to inflate air into the equipment. So you can get hot air in the summer, from the outside, and hot air in the winter from an unheated room. UNHEATED AREA HEATED OR UNHEATED AREA...
-
Page 17: Hydraulic Installation
Technical Manual MONOBLOC 4.5. Hydraulic Installation Caption 1 Shut Off Valve Drain Valve 2 Pressure Reducing Valve (3 bar / 0,3 MPa) Circulating Pump 3 Non-return Valve Thermostatic Mixing Valve 4 Safety group (7 bar / 0,7 MPa) A Cold Water Inlet 5 Drainage Siphon B Hot Water Outlet 6 Expansion Vessel... -
Page 18: Condensates
Technical Manual MONOBLOC WARNING / DANGER The water you use may contain impurities and/or substances damaging to the system and even harmful to your health. Make sure you use water with quality fitting for home consumption. The following table indicates some parameters that, when exceeded, must be chemically treated. Hardness (ºdH) Treatment 3,0 - 20,0... -
Page 19: Electric Diagram
Technical Manual MONOBLOC 4.8. Electric Diagram CAPTION Electrical backup heater High pressure switch Water temperature probe Low pressure switch COMP Ambient temperature probe Compressor Evaporator temperature probe Safety thermostat VENT Fan TERM Compressor thermal 9/10/11 Phase/Neutral/Ground Solenoid valve Neutral Solar thermal probe Phase... -
Page 20: Control And Programming
Technical Manual MONOBLOC 5. CONTROL and PROGRAMMING 5.1. Control Panel The control panel of the Thermodynamic Solar system Eco is simple and intuitive. It enables the configuration of several operating parameters according to the operating mode selected by the user. It comprises six command keys (ON / OFF / CANCEL, MENU, COMP ▲, E-HEATER ▼, DISINFECT and OK / LOCK that enable checking the running of the equipment, consult and change parameters. -
Page 21: Display
Technical Manual MONOBLOC 5.3. Display 5.3.1. Interface 5.3.2. Symbols Description Equipment in ECO operating mode Equipment in AUTO operating mode Equipment in BOOST operating mode Timer clock control Low Ambient Temperature protection Defrost Compressor Electrical heater Disinfect Chrono function Vacation mode Recirculation pump function Solar function °C... -
Page 22: Symbols With Equipment Running
Technical Manual MONOBLOC 5.3.3. Symbols with Equipment Running Symbol Description Compressor ACTIVATED Compressor RUNNING Electrical heater ACTIVATED Electrical heater RUNNING Electrical heater ACTIVATED when S1 < P08 and/or P07 ˃ Temperature S3 (Auto Mode) Electrical heater ACTIVATED when compressor continuous running time exceeds T05 (Auto mode) Electrical heater ACTIVATED manually. -
Page 23: Start-Up Of The System
Technical Manual MONOBLOC 5.4. Start-up of the System Before starting, check whether the installation is set up according to the recommendations and that everything is in conformity, then you may plug your equipment to the power supply. After switching on your equipment, you should wait a few seconds until the controller begins to work. Then you may start your equipment following these instructions: System is shut off (OFF) Press key COMP to start up... -
Page 24: Mode
Technical Manual MONOBLOC 5.5.1. Mode In ECO operating mode, the equipment runs only as a Heat Pump to heat the water in the storage water heater. Thus, we could generate a greater efficiency, and savings for the user. Every time the user feels it necessary, may switch on the support electrical heater, using this mode, manually pressing the key (E-HEATER). -
Page 25: Mode
Technical Manual MONOBLOC 5.5.5. Mode The TCC function provides the possibility of raising the water temperature when an alternative power source is available (solar photovoltaic, wind or other), increasing the efficiency of the heat pump and making the alternative power source profitable. To this end, it is sufficient to connect a cable from the inverter to the equipment's control board. -
Page 26: Chrono Scheduling Of The Heat Pump
Technical Manual MONOBLOC 5.5.6. Chrono scheduling of the heat pump The heat pump has an internal clock that allows the user to set two periods of operation for the control of the equipment. These periods can be distinctly defined as weekly (Monday to Friday) or weekend (Saturday and Sunday). - Page 27 Technical Manual MONOBLOC 5.5.7. Chrono scheduling of the recirculation pump The heat pump has an internal clock that allows the user to set two periods of operation for the pump of recirculation. These periods can be distinctly defined as weekly (Monday to Friday) or weekend (Saturday and Sunday).
- Page 28 Technical Manual MONOBLOC 5.5.8. Additional functions The heat pump controller has four additional functions available. These functions allow the management/control of a solar thermal installation and pump of recirculation. To configure these functions, it is necessary to enter the installer level of access (F11), access the submenu parameters (F08) and select parameter P12.
- Page 29 Technical Manual MONOBLOC Parameter P12 = 2: In the presence of a "SC" electronic control unit to control the solar thermal installation, it is possible to put the heat pump on standby whenever there is solar production, this is, when the solar thermal installation is producing the electronic control unit activates the auxiliary contact "CAUX"...
- Page 30 Technical Manual MONOBLOC Parameter P12 = 3: In the presence of a "SC" electronic control unit to control the solar thermal installation, it is possible to put the heat pump on standby whenever there is solar production, this is, when the solar thermal installation is producing the electronic control unit activates the auxiliary contact "CAUX"...
- Page 31 Technical Manual MONOBLOC Parameter P12 = 4: The heat pump controller assumes the control of a recirculation pump in parallel with the heat pump control. The pump of recirculation is driven by the hourly period set by the user and the temperature in the heat accumulator.
-
Page 32: Extra Modes
Technical Manual MONOBLOC 5.6. Extra Modes 5.6.1. DISINFECT The Monobloc electronic control features the Disinfect function, which consists of a water heating cycle up to 65 °C, for a period of time long enough to prevent the formation of germs inside the tank. The Disinfect function can be set automatically or manually. -
Page 33: Number Of Showers Available
Technical Manual MONOBLOC 5.9. Number of Showers Available The user can consult the number of showers available on the home page of the graphical interface (display) by using a volume of hot water at a temperature of 40ºC or more. On the initial page of the display, the parameter mentioned in this chapter will be displayed by resorting to the icon of a shower, with the number indicating the number of showers being positioned below. -
Page 34: Parameters Description
Technical Manual MONOBLOC 7. PARAMETERS DESCRIPTION Code Type Function Default Units Portuguese English Français Language English Deutsch Italiano Espanol Clock Date and Time Week Chrono Heat Weekend Chrono = OFF Pump ON/ OFF chrono Chrono Week Recirculation Weekend Chrono = OFF Pump ON/ OFF chrono Mode... - Page 35 Technical Manual MONOBLOC T03 (timer) – Maximum defrost cycle time T04 – Not used T05 (timer) – Maximum time hours compressor running T06 (timer) – Delay for defrost cycle T07 (timer) – Delay time to compressor starts running after LP error T08 (timer) –...
- Page 36 Technical Manual MONOBLOC COMP - Contact N.O Compressor output RES - Contact N.O Electrical heater output VE- Contact N.O Test Outputs Fan output VS- Contact N.O Solenoid valve output AUX - Contact N.O Auxiliary contact output (recirculation pump / Solar thermal pump) Elist –...
-
Page 37: Errors
Technical Manual MONOBLOC 8. ERRORS The installation, assembly and repair of the equipment can only be carried out by qualified technicians. Symbol Description Problem / Checking Er01 – S1 Probe 1 OFF. Lack of temperature probe. Check for probe. • Er02 –... -
Page 38: Probe Chart
Technical Manual MONOBLOC 9. PROBE CHART The probes installed in the equipment (S1, S2, S3 e S4) are NTC 10kΩ@25ºC. -
Page 39: Troubleshooting
Technical Manual MONOBLOC TROUBLESHOOTING Problem Possible Causes How to Proceed Check the power supply Power supply failure Failure in electronic Check the corresponding circuit breaker board Cable damaged or Check the integrity of the electronic board’s disconnect- ed electric circuit Low temperature Adjust the temperature of the set-point. - Page 40 Technical Manual MONOBLOC Problem Possible Causes How to Proceed Low hot water flow Hydraulic circuit blocked Check the condition of the hydraulic circuit rate Absence or incorrect sizing Installation and/or correct dimensioning of of expansion vessel (if leak Water discharge on the expansion vessel is not continuous) safety group...
-
Page 41: System Maintenance
Technical Manual MONOBLOC SYSTEM MAINTENANCE Before undertaking any maintenance operation on the equipment, make sure it is not plugged to the power supply! Wait until the fan comes to a complete stop. WARNING Although the fluid in the cooling circuit is environmentally-friendly, it must not be released into the atmosphere. -
Page 42: Filter Of Reduction Valve
Technical Manual MONOBLOC 11.4. Filter of Reduction Valve To periodically clean the filter of the reduction valve, you should: Shut off the water supply. • Turn anti-clockwise until you remove tension from the spring • Remove the handle • Remove filter and clean •... - Page 43 NOTE: This sheet must be properly filled, signed and stamped by the installer / reseller and returned to ENERGIE EST, Lda., otherwise the warranty will not be validated. Send this installation sheet to warranty@energie.pt, writing the serial number of the equipment as subject.
- Page 44 Technical Manual MONOBLOC NOTES:...
