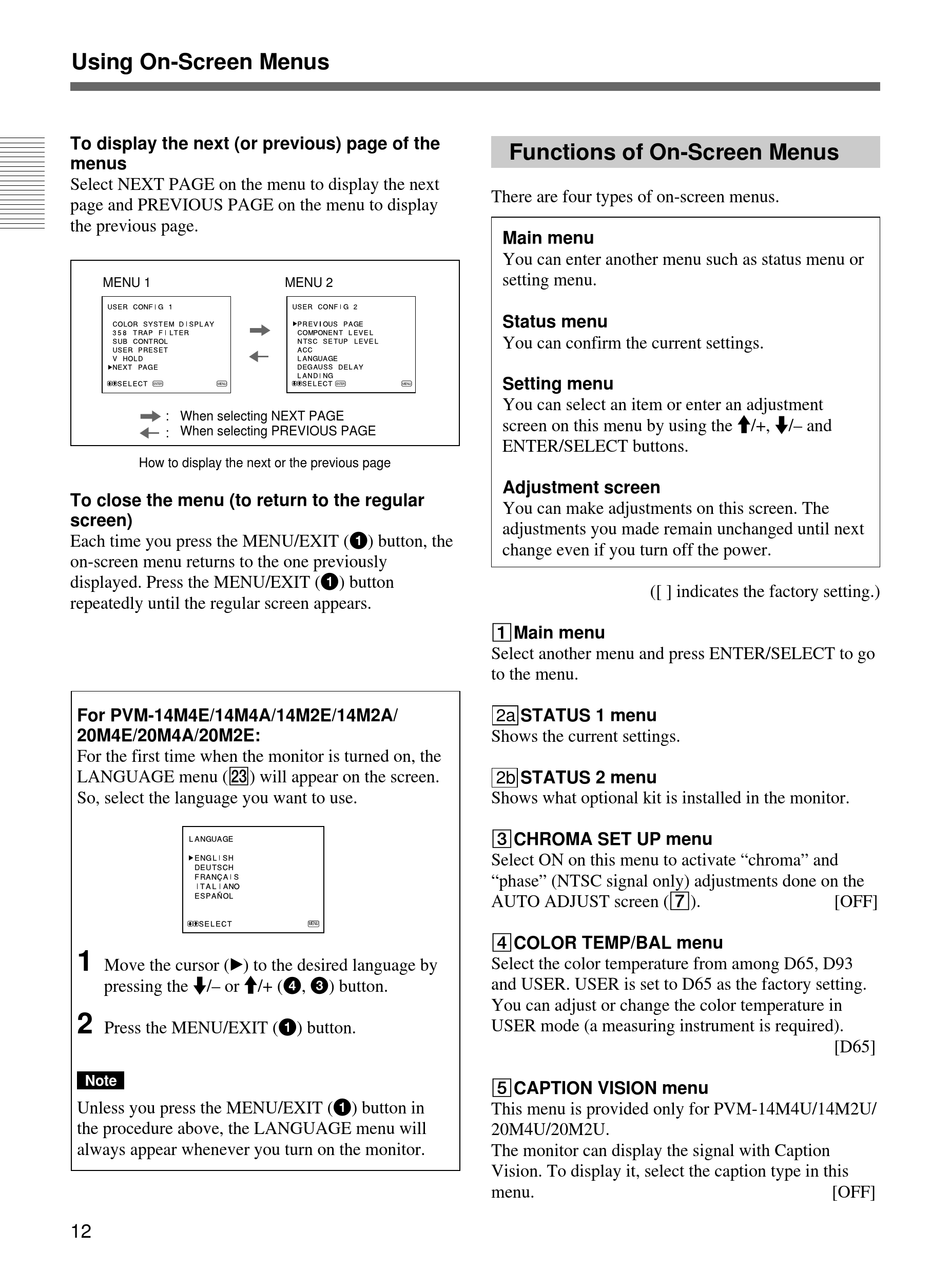

Using On-Screen Menus
To display the next (or previous) page of the
menus
Select NEXT PAGE on the menu to display the next
page and PREVIOUS PAGE on the menu to display
the previous page.
MENU 1
ENTER
MENU
:
When selecting NEXT PAGE
When selecting PREVIOUS PAGE
:
How to display the next or the previous page
To close the menu (to return to the regular
screen)
Each time you press the MENU/EXIT (1) button, the
on-screen menu returns to the one previously
displayed. Press the MENU/EXIT (1) button
repeatedly until the regular screen appears.
For PVM-14M4E/14M4A/14M2E/14M2A/
20M4E/20M4A/20M2E:
For the first time when the monitor is turned on, the
LANGUAGE menu (@£) will appear on the screen.
So, select the language you want to use.
1
Move the cursor (z) to the desired language by
pressing the ./– or >/+ (4, 3) button.
2
Press the MENU/EXIT (1) button.
Note
Unless you press the MENU/EXIT (1) button in
the procedure above, the LANGUAGE menu will
always appear whenever you turn on the monitor.
12
MENU 2
ENTER
MENU
MENU

Functions of On-Screen Menus

There are four types of on-screen menus.
Main menu
You can enter another menu such as status menu or
setting menu.
Status menu
You can confirm the current settings.
Setting menu
You can select an item or enter an adjustment
screen on this menu by using the >/+, ./– and
ENTER/SELECT buttons.
Adjustment screen
You can make adjustments on this screen. The
adjustments you made remain unchanged until next
change even if you turn off the power.
([ ] indicates the factory setting.)
1Main menu
Select another menu and press ENTER/SELECT to go
to the menu.
2a STATUS 1 menu
Shows the current settings.
2b STATUS 2 menu
Shows what optional kit is installed in the monitor.
3CHROMA SET UP menu
Select ON on this menu to activate "chroma" and
"phase" (NTSC signal only) adjustments done on the
AUTO ADJUST screen (7).
4COLOR TEMP/BAL menu
Select the color temperature from among D65, D93
and USER. USER is set to D65 as the factory setting.
You can adjust or change the color temperature in
USER mode (a measuring instrument is required).
5CAPTION VISION menu
This menu is provided only for PVM-14M4U/14M2U/
20M4U/20M2U.
The monitor can display the signal with Caption
Vision. To display it, select the caption type in this
menu.
[OFF]
[D65]
[OFF]
