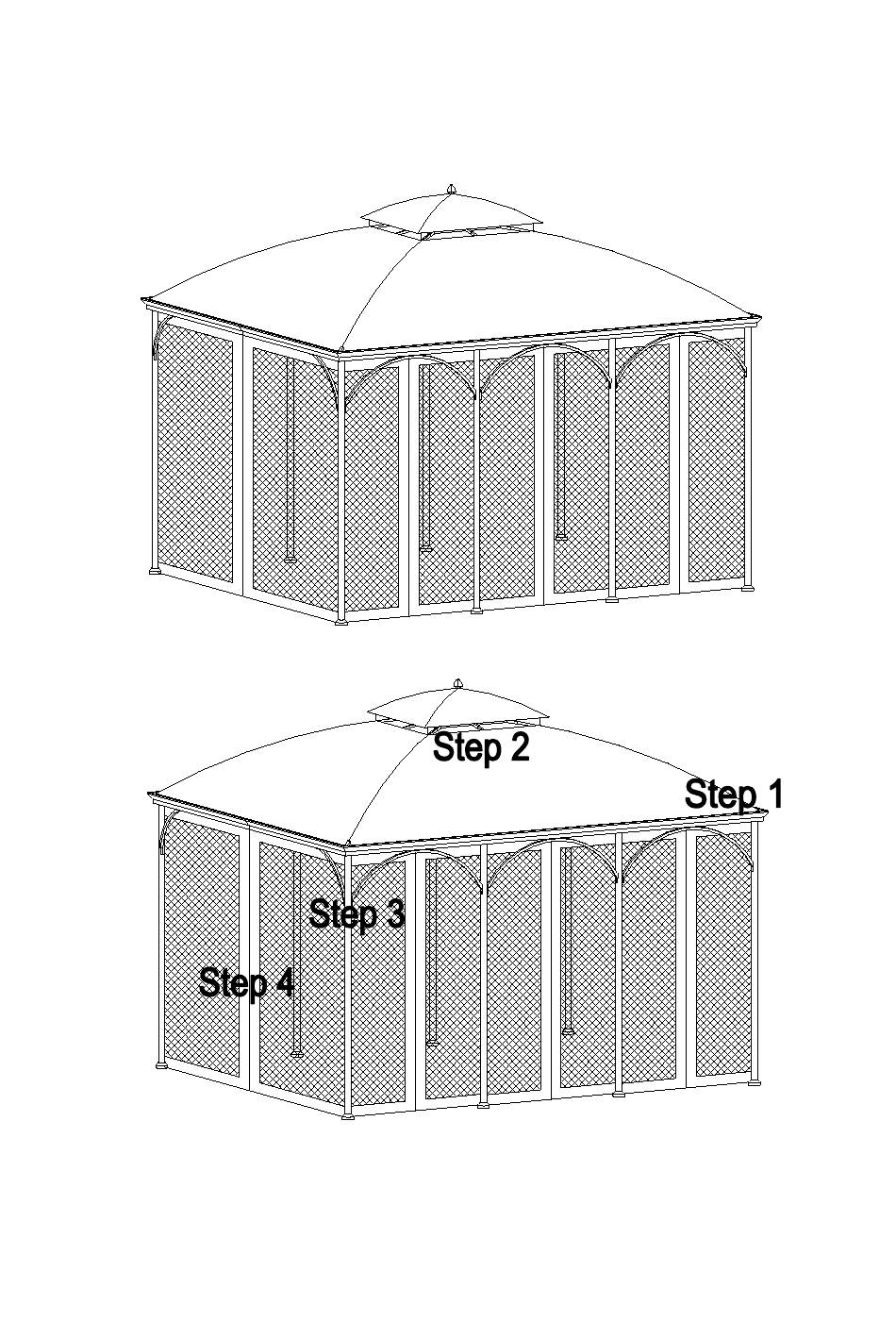

- Page 1 Instruction Manual Item #: L-GZ212PCO-B1...
- Page 2 IMPORTANT: 1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of gazebo construction. 2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry line or electrical wires.
- Page 3 Parts List Finial Small top connector Hook Small top arch beam Upper screen corner connector 1 Upper screen corner connector 2 Upper screen long connector Upper screen short connector Arch beam Long side middle beam Short side middle beam Arch beam connector 1 Arch beam connector 2 Middle beam connector Short decorative slot 1...
- Page 4 Parts List Post connector 1 Post connector 2 Long side arch support beam Short side arch support beam 1 Short side arch support beam 2 Small canopy Large canopy Mosquito netting Hardware Pack 1 M6X15 Bolt 36 PCS M6 Flat washer 52 PCS M6X15 Screw 16 PCS...
- Page 5 Fig.3: Attach post Fig.1: Insert short Fig.2: Insert short Fig.4: Attach mosquito connector 2 (N2) to decorative slot 1 (J1) into decorative slot 2 (J2) into netting pipe (L1) and (L2) long decorative slot (J2), then secure middle long decorative slot 1 (K1). to decorative slot (J1) &...
- Page 6 Fig.12: Put the large canopy Fig.11: Put the small Fig.9: Insert arch Fig.10: Insert small top (Q) onto the top, then insert canopy (P) onto the beam (G1) into arch arch beam (C) into small small top arch beam (C) into small top, then attach beam connector (H1) top connector (B1), and...
- Page 7 Fig.17&17-1: Attach short side arch support beam (O2/O3) to post (M1) & decorative slot (J1) & (J2) by bolt (AA) and washer (BB). Hardware Pack 3 Plastic ring 60PCS Φ6X180MM Stake 24PCS Fig.18: Attach the mosquito netting (R) Fig.19: Fix the assembled gazebo to the to mosquito netting pipe (L2) &...
- Page 8 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or Email customer.care@sunjoygroup.com for assistance.
