9.1.6 Accepting Tokens only
Carry out sections 9.1.3 and 9.1.4 beforehand.
1. Open the service menu
2. Set to TOKEN using menu 2.2 Button settings /
Button 1-12 / Price.
3. Block the €0.05 - €2.00 coins using the coin
mechanism
DIL switches and the table below.
4. The recipe buttons are only activated after a token is
inserted!
Coin DIL + DIL
€ 0,05 S1-1 S1-7
€ 0,10 S1-2 S1-8
€ 0,20 S1-3 S2-1
€ 0,50 S1-4 S2-2
€ 1,00 S1-5 S2-3
€ 2,00 S1-6 S2-4
ON = rejected / OFF = accepted
9.1.7 Cleaning the coin holder
From time to time, the coin mechanism should be
cleaned with a light, damp cloth (lukewarm water
containing a mild cleaning agent).
No further maintenance is necessary.
ATTENTION
The cloth should not be too wet as any liquid that
gets into the device will damage the printed circuit
board.
Do not use any solvents or scouring agents that may
damage the
1. Turn off the device.
2. Take the coin mechanism out of the side panel.

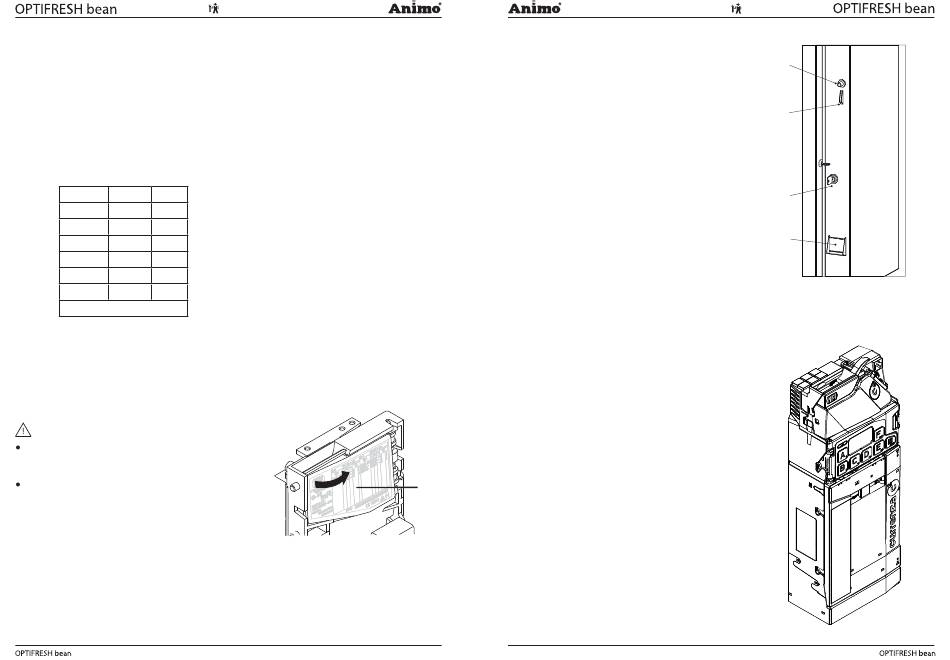

3. Carefully open the coin holder valve (¿ g. 41A) and
hold it open.
4. Clean the coin holder with a cloth and close the
valve again.
5. Turn on the device again.
104
9.2 Coin changer (optional)
The OptiFresh is available with an optional coin
changer suitable for euros (€0.05 - €2.00).
Other currencies are available on request.
The coin changer has 6 coin tubes (€ 0.05 / 2x 0.10 /
0.20 / 0.50 / 1,00).
1. Return button
2. Coin insert
3. Lock
4. Change
9.2.1 Troubleshooting
In order to diagnose the cause of the fault in detail,
please refer the NRI technical Documentation.
A
Fig. 41
03/2010 Rev. 0.1
03/2010 Rev. 0.1
1
2
3
4
Fig. 42
Fig. 43
