9. PAYMENT SYSTEMS

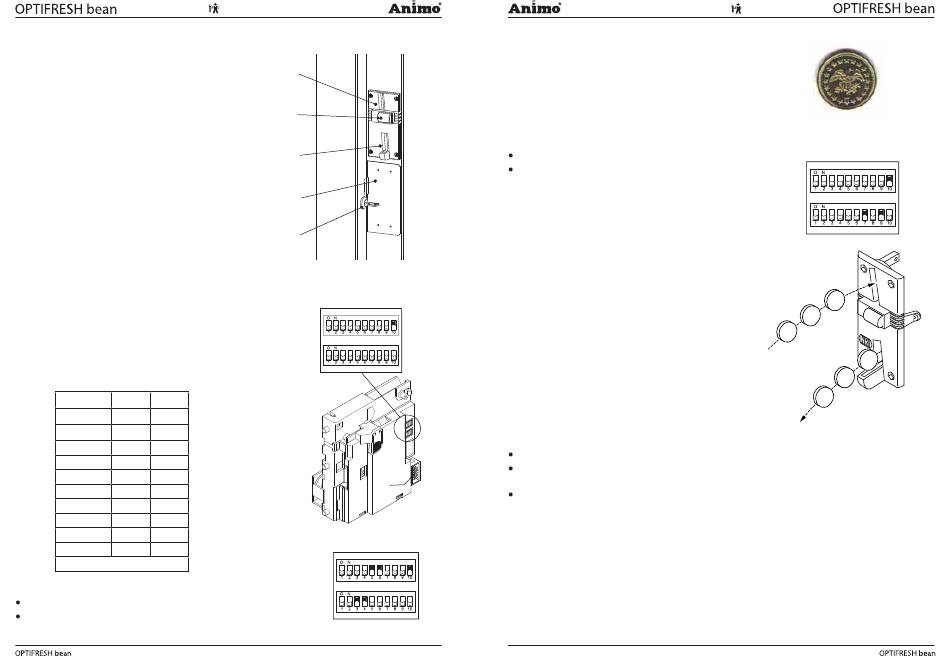

9.1 Coin mechanism (optional)
The OptiFresh is available with an optional coin
mechanism suitable for euros (€0.05 - €2.00). Other
currencies are available on request.
The coin mechanism can also easily be programmed to
accept tokens.
It is also possible to have an existing device ¿ tted
with the coin mechanism. The right-hand side panel is
replaced by a wider side panel, which houses the coin
mechanism and slot (¿ g. 25).
1. Coin insert
2. Return button
3. Return slot
4. Money drawer
5. Door lock (also locks the money drawer)
9.1.1 Standard confi guration
Fig. 24 shows the standard con¿ guration of the DIL
switches, S1-10 ON
The coin mechanism is connected to the device with a
connector (Fig. 36A).
9.1.2 Rejecting coins
If desired, certain types of euro coins can be rejected by
using DIL-Switch block S1 + S2 (¿ g. 36).
Coin DIL + DIL
€ 0,05 S1-1 S1-7
€ 0,10 S1-2 S1-8
€ 0,20 S1-3 S2-1
€ 0,50 S1-4 S2-2
€ 1,00 S1-5 S2-3
€ 2,00 S1-6 S2-4
Token 607 - S2-5
Token Eagle - S2-6
Token new - S2-7
Token new - S2-8
ON = rejected / OFF = accepted
Example: Reject €1 and €2 euro coins (¿ g. 37)
S1-5, S2-3 -> ON (€ 1,00 rejected)
S1-6, S2-4 -> ON (€ 2,00 rejected)
1
2
3
4
5
S1
S2
A
S1
S2
102
9.1.3 Activating existing tokens
The token shown here (¿ g. 38) is programmed in
the coin mechanism as standard.
Con¿ gure the service menu as described in the
following section from point 4.
Token Art. No. : 03344
9.1.4 Programming a new token
Required: 10 tokens
Attention: remember the DIL switch positions
for any rejected coins. Leave S1.10 ON!
1. The following DIL switches on Switch Block S2
should be facing upwards and switch to ON (¿ g. 39).
a) First switch S2-9 Teach Mode to ON
b) Then, switch S2-7 coin channel 6 (TM) to ON
2. Insert a minimum of ten tokens (Fig. 40). These
Fig. 35
ten tokens should not be the same. After the ten
tokens have been inserted the (internal) reject coil
will be automatically drawn.
3. End programming by switching the DIL switch S2-9
downwards to OFF. If saved successfully, the reject
coil will be drawn once again. After this, switch S2-7
OFF again. (To halt programming, ¿ rst switch S2-7
and then S2-9 to OFF).
4. Service menu: change coin channel 6 (menu item
2.5 Payment system) from €2,00 to TOKEN.
5. The device now accepts the token as a method of
payment.
9.1.5 Accepting Euros and Tokens
Carry out section 9.1.3 and 9.1.4 beforehand.
Open the service menu
Set a price using menu 2.2 Button settings / Button
1-12 / Price (e.g. € 0.50)
The recipe buttons are activated after suf¿ cient
euros or tokens have been inserted!
Fig. 36
Fig. 37
03/2010 Rev. 0.1
03/2010 Rev. 0.1
Fig. 38
S1
S2
Fig. 39
10x
10x
Fig. 40
