5.2.2 Servicing
For an estimated total of < 25000 cups a year we recommend one service a year.
For an estimated total of > 25000 cups a year we recommend two services a year.
Service activity Time
Descale 45 min.
Descale boiler system (see service manual).
Use valve seal set if necessary.
Grinder 10 min.
Empty the grinder. Fill the bean reaservoir
with two caps of cleaner. Hold a emty cup
under the sprout and grind the grinder empty
Brewer 15 min.
Replace a number of parts.
Clean the brewer.
Check that it is working correctly.
Adjust brewer unit tensile strength if
necessary.
Mixer(s) 10 min.
Check Motor axis for dirt and wear and tear.
Grease water connection using silicone grease).
Replace mixer rotor.
Replace green mounting ring.
Clean mixer parts.
Inspection (general)
Check that the entire machine is working.
Check parts for damage/wear and tear and/or leaks.
Cleaning (general)
Brewer and mixer unit as for weekly cleaning.
The entire interior and exterior of the machine.
Product Art.No. OptiFresh
1
Animo descaler 49007
Valve seal set 99673
2x
Grinder cleaner 1000151
Permanent ¿ lter 03488
1x
Wiper 03380
1x
Seals 03375
1x
Animo cleaner 49009
03254
-
03253
-
Animo cleaner 49009
88 03/2010 Rev. 0.1
WARNING
• Do not leave the device during maintenance work.
• When descaling always follow the instructions for
the descaler used.
• It is advisable to wear safety goggles and protective
gloves when descaling.
• After descaling, allow the device to run a minimum
2 3 4
of three times.
• Wash hands thoroughly after descaling.
• The device must not be submerged or hosed down.
3x 3x 4x
5.3 Descaling instructions
Animo supplies Descaler in the following quantities:
• Descaler 48 x 50g sachets (Art. No. : 49007)
• Descaler 1kg tube (Art. No. 00009)
Time required, products and tools:
• Time: approximately 45 minutes
1x 1x 1x
• Animo Descaler x 2 sachets or 8-10 dessert spoons
1x 1x 1x
• Drip tray of approximately 1.5 litres
1x 1x 1x
• Bucket or basin at hand
1. Switch on the device and let it warm up.
The advantage of this is that the reservoir is properly
warmed in advance, which achieves a better result
during descaling.
2. Switch off the device and pull the plug out of the
1x 1x 2x
socket.
3. Dispense one litre of hot water from the water
reservoir using the tap at the front of the device
(¿ g. 22-1).
1x 1x 2x
4. Remove the rear plate (¿ g. 22-2) and unscrew the
reserve lid (¿ g. 22-3). Take care: HOT!
5. Before going any further, read the warnings and
instructions for use on the Animo Descaler sachets
before dissolving two 50g sachets in the measuring
jug (8-10 dessert spoons).
.

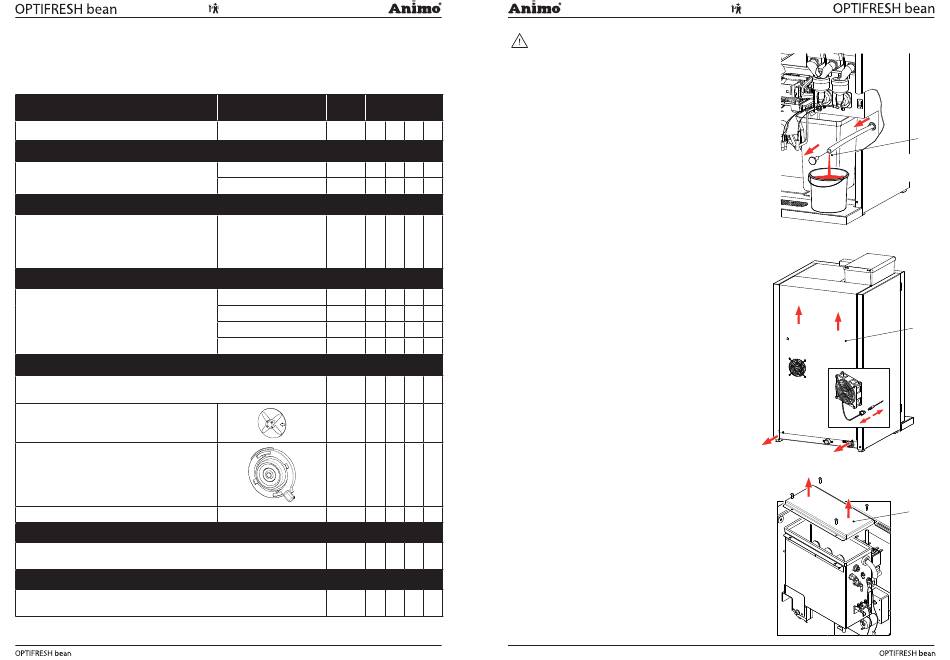

Table 6
03/2010 Rev. 0.1
Attention:
Hot !
Fig. 22
89
1 1
2
3
