Lectrosonics SMWB Quick Start Manual page 6

Record Operating Instructions
• Install battery(s)
• Insert microSDHC memory card
• Turn power on
• Format memory card
• Connect microphone and place it in the position where it will be used.

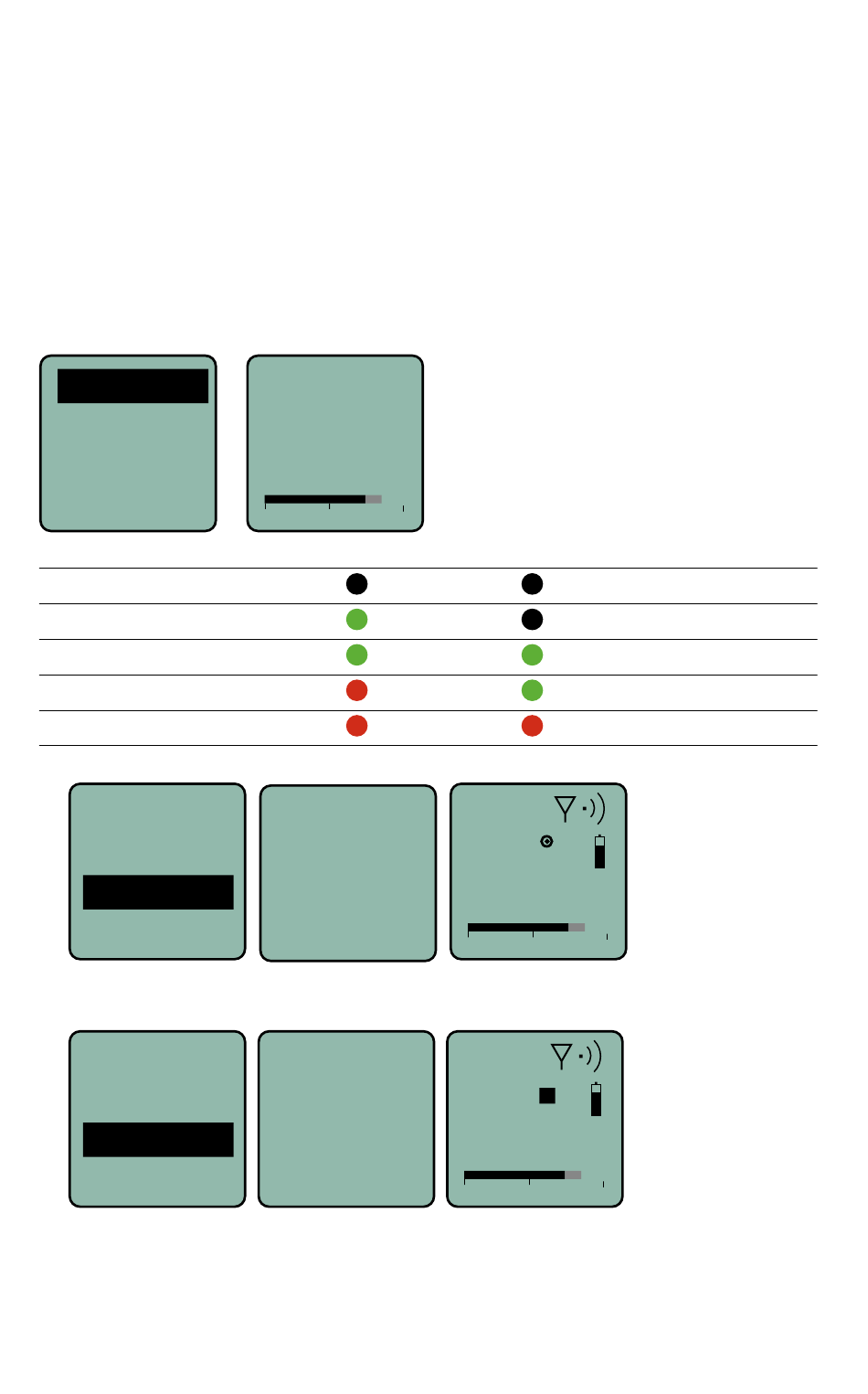

• Have the user talk or sing at the same level that will be used in the
production, and adjust the input gain so that the -20 LED blinks red on
louder peaks
Gain
Freq.
Rolloff
Compat
Signal Level
Less than -20 dB
-20 dB to -10 dB
-10 dB to +0 dB
+0 dB to +10 dB
Greater than +10 dB
• Press MENU/SEL and choose Record from the menu
Files
Format
Record
Gain
• To stop recording, press MENU/SEL and choose Stop; the word SAVED
appears on the screen
Files
Format
Stop
Gain
To play back the recordings, remove the memory card and copy the files onto
a computer with video or audio editing software installed.
6
Gain
25
-40 -20 0
-20 LED
Off
Green
Green
Red
Red
RECORD-
ING
SAVED
Use the UP and DOWN
arrow buttons to adjust
the gain until the -20
LED blinks red on
louder peaks
-10 LED
Off
Off
Green
Green
Red
b 19
A
E
REC
503.800
-40
-20 0
b 19
A E
503.800
-40 -20
0
