SMWB Series
The SMWB transmitter delivers the advanced technology and features of Digital
Hybrid Wireless and combines 24-bit digital audio chain with an analog FM
®
radio link to eliminate a compandor and its artifacts, yet preserves the extended
operating range and noise rejection of the finest analog wireless systems. DSP
"compatibility modes" allow the transmitter to also be used with a variety of
analog receivers by emulating the compandors found in earlier Lectrosonics
analog wireless and IFB receivers, and certain receivers from other manufactur-
ers (contact the factory for details).
Plus, the SMWB has a built in recording function for use in situations where RF
may not be possible or to work as a stand alone recorder. The record function
and transmit functions are exclusive of each other - you cannot record AND
transmit at the same time. The recorder samples at 44.1kHz rate with a 24 bit
sample depth. (the rate was selected due to the required 44.1kHz rate used for
the digital hybrid algorithm). The micro SDHC card also offers easy firmware
updates capability without the need for a USB cable.

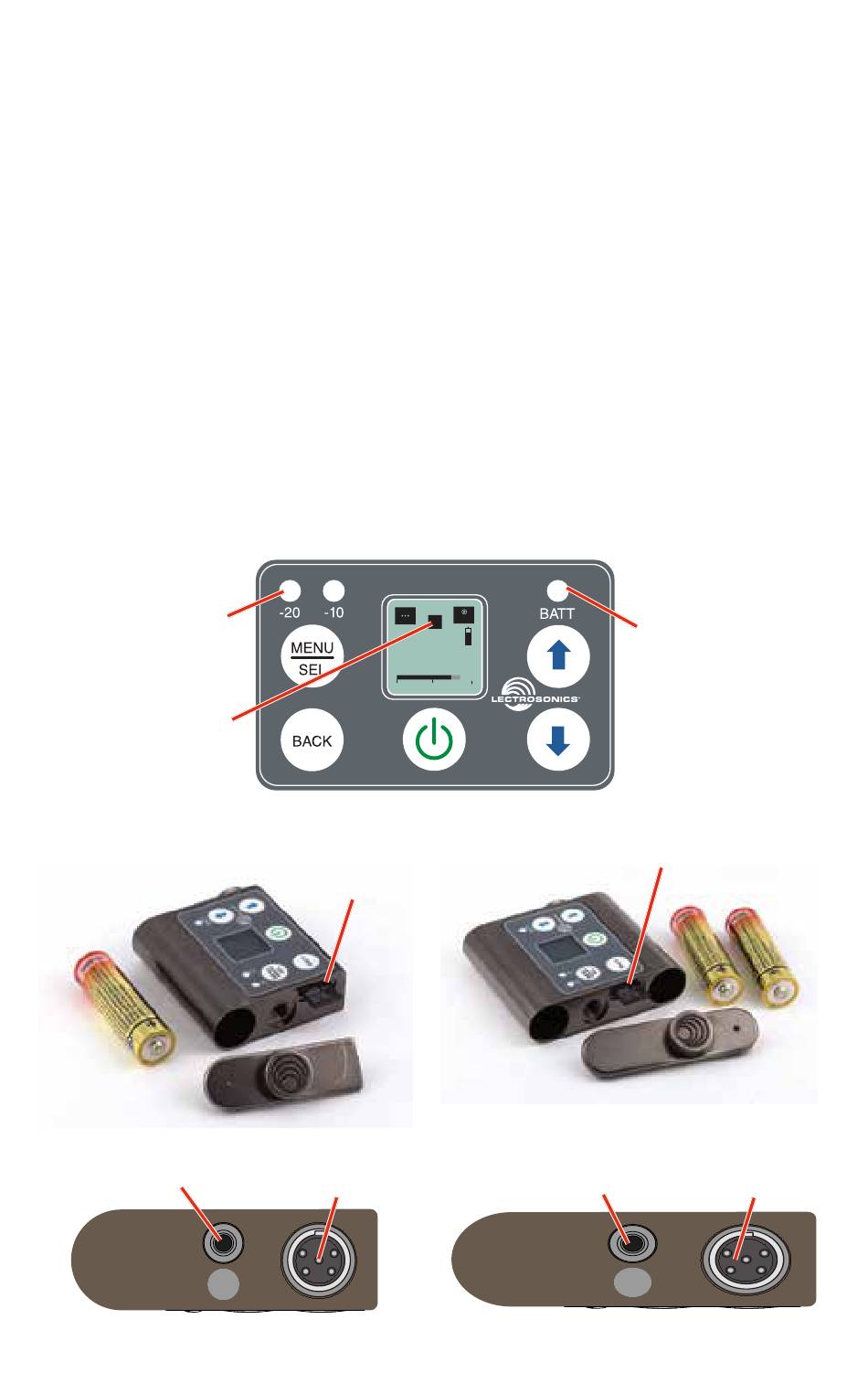

Controls and Functions

Modulation
Battery
Indicators
REC
Status LED
Indicates micro
-40 -20 0
SDHC card present
and recording
status (stopped/not
recording)
microSDHC
memory card
port
microSDHC memory
card port
Audio
Audio
Antenna
Antenna
Input
Input
Port
Port
Jack
Jack
