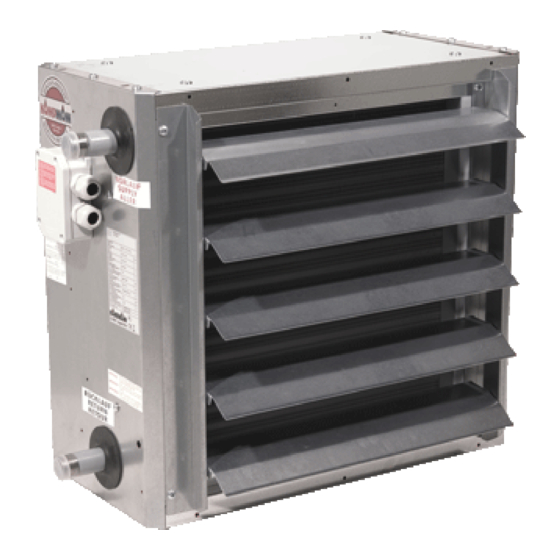

- Page 1 TIP Unit Heaters Unit heater with 2-stage, three-phase motor Unit heater with 1-stage single-phase motor Assembly and installation instructions Keep these instructions in a safe place for future use! Kampmann.de/installation_manuals I369 11/17 EN SAP-Nr. 1070634...
-
Page 2: Table Of Contents
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions Contents 1. General ......................4 1.1 About these instructions ..............4 1.2 Explanation of symbols ...............4 1.3 Copyright protection ................5 1.4 Customer Service .................5 2. - Page 3 TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 11. Maintenance and cleaning ..............20 11.1 Housing ....................20 11.2 Heat exchanger................20 11.3 Motor ....................20 12. Operational problems ................22 13. Disposal ....................23 14.
-
Page 4: General
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 1. General 1.1 About these instructions These instructions ensure the safe and efficient handling of this equipment. These instructions form an integral part of the unit and must be kept in the direct vicinity of the unit and available to personnel at all times. -
Page 5: Copyright Protection
The contents of this manual are protected by copyright. Their use is permitted when using the product. Any further use is not permitted without written permission from the manufacturer. 1.4 Customer Service Our Customer Service team is available for technical information: Kampmann GmbH Address Friedrich-Ebert-Str. 128–130 49811 Lingen (Ems) Phone... -
Page 6: Safety
2.1 Intended use Applications Kampmann TIP unit heaters are constructed in line with the state of the art and recognised safety regulations. Nevertheless, their use can result in danger to people or... -
Page 7: Limits Of Operation And Use
TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions The installer of these units should have adequate knowledge of the following gained from specialist vocational training: safety and accident prevention regulations guidelines and recognised technical regulations, i.e. -
Page 8: Safety Information
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions Important: Note the maximum flow temperature to protect the fan! Long periods of fan idleness with high water temperatures can lead to impermissible heating of the fan motor. - Page 9 TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions Please read these instructions in full to ensure correct and proper installation and the correct operation of TIP unit heaters. Please note the following safety-relevant information Disconnect all parts of the system that are being worked on.
-
Page 10: Transport And Storage
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 3. Transport and storage Please note all applicable safety and accident prevention regulations. Attention! Risk of sharp edges! Wear gloves, safety shoes and suitable protective clothing during transportation! Caution! Do not carry the TIP by the louvre slats! Use suitable means of transport to avoid any damage to your... -
Page 11: Technical Data
TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 5. Technical data Technical data Series Enclosure type IP 54 IP 54 IP 54 IP 54 Water content l 1.6 - 2.6 2.2 - 3.8 3.4 - 5.6... -
Page 12: Hydraulic Connections
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 7. Hydraulic connections Connect the TIP as per the labels on the product. Route the pipes so that no mechanical stresses are transferred to the heat exchanger and the unit can be accessed with ease for maintenance and repair work. -
Page 13: Electrical Wiring
TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 8. Electrical wiring 8.1 Safety information The electrical wiring of this product requires technical knowledge of electrical engineering. This knowledge, generally learned in vocational training in one of the fields stated, is not described separately here. -
Page 14: Electrical Wiring
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 8.3 Electrical wiring Damage can be caused by the use of incompatible switching devices and inadequate protective equipment. The manufacturer does not accept any warranty in these cases. - Page 15 TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions Max. number of connectible TIP unit heaters Description Type I max. 54 _ _ 36 55 _ _ 36 56 _ _ 36 57 _ _ 36 2-stage, three-phase controller...
- Page 16 1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions Three-phase wiring diagrams 2-stage three-phase controller to further unit heaters Terminal strip on the unit heater Connection to 2-stage switch unit 5-stage three-phase controller 5-stage three-phase controller Terminal strip on the...
-
Page 17: Single-Phase Motor
TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 8.5 Single-phase motor The fan motors (230 V/50 Hz) are equipped with a single-phase winding with capacitor auxiliary phase. The speed can be reduced with a 7-stage single-phase controller by reducing the voltage. -
Page 18: Commissioning
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions Max. number of connectible TIP single-phase unit heaters per controller TIP type series Type I max. 54 _ _ 31 55 _ _ 31 56 _ _ 31 57 _ _ 31... -
Page 19: Post-Commissioning Checks
TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 9.3 Post-commissioning checks Perform the following checks after commissioning the TIP unit heaters: Are all the fans switched off by the thermal contact? To do this, disconnect a wire from terminal TK of the stage switch (Danger: 230 V!). -
Page 20: Decommissioning (Longer Term)
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 10. Decommissioning (longer term) Switch off all electrical components. If there is a risk of frost, it is essential that the heat exchanger and pipework are protected from freezing by the use of antifreeze! 11. - Page 21 TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions The unit heater's external rotor motor is maintenance-free. The motor's ball bearing runs, sealed on both sides, are greased for life. Deposits on the blades of the fan and the fan guard reduce the air volume.
-
Page 22: Operational Problems
1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 12 Operational problems Fault Possible cause Remedy Clean the unit, replacing the unit if it is still Impeller not running unbalanced after cleaning Rotating parts unbalanced concentrically... -
Page 23: Disposal
TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions 13. Disposal Recycle dismantled components if no return or disposal agreement has been concluded: Scrap metals. Recycle plastics. Sort and dispose of other components. IMPORTANT NOTE! Environmental hazard from incorrect disposal! Incorrect disposal can present a hazard to the environment. -
Page 24: Declaration Of Conformity
Luft-temperatur 20 °C (Trockenkugel) Einlass 65 °C für 4-Rohrsysteme Wassertemperatur 10 °C für 4-Rohrsysteme Sound power test At ambient conditons without water flow Test Schallleistungspegel Bei Umgebungsbedingungen ohne Wasserdurchsatz Contact Details Kampmann GmbH Kontaktinformationen Friedrich-Ebert-Straße 128-130, D-49811 Lingen (Ems), Germany... - Page 25 TIP unit heaters 1.57 Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions...
- Page 26 1.57 TIP unit heaters Unit heaters with 2-stage three-phase motor / Unit heaters with 1-stage single-phase motor Installation and operating instructions...
- Page 28 Kampmann.co.uk/tip Kampmann GmbH Kampmann UK Ltd. Friedrich-Ebert-Str. 128 - 130 Dial House, Govett Avenue 49811 Lingen (Ems) Shepperton, Middlesex, TW17 8AG Germany Great Britain +49 591 7108-660 +44 (0)1932 228592 +49 591 7108-173 +44 (0)1932 228949 export@kampmann.de info@kampmann.co.uk Kampmann.eu Kampmann.co.uk...
