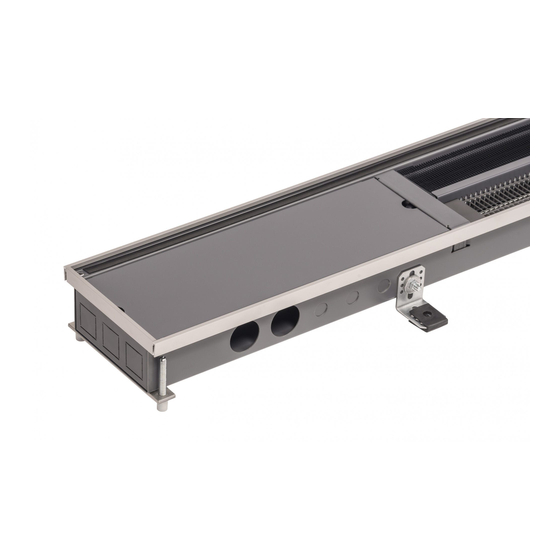

Ultra-small trench heater with ec tangential fan
Hide thumbs
Also See for Katherm QK nano:
Table of Contents
Related Manuals for Kampmann Katherm QK nano
Summary of Contents for Kampmann Katherm QK nano
- Page 1 Katherm QK nano Ultra-small trench heater with EC tangential fan Assembly and installation instructions Keep these instructions in a safe place for future use! Kampmann.de/installation_manuals I529/09/18 EN I SAP-Nr. 1254735...
- Page 2 Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions Key to symbols: Caution! Danger! Non-compliance with this information can lead to serious personal injuries or damage to property. Danger from...
-
Page 3: Table Of Contents
Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions Contents 1. Intended use ................. 2. Safety information ............... 3. Scope of delivery ................4. Levelling ..................5. Water connection ................. -
Page 4: Katherm Qk Nano
Assembly and installation instructions 1. Intended use Kampmann Katherm QK nano are built in line with the state of the art and recognised safety regulations. Nevertheless their use can result in danger to people or damage to the unit or other material property if they are not properly installed or properly used. - Page 5 Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions Limits of operation and use Limits of operation Min./max. water temperature °C 15-90 Min./max. air intake temperature °C 15-40 Min./max. air humidity 15-75 Max.
-
Page 6: Safety Information
Modifications to the unit Do not undertake any modifications or upgrades on Katherm QK nano without discussing them with the manufacturer as they can impair the safety and operation of the unit. Do not carry out any measures on the unit not described in this manual. -
Page 7: Scope Of Delivery
Caution: Do not remove bracing during installation and operation. Example shown: Katherm QK nano, • Arrange the Katherm QK nano with the convector on the window side. 24V model Caution: The height adjustment feet are already fitted to the floor trench. -
Page 8: Water Connection
Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions 5. Water connections • Use the pipe openings for the water-side connection. Screw the connecting accessories until tight onto the convector connections. -
Page 9: Screeding
Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions 6. Screed works Before commencing screeding, check whether • the water connection has been correctly done, • the electrical connection has been correctly done, •... -
Page 10: Connection Openings Pipe Openings
Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions 7. Connection openings Pipe openings Katherm QK nano, 24 V electromechanical model Model Room-side connection Katherm QK nano, 24 V electromechanical Window side... - Page 11 Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions Katherm QK nano, KaControl or 230 V electromechanical model Model Room-side connection Katherm QK nano, KaControl or 230 V electromechanical model...
-
Page 12: Number Of Height Adjustment Feet And Raised Floor Feet
2700 9. Maintenance Notes Maintenance of the Katherm QK nano trench heater should only be carried out by qualified personnel trained in compliance with the installation and operating instructions as well as any regulations currently in force. Regularly maintain and inspect Katherm QK nano units to ensure their proper function and performance. -
Page 13: Electrical Wiring
(e.g. a lockable switch with a contact opening of at least 3 mm up to a rated voltage of 480 V). No protective measures are indicated in the Kampmann wiring diagrams. These must be provided additionally when installing the system and when connecting the units in accordance with VDE 0100 and the regulations of each of the respective energy supply companies. -
Page 14: Overview Of Controls
Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions 10.1 Overview of controls The unit is available in a series of different electrical versions. Connect the unit via a terminal strip in the electrical junction box, located on the side of the unit‘s water connection. -
Page 15: Electromechanical Model
The operating voltage must be provided by a central on-site 24 V DC voltage supply. Kampmann offers a range of switching power units in different output classes as accessories for the voltage supply (24 V DC). The fan automatically switches off in the event of a motor fault. - Page 16 Assembly and installation instructions The clock thermostat 30456 permits the operation and temperature control of 24 V electromechanical Katherm QK nano units. The room temperature is set by sensor-controlled functional keys. Complete with 10-stage fan speed adjustment in manual and automatic operating mode, including automatic summer/winter changeover and a day or week program.
-
Page 17: 230 V Electromechanical Model
Room thermostat with infinitely continuous fan speed setting, in a flat surface- mounted housing, white, with thermal feedback; for the continuously variable parallel control of max. 10 Katherm QK nano 230 V electromechanical models, room temperature and fan presetting using dials; temperature setting range Fig.: Room thermostat... - Page 18 Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions Cabling - Room thermostat control, type 342924 Lay shielded cables (e.g. IY(ST)Y, 0.8 mm), separately from high-voltage cables. W1: Power supply...
-
Page 19: Kacontrol Model
Assembly and installation instructions 10.4 KaControl model Applications of the KaController The Katherm QK nano and associated room control units can only be used: • indoors (for instance in residential properties and offices, showrooms etc.) KaControllers should not be used •... - Page 20 External changeover the unit can be changed by an external potential- free contact. The contact acts on input DI2/GND. 4-pipe Katherm QK nano is configured as a 2-pipe heating unit. Temperature detection on the The units have an air intake temperature sensor unit for room temperature setting.
- Page 21 Installation of the control unit Installation/Dismantling Electrical wiring • Connect the KaController to the nearest Katherm QK nano in line with the wiring diagram. The maximum BUS length between the KaController and the unit is 30 m. • The respective Katherm QK nano automatically becomes the master unit in the control circuit when a KaController is connected to it.
-
Page 22: Single-Circuit Controls
Total length of BUS cable between the room control unit and master unit max. 30 m Total length between the Katherm QK nano and the external potential-free contacts e.g. window contact etc. max. 10 m Total lengths between Katherm QK nano and separate room temperature sensor... - Page 23 Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions Cabling with control electronics type 3231131 Lay shielded cables (e.g. IY(ST)Y, 0.8 mm), separately from high-voltage cables. Lay shielded, paired cables, e.g. CAT5 (AWG23) of at least the same value, separately from high-voltage cables.
- Page 24 Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions Cabling with control electronics type 3231132 Lay shielded cables (e.g. IY(ST)Y, 0.8 mm), separately from high-voltage cables. Lay shielded, paired cables, e.g. CAT5 (AWG23) of at least the same value, separately from high-voltage cables.
- Page 25 Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions KaControl cabling - BMS control Lay shielded, paired cables, e.g. CAT5 (AWG23) of at least the same value, separately from high-voltage cables.
- Page 26 Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions EC fans KaControl Operation of control unit The operation of the unit can be changed using the control unit. There are two models of control unit. One with side keys and one without.
- Page 27 Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions LCD display symbols Display of setpoint room temperature Current time Timer program enabled Weekday Alarm Selected function is locked Eco mode...
-
Page 28: Declaration Of Conformity
Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions 11. Declaration of Conformity Informaton requirements for fan coils according to regulaton (EU) No 2016/2281 Informationsanforderungen für Fan Coils gemäß Verordnung (EU) Nr. 2016/2281... - Page 29 Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions...
- Page 30 Katherm QK nano – .4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions...
- Page 31 Katherm QK nano – 4.42 Ultra-small trench heater with EC tangential fan Ready-to-install convector-based floor trenches Assembly and installation instructions...
- Page 32 Kampmann.eu/Katherm-QK-nano Kampmann.co.uk/Katherm-QK-nano Kampmann GmbH Kampmann UK Ltd. Friedrich-Ebert-Str. 128 - 130 Dial House, Govett Avenue 49811 Lingen (Ems) Shepperton, Middlesex, TW17 8AG Germany Great Britain +49 591 7108-660 +44 (0)1932 228592 +49 591 7108-173 +44 (0)1932 228949 export@kampmann.de info@kampmann.co.uk Kampmann.eu...
