CENTRE COLUMN

Setting the angle of the centre column
ATTENTION
THE ANGLE SETTING OF THE CENTRE COLUM WITH
TELESCOPE AND CLAMP LEVER CAN ONLY BE CARRIED
OUT WHEN A PATIENT IS IN THE AID.
Adjusting the angle of the centre column
ATTENTION
(3) IN ORDER TO ADJUST THE CENTRE COLUMN YOU
MUST HOLD THE PATIEND AND/OR THE CENTRE CO-
LUMN WITH BOTH HANDS WHILE YOU ACTIVATE THE RE-
LEASE LEVER (A).
ATTENTION
THE ANGLE ADJUSTMENT OF THE CENTRE COLUMN
WITH GAS PRESSURE SPRING CAN ONLY OCCUR WHILE
STANDING STILL AND WITH ACTIVATED WHEEL LOCK
(DRUM BRAKE AND BACK CASTERS).
• Press the release lever of the gas pressure spring
down with your foot,
• place the centre column in the desired angle and
• let go of the release lever (A).

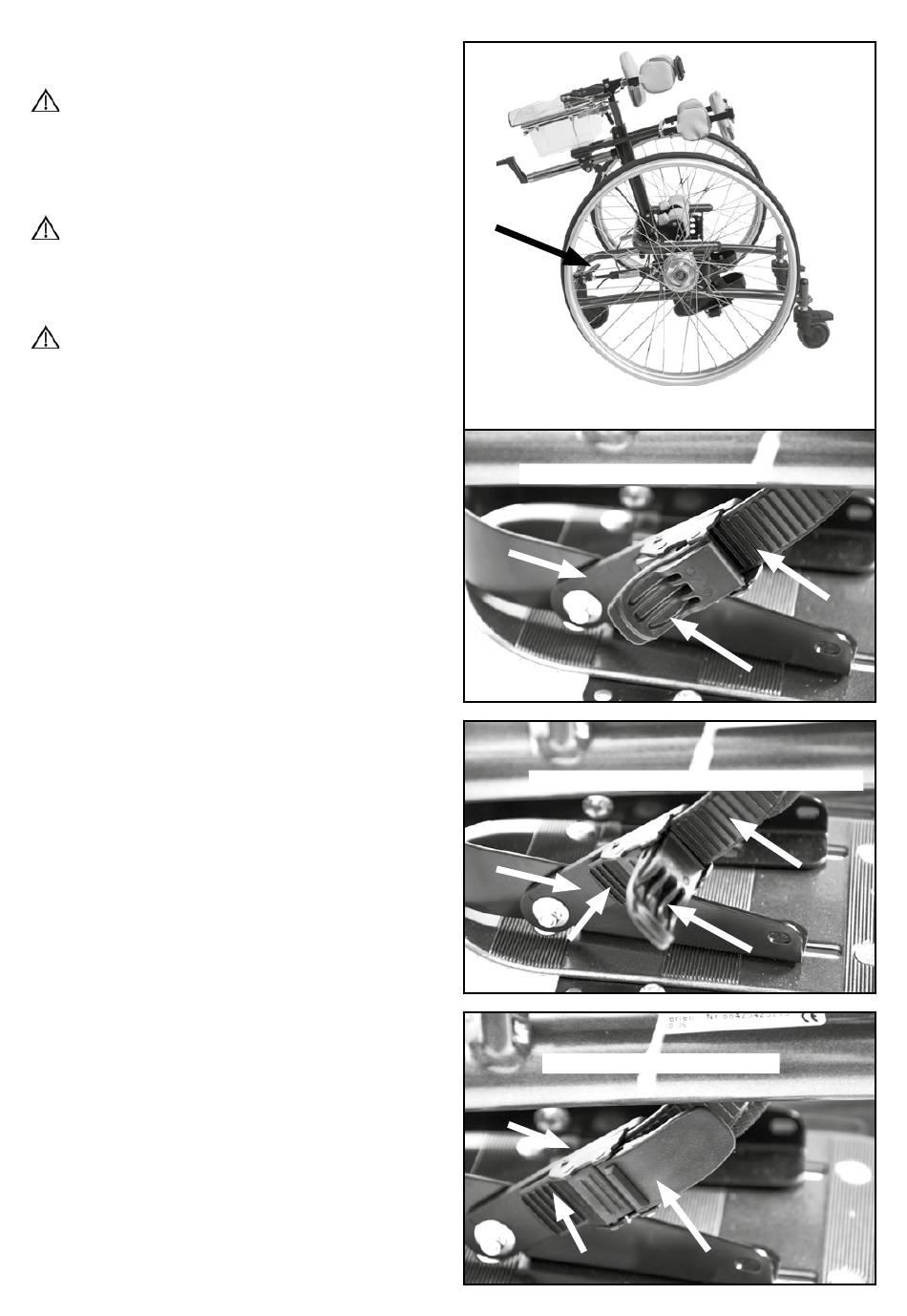

3.4 FOOT STRAPS

To close the foot straps:
• (2) The clasp (A) of the fastener (B) must be open
(see picture).
• (3) Guide the strap (C) from the front in the fastener
(B), without tightening it too much. When closing the
clasp (A) the strap (C) tightens.
• Push the strap (C) as far as needed in the fastener (B)
and
• (4) close the clasp (A).
To tense the foot straps:
• Put the clasp (A) out of the half open position
(picture 2) in the closed position (picture 3)
• repeat the process until the user's foot is tightly
enclosed by the strap
To open the foot straps:
• (4) Open the clasp (A) all the way (see picture 2)
and
• pull the strap (C) all the way out of the fastener (B).
(2)
(A)
(2)
foot straps open
(B)
(3)
foot straps half open/closed
(B)
(C)
(4)
foot straps closed
(B)
(C)
User Manual
(C)
(A)
(C)
(A)
(A)
