3.11 WHEEL LOCK

3.11.1 Drum brake

Normally the control lever of the drum brake is attached to
the therapy table.
To lock/unlock the drum brake:
(1+2) Depending on the position of the control lever, in
•
order to lock the drum brake, pull the brake lever (A)
up so far until the small locking lever (B) snaps into the
groove (C).
• The drum brakes are now blocked.
• (1+2) To loosen the blockage pull the brake lever (A)
a little further up, so that the small locking lever (B)
unlocks out of the groove (C).
• Then release the brake lever (A).
• The drum brakes are now deactivated.
ATTENTION
To secure the mobile standing device always use, in
addition, the locking levers of the back casters (regard the
corresponding chapter).

3.11.2 Displacing the brake control lever

To displace the lever:
• (3) Loosen the clamp lever (A) by lifting up,
• pull the whole control lever (B) back, out of the holder
(C),
• (2) place the control lever (B) in the alternative holder
(D) on the centre column and
• tighten this clamp lever (E).
• The height adjustment of the holder on the centre
column is described in the service record.

3.11.3 Back casters with locking lever

To lock/loosen the back casters:
• (4) Push the locking lever (A) with your foot back and
down.
• To release the brake push the upward sticking pedal (A)
back into its original position.
ATTENTION
SECURING THE MOBILE STANDING DEVICE SOLELY WITH
THE BRAKES OF THE BACK CASTERS IS NOT ENOUGH! IN
ADDITION ALWAYS USE THE DRUM BRAKES.

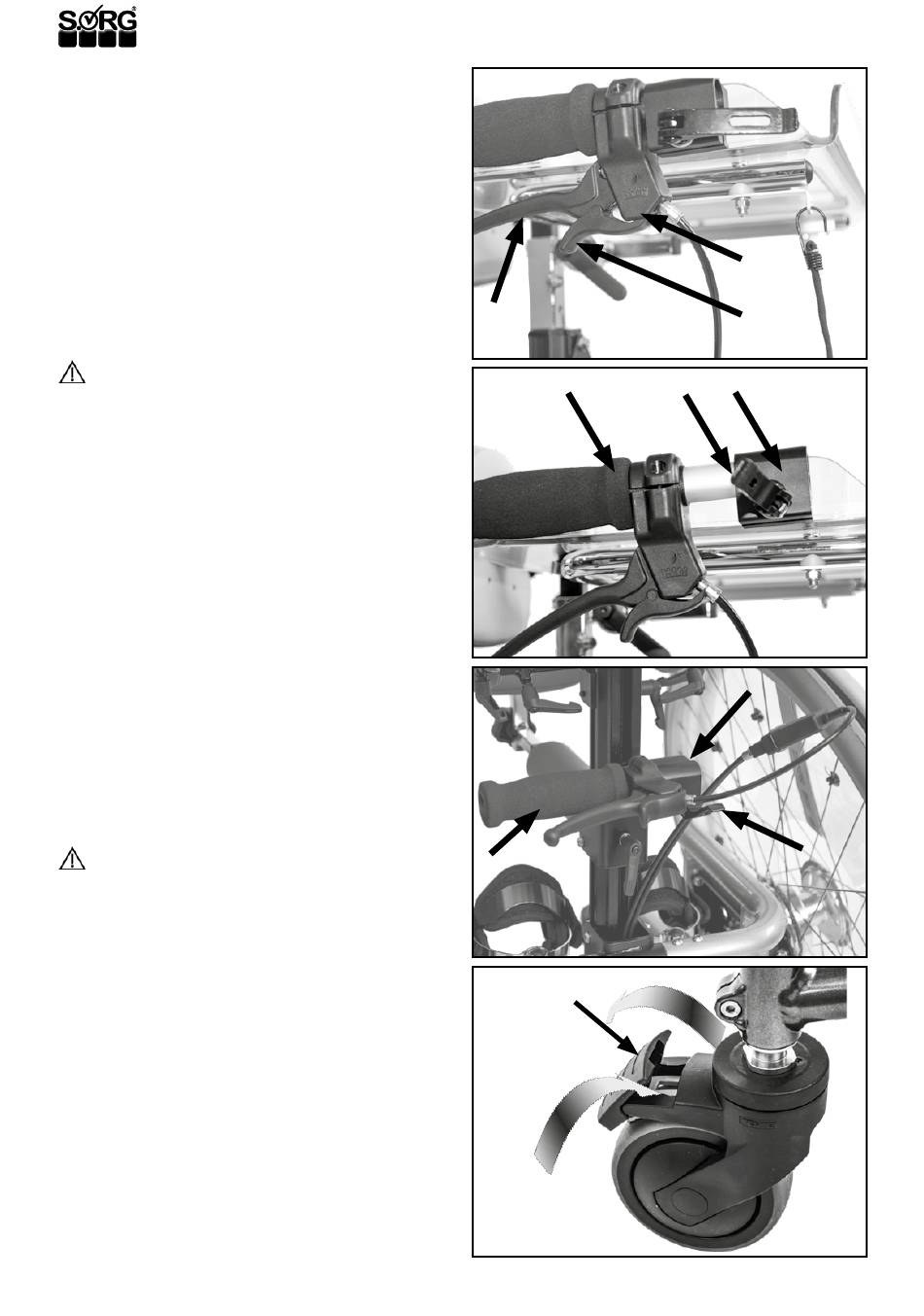

18
