Boogie Drive
3.5

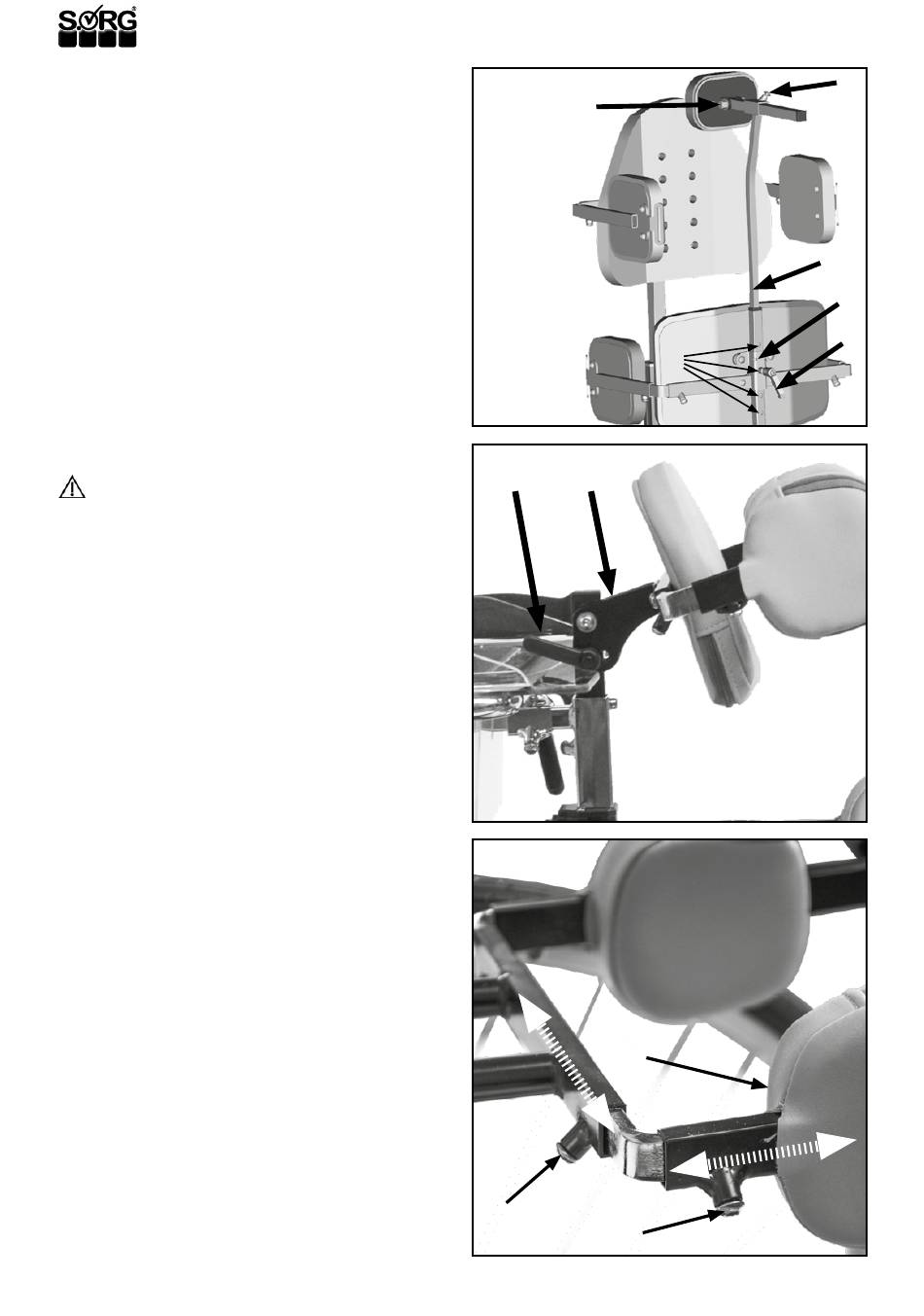

BACK TRUSS PADS

(1) Height adjustment of the back truss pad:
• Open the clamp lever (A) of the posterior truss
pads so far that you can push the beam (B) of the
back truss pad in the holder (C) freely up or down.
• Place the beam (B) in the wanted height.
• Turn the clamp lever (A) through one of the
alternative holes (D) and
• retighten the clamp lever (A).
Adjusting the depth and angle of the back truss pads:
• Loosen the set screw (E),
• push the headrest in the wanted position and
• retighten the set screw (E).
• To adjust the angle loosen the screw (F),
• place the cushion in the wanted tilt
• and retighten the screw (F).
3.6

CHEST TRUSS PAD

3.6.1 Height adjustment of the chest truss
pads
ATTENTION
The necessary work is described in the service book and
can only be done by a qualified rehab technician.

3.6.2 Tilt angle of the chest truss pad

To adjust the tilt angle of the chest truss pad:
• (1) Loosen the clamp lever (A)
• turn the holder (B) of the chest truss pad in the
wanted tilt and
• retighten the clamp lever (A).
3.7

SIDE CHEST TRUSS PADS

(3) To adjust the width of the side chest truss pads:
• (2) Remove both set screws (A)
• extend the holder (B) to the wanted distance
• replace and retighten the set screws (A).
(3) To adjust the depth of the side chest truss pads:
• (2) Remove on both sides both setscrews (C)
• place the cushions (B) in the desired distance
• and replace and retighten the setscrews (C).
14
(1)
(F)
(2)
(A) (B)
(3)
(B)
(A)
(C)
(B)
(C)
(A)
(D)
(E)
