3 HANDLING AND FINE ADJUST-
MENTS
3.1 ACTIVELY GETTING IN AND OUT
ATTENTION
WITH EVERY TRANSFRER IN/OUT OF THE MOBILE
STANDING DEVICE, AN EXPERIENCED CARER MUST BE
THERE TO ASSIST.
EACH TRANSFER CAN ONLY TAKE PLACE ON FIRM, EVEN
GROUNDS AND WITH ACTIVATED WHEEL LOCK WITH
THE MOBILE STANDING DEVICE AS WELL AS WITH THE
WHEELCHAIR.
DO NOT ONLY ACTIVATE THE DRUM BRAKES, BUT
ADDITIONALLY ALSO THE WHEEL LOCKS OF THE BACK
CASTERS ON THE MOBILE STANDING DEVICE.
3.1.1 Actively getting in with posterior truss
pad with additional standing support
ATTENTION
Getting in actively (independently) requires a lot of
strength and skill and for this reason can only be done
by experienced, strong users and only with the help of an
assisting person.
Getting in:
• (1) Drive with your wheelchair as close as possible
to the back of your mobile standing device.
• Secure it AND the mobile standing device from
rolling away (see above).
• Your carer loosens the star knob (A) and
• pulls the latch (B) to unlock down.
• At the same time, he/she pulls the complete truss
pad on the threaded rod (C) back out of the square
tube (D).

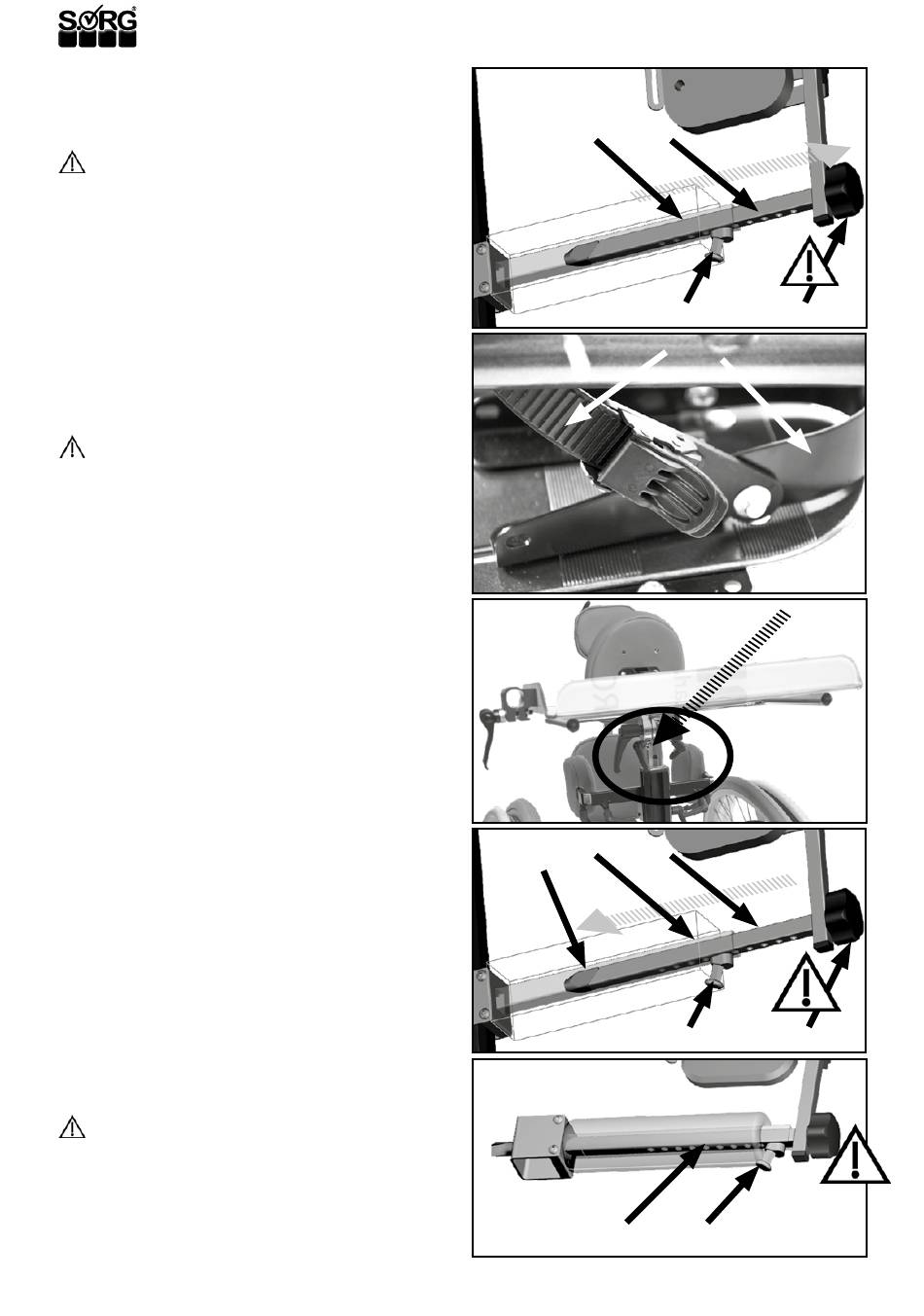

• (2) When your feet are placed in the foot plates (A)
and the belts (B) are closed securely,
(3) grab hold of the centre column with both
•
hands and pull yourself as far up into a „standing"
position so that your knees are placed securely in
the knee truss pads.
Setting the depth of the posterior truss pad
• (4) Your carer pushes the posterior tuss pad on
the threaded rod (C) as far into the square tube
(D) until the wanted depth setting (= the wanted
standing pose) is reached.
• (5) With this, the latch (A) automatically relents and
snaps along the grid (B).
• (4) When the depth setting of the posterior truss
pad is finished,
• your carer will fixate the posterior truss pad by
turning the star knob (A) until the wedge (E) has
stabilised the truss pad, free of play, in the square
tube (D).
• If available, have the belt of the side chest and/or
pelvic truss pad closed.
ATTENTION
VITAL FOR THE FIRM, SECURE AND RELIABLE FIT OF THE
POSTERIOR TRUSS PAD IS THE STAR KNOB (1A, 4A). FOR
THE SAFE USE OF THE BOOGIE IT IS REQUIRED THAT THE
STAR KNOB WAS TIGHTLY CLOSED! THE BOOGIE IS NOT
OPERABLE WITHOUT A FIRM FIT OF THE STAR KNOB
SCREW.
