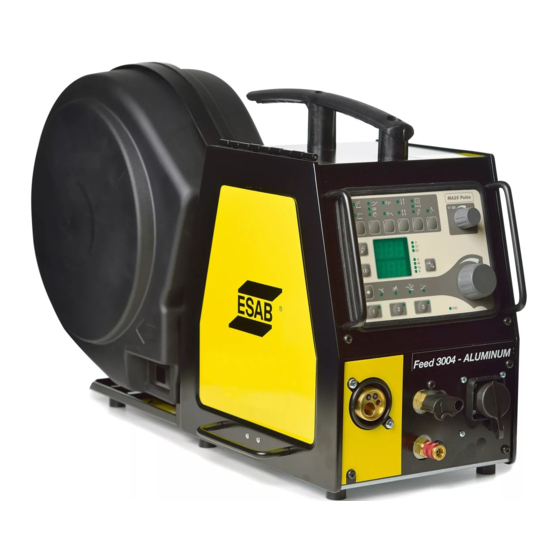

ESAB Aristo Origo Feed 3004 Service Manual

ESAB Aristo Origo Feed 3004 Service Manual

Hide thumbs Also See for Aristo Origo Feed 3004:

Advertisement

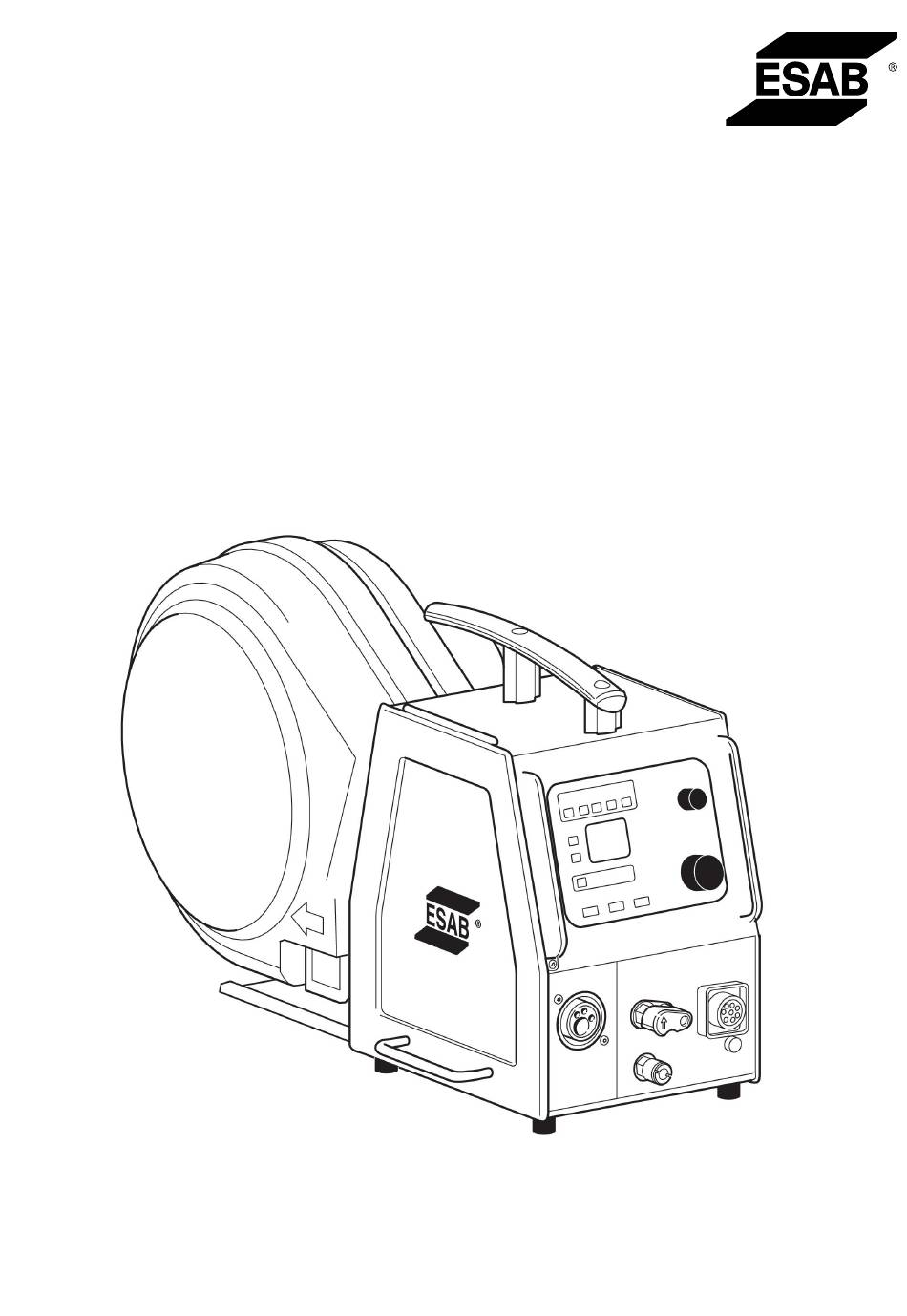

Aristo®, Origo™
Feed 3004, Feed 4804
Service manual
Valid for: serial no. 745-, 910-, 236-, 540-, 628-xxx-xxxx
0740 800 181 GB 20161005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aristo Origo Feed 3004 and is the answer not in the manual?

Questions and answers

Summary of Contents for ESAB Aristo Origo Feed 3004

  • Page 1 Aristo®, Origo™ Feed 3004, Feed 4804 Service manual Valid for: serial no. 745-, 910-, 236-, 540-, 628-xxx-xxxx 0740 800 181 GB 20161005...
  • Page 2: Table Of Contents

    FAULT CODES ....................24 Fault log......................Summary of fault codes................Fault code description .................. SERVICE INSTRUCTIONS................27 What is ESD? ....................Service aid ..................... SPARE PARTS ....................29 Rights reserved to alter specifications without notice. 0740 800 181 © ESAB AB 2016...
  • Page 3: Read This First

    European standards IEC/EN 60974-5. On completion of service or repair work, it is the responsibility of the person(s) performing the work to ensure that the product still complies with the requirements of the above standard. 0740 800 181 - 3 - © ESAB AB 2016...
  • Page 4: Introduction

    INTRODUCTION INTRODUCTION The Feed 3004 and Feed 4804 wire feed units are intended for use with power sources equipped with CAN bus communication. 0740 800 181 - 4 - © ESAB AB 2016...
  • Page 5: Wiring Diagram

    Socket connectors. 13YV1 Solenoid valve. CAUTION! STATIC ELECTRICITY can damage circuit boards and electronic components. • Observe precautions for handling electrostatic sensitive devices. • Use proper static-proof bags and boxes. 0740 800 181 - 5 - © ESAB AB 2016...
  • Page 6: Feed 3004, Feed 4804

    WIRING DIAGRAM Feed 3004, Feed 4804 0740 800 181 - 6 - © ESAB AB 2016...
  • Page 7 WIRING DIAGRAM 0740 800 181 - 7 - © ESAB AB 2016...
  • Page 8: Technical Data

    MIG/MAG welding MIG/MAG welding max pressure 0.5 MPa ( 5 bar) 0.5 MPa ( 5 bar) Coolant ESAB's ready mixed coolant ESAB's ready mixed coolant max pressure 0.5 MPa ( 5 bar) 0.5 MPa ( 5 bar) Maximum permissible load at...
  • Page 9: Description Of Operation

    Control panel U6 The MA23 panel, with knobs for settings of voltage / wire feed speed / current. Other settings by push-buttons, with corresponding symbols on the display panel. Control panel MA23 0740 800 181 - 9 - © ESAB AB 2016...
  • Page 10: 13Ap1 Control Board

    Non configured board, must be configured by ESAT. • Configured for Feed 3004 with machine ID 8 • Configured for Feed 3004 with machine ID 37 • Configured for Feed 4804 0740 800 181 - 10 - © ESAB AB 2016...
  • Page 11: 13Ap1:1 Power Supply

    The +15 V is monitored by the processor and potential divider R152/R153. If the 15 V supply drops below 13 V or exceeds 17 V, the MMC panel displays fault code 8. This fault does not, however, disable any functions. 0740 800 181 - 11 - © ESAB AB 2016...
  • Page 12: 13Ap1:2 Start / Stop

    13AP1:3 Gas valve The gas valve is controlled by the microprocessor. In normal operation the gas valve opens when the start signal is activated by the welding torch switch. 0740 800 181 - 12 - © ESAB AB 2016...
  • Page 13: 13Ap1:4 Motor Driving / Braking

    Wire feed is stopped if the feed speed deviates from the set speed by more than 1.5 m/min for more than 5.1 seconds. The MMC panel displays fault code 11. 0740 800 181 - 13 - © ESAB AB 2016...
  • Page 14: 13Ap1:5 Pulse Generator Input

    25 m/min. 13AP1:6 Monitoring the cooling water connection The wire feed unit with water connection is equipped with a detection system ELP (ESAB Logic Pump) which checks that the water hoses are connected. When connecting a water-cooled welding torch, the water pump starts.
  • Page 15: 13Ap1:7 Monitoring Wire And Gas

    Although the welding power source supplies a +12 V power supply to the MMC panel, this is not used on circuit board 13AP1. 0 V on the circuit board is connected to 0 V in the MMC panel. 0740 800 181 - 15 - © ESAB AB 2016...
  • Page 16: 13Ap1:9 Arc Voltage Sensing

    13AP1:9 Arc voltage sensing In order to avoid spurious volt drops when measuring the welding arc voltage, the power source senses the arc voltage via the filler wire and the feeder unit motor. 0740 800 181 - 16 - © ESAB AB 2016...
  • Page 17: 13Ap1:10 Push Pull & I/O

    Terminals D, J, X and G and are used for the manual push pull, mechanized push pull, MiggyTrack and RailTrack options: see section "CAN adapter options". Terminal BA is for present not used for any standard options. 0740 800 181 - 17 - © ESAB AB 2016...
  • Page 18: 13Ap1 Component Positions

    DESCRIPTION OF OPERATION 13AP1 Component positions Control board 0487 187 88x with print number 487186-001 0740 800 181 - 18 - © ESAB AB 2016...
  • Page 19 DESCRIPTION OF OPERATION Control board 0487 187 8xx with print number 487186-002 0740 800 181 - 19 - © ESAB AB 2016...
  • Page 20: Can Adapter Option

    In position A the control panel is active and the external controls inactive. If the wire feeder is controlled by an U8, switch 13S2 has to be in position B. Then external or internal control can be selected by the U8. 0740 800 181 - 20 - © ESAB AB 2016...
  • Page 21: Welding Gun With Pull Motor

    Then external or internal control of the wire feed speed can be selected by the U8. Pull motor option without wire feed speed adjustment. 0459 020 883 This option includes connectors 13XS25, 13XS20 and wires 1389, 1390. Circuit board layout, CAN adapter and filter board 0740 800 181 - 21 - © ESAB AB 2016...
  • Page 22: Connection Instructions

    DESCRIPTION OF OPERATION Connection instructions Wire feeder with built-in control panel Wire feeder controlled by U8, NOTE: the switch must be in position B. 0740 800 181 - 22 - © ESAB AB 2016...
  • Page 23: Remote Controls

    REMOTE CONTROLS REMOTE CONTROLS A number of remote control units can be connected to the wire feeders, these are described in a separate service manual. 0740 800 181 - 23 - © ESAB AB 2016...
  • Page 24: Fault Codes

    Lost contact with the wire feed unit Lost contact with the power source Memory error in data memory Memory allocation error Transmitter buffer overflow Receiver buffer overflow Program operating fault 0ut of wire 0740 800 181 - 24 - © ESAB AB 2016...
  • Page 25: Fault Code Description

    The wire feed speed differs from the set value by more than 1.5 m/min for more than 3 seconds. This fault stops the wire feed. After a period of 5 seconds, restart is permitted. 0740 800 181 - 25 - © ESAB AB 2016...
  • Page 26 Stack overflow The program execution does not work. This fault should never occur in reality: the fault code is intended as an aid during development work. Contact ESAB if the fault does occur. No gas flow Gas flow is too low.
  • Page 27: Service Instructions

    Work surfaces, carts and containers must be conductive and grounded. Use only antistatic packaging materials. Overall, handling of ESD-sensitive devices should be minimized to prevent damage. 0740 800 181 - 27 - © ESAB AB 2016...
  • Page 28: Service Aid

    The software update is made from a PC, it has to be managed by a trained serviceman. For this a PC program called ESAT, ESAB Software Administration Tool, is needed. The PC is connected to the welding equipment by a cable connector and a CAN reader. From the ESAT it is possible to update the software.
  • Page 29: Spare Parts

    SPARE PARTS The spare parts list is published in a separate document that can be downloaded from the Internet: www.esab.com Filename Product 0459 839 017 Feed 3004 and Feed 4804 0740 800 181 - 29 - © ESAB AB 2016...
  • Page 30 ESAB subsidiaries and representative offices Europe THE NETHERLANDS North and South America SOUTH KOREA ESAB Nederland B.V. ESAB SeAH Corporation AUSTRIA Amersfoort ARGENTINA Kyungnam ESAB Ges.m.b.H Tel: +31 33 422 35 55 CONARCO Tel: +82 55 269 8170 Vienna-Liesing Fax: +31 33 422 35 44...
