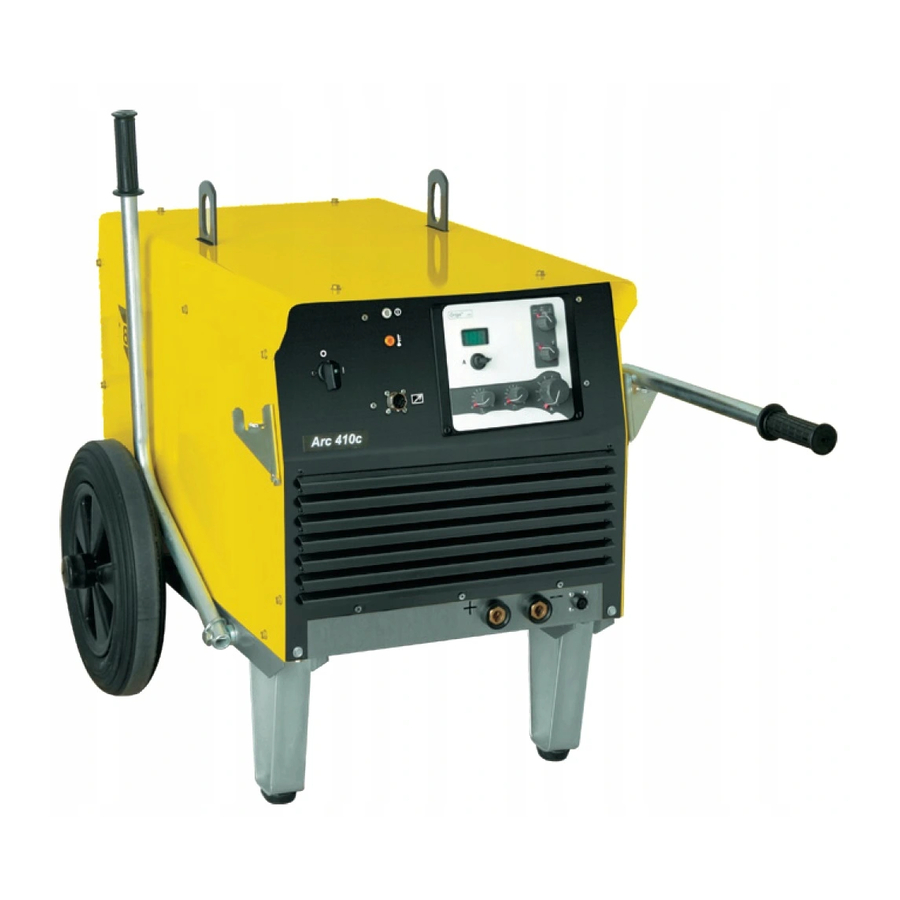

ESAB Origo Arc 410c Instruction Manual

Hide thumbs Also See for Origo Arc 410c:
Table of Contents

Advertisement

Quick Links

GB
Origo
Arc 410c
Arc 650c
Arc 810c
Instruction manual
0349 301 144 GB 20120210
Valid for serial no. 734-xxx-xxxx, 749-xxx-xxxx,
751-xxx-xxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Origo Arc 410c and is the answer not in the manual?

Questions and answers

Related Manuals for ESAB Origo Arc 410c

Summary of Contents for ESAB Origo Arc 410c

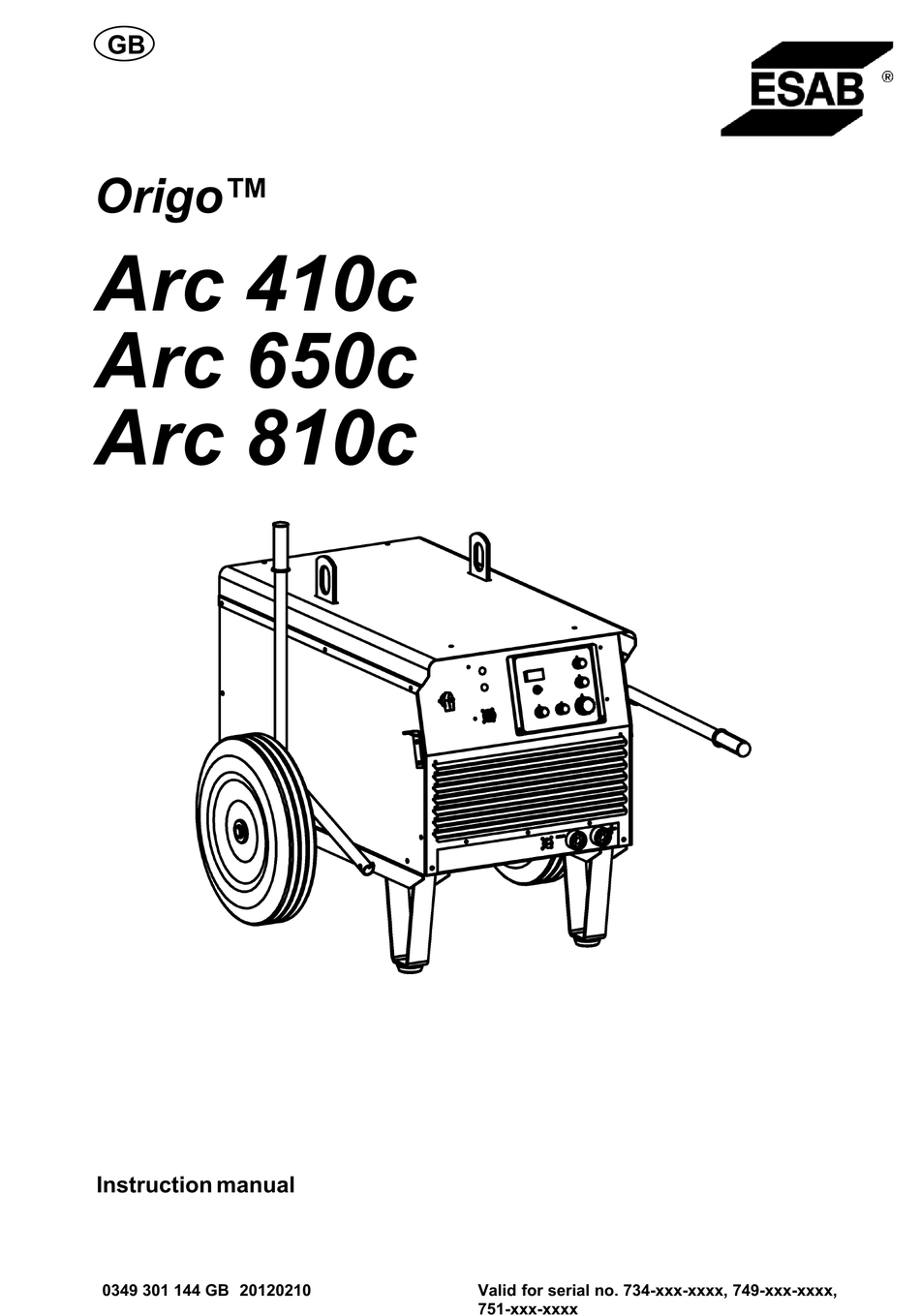

  • Page 1 Origo Arc 410c Arc 650c Arc 810c Instruction manual 0349 301 144 GB 20120210 Valid for serial no. 734-xxx-xxxx, 749-xxx-xxxx, 751-xxx-xxxx...
  • Page 2 - 2 -...

  • Page 3: Table Of Contents

    1 SAFETY ............2 INTRODUCTION .

  • Page 4: Safety

    SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob­...
  • Page 5 MALFUNCTION - Call for expert assistance in the event of malfunction. Read and understand the instruction manual before installing or operating. PROTECT YOURSELF AND OTHERS! ESAB can provide you with all necessary welding protection and accessories. WARNING Do not use the power source for thawing frozen pipes.

  • Page 6: Introduction

    Equipment marked IP23 is designed for indoor and outdoor use. Application class The symbol indicates that the power source is designed for use in areas with increased electrical hazard. - 6 - © ESAB AB 2005 bh42e...

  • Page 7: Installation

    NB: The mains cable areas and fuse sizes as shown above are in accordance with Swedish regulations. They may not be applicable in other countries: make sure that the cable area and fuse sizes comply with the relevant national regulations. - 7 - © ESAB AB 2005 bh42e...

  • Page 8: Operation

    A12 panel incorporates remote current control receiver that cooperates with N02 transmitter. In oder to set the current remotely, the following steps must be undertaken: set switch (5) to “| )))” set demanded current with knob on N02 transmitter - 8 - © ESAB AB 2005 bh42e...

  • Page 9: Wired Remote Control Operation

    7. TIG torch control socket 8. Panel (A11 / A12) 5.7.2 A11 panel 1. ARC FORCE knob 2. HOT START knob 3. Current setting knob 4. Method selector switch: Arc Air Gouging, MMA, TIG - 9 - © ESAB AB 2005 bh42e...

  • Page 10: A12 Panel

    If the internal temperature becomes too high, the welding is interrupted and disabled. This state is indicated by permanent lighting of the orange indicating lamp on the front of the unit. It resets automatically when the temperature falls down. - 10 - © ESAB AB 2005 bh42e...

  • Page 11: Maintenance

    Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - 11 - ©...

  • Page 12: Diagram

    Diagram Origo Arc 410c - 12 - © ESAB AB 2005 dArc416581...
  • Page 13 Origo Arc 410c - 13 - © ESAB AB 2005 dArc416581...
  • Page 14 Origo Arc 650c - 14 - © ESAB AB 2005 dArc416581...
  • Page 15 Origo Arc 650c - 15 - © ESAB AB 2005 dArc416581...
  • Page 16 Origo Arc 810c - 16 - © ESAB AB 2005 dArc416581...
  • Page 17 Origo Arc 810c - 17 - © ESAB AB 2005 dArc416581...

  • Page 18: Diagram

    Diagram - 18 - © ESAB AB 2005 vrxx02c...

  • Page 19: Ordering Numbers

    Arc 650c, A12 offshore 230/400−415/500V 3~50Hz 230/440−460/550V 3~60Hz 0349 311 510 Origo Arc 650c, A12 stationary 230/400−415/500V 3~50Hz 230/440−460/550V 3~60Hz 0349 311 430 Origo Arc 810c, A12 offshore 230/400−415/500V 3~50Hz 230/440−460/550V 3~60Hz - 19 - © ESAB AB 2005 oArc416581...

  • Page 20: Accessories

    25m analogue, 12 pole ..... 0459 552 883 For more information of the accessories contact the nearest ESAB agency. - 20 - ©...
  • Page 21 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 21 - notes...
  • Page 22 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 22 - notes...
  • Page 23 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 23 - notes...
  • Page 24 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
