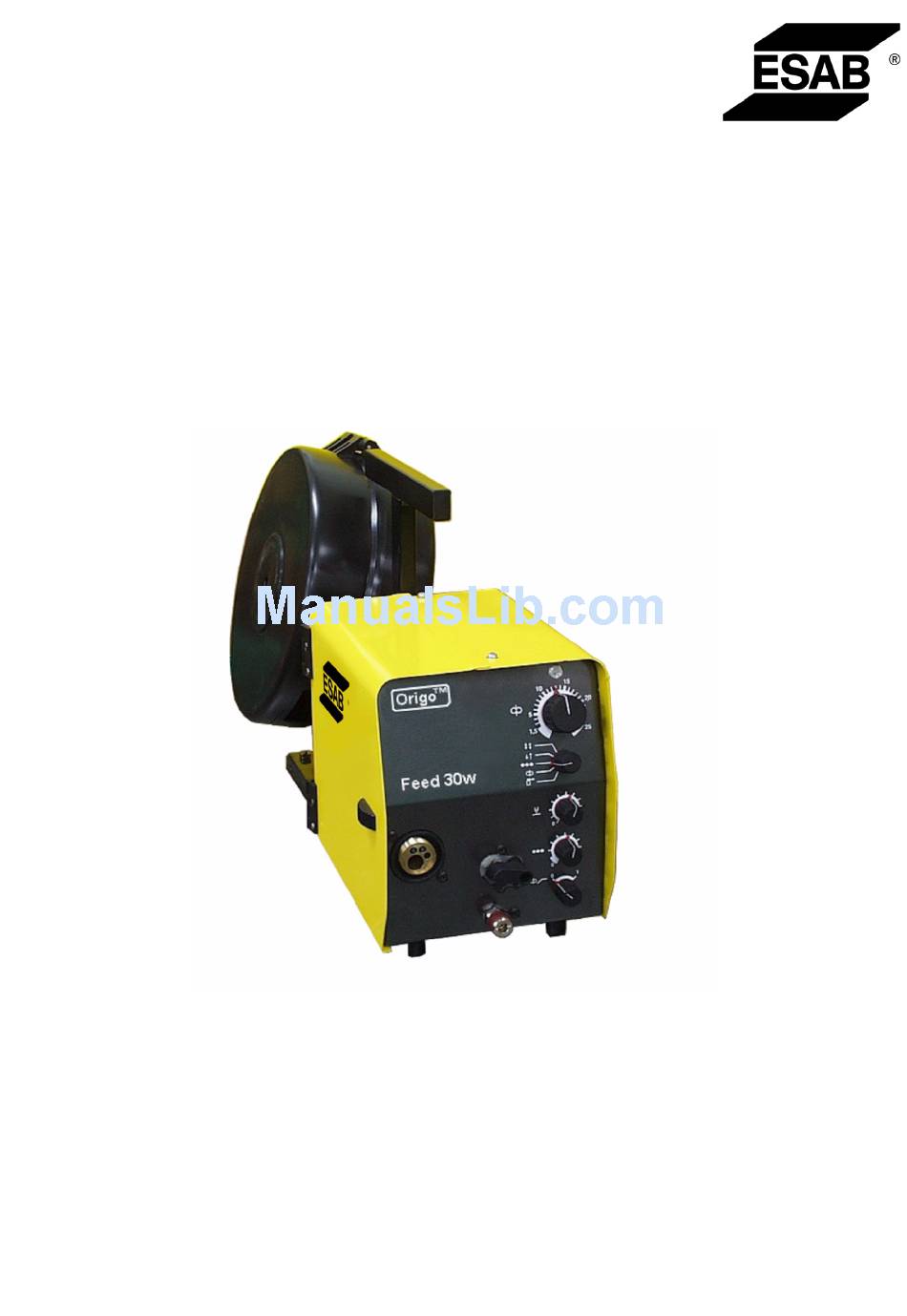

- Page 1 Feed 30 Feed 30w ™ ™ ™ ™ Origo Instruction manual 0349 301 132 070426 Valid for serial no. 638...
-
Page 2: Table Of Contents
ENGLISH 1 SAFETY ............2 INTRODUCTION . - Page 3 - - 3 - - document...
-
Page 4: Safety
DECLARATION OF CONFORMITY ESAB Welding Equipment AB, S--695 81 Laxå, Sweden, declares that Wire feed unit Origo Feed 30w from serial number 638 onwards, conforms to standard EN 60974--5, in accordance with the re- quirements of directive (73/23/EEC) and appendix (93/68/EEC) and standard EN 60974--10 in accord- ance with the requirements of directive (89/336/EEC) and appendix (93/68/EEC). - Page 5 WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU- TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA. ELECTRIC SHOCK - - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
-
Page 6: Introduction

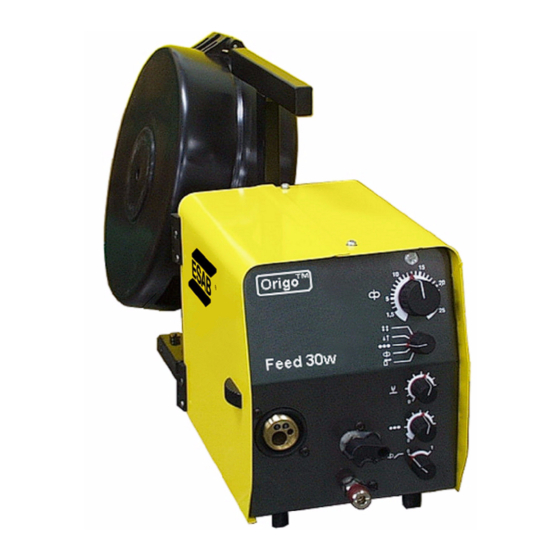

Feed 30, Feed 30w wire feed unit is intended for MIG/MAG welding together with step controlled welding power sources, with solid steel, stainless steel, aluminium wire and flux--cored wires. ESAB’s accessories for the product can be found on page 18. Equipment The wire feed unit is supplied with:... -
Page 7: Installation
Application class The symbol indicates that the power source is designed for use in areas with increased electrical hazard. INSTALLATION The installation must be executed by a professional. WARNING! This product is intended for industrial use. In a domestic environment this product may cause radio interference. -
Page 8: Operation
Connect current cables. Set voltage in the welding rectifier. Switch the rectifier on. The machine is ready for welding. The wire feeder is factory -- equipped with insulating feet that allow to put the feeder on top of power source or directly on the ground. Feeder can optionally be equipped with accessory wheel set (see page 18). - Page 9 - - 9 - - OF30e...
-
Page 10: Function Explanation
Function explanation 5.2.1 2- - stroke mode Set the 2--stroke mode by means of the knob (3). Set required wire speed by means of the knob (2). The creep speed option can be set by means of the knob (6). If creep speed is chosen the wire speed before the actual start of welding is reduced by two. -
Page 11: Wire Feed Pressure
Wire feed pressure Start by making sure that the wire moves smoothly through the wire guide. Then set the pressure of the wire feeder’s pressure rollers. It is important that the pressure is not too great. Fig 1 Fig 2 To check that the feed pressure is set correctly, you can feed out the wire against an insolated object, e.g. -
Page 12: Aluminium Wire Welding
Aluminium wire welding In case of aluminium wires welding, appropriate equipment is to be used. 1. Replace the set of 4 feeding rolls with aluminium intended ones for appropriate wire diameter. 2. Replace steel nozzle in the torch connector with plastic nozzle for aluminium wire. -
Page 13: Fault Tracing
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - - 13 - -... -
Page 14: Diagram
Diagram Origo Feed 30w - - 14 - - dOF30... -
Page 15: Ordering Numbers
Origo Feed 30, Feed 30w Valid for serial no. 638- -XXX- -XXXX Ordering numbers 0349 304 839 Origo Feed 30w 42V 1∼ ∼ ∼ ∼ 50/60Hz 0349 304 840 Origo Feed 30 42V 1∼ ∼ ∼ ∼ 50/60Hz - - 15 - - Edition 070426 oOF302... -
Page 16: Wear Components
Origo Feed 30, Feed 30w Wear components (W. F. Mechanism 0349 484 083) Item Denomination Ordering no. Notes 0349 484 335 Ø 0.8--1.0mm Fe, Ss, cored wire, V--groove. 0349 484 339 Ø 1.2--1.6mm Fe, Ss, cored wire, V--groove. 0349 484 342 Ø... - Page 17 Origo Feed 30, Feed 30w - - 17 - - Edition070426 wOF302...
-
Page 18: Accessories
Origo Feed 30, Feed 30w Accessories Traction kit Ø 100 (wheels set) ... 0349 493 925 Traction kit Ø 120 (wheels set) ... 0349 493 903 - - 18 - - Edition 070426... - Page 19 ESAB subsidiaries and representative offices Europe Asia/Pacific Representative offices NORWAY AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
