- Page 1 ™ Buddy Feed 402 Instruction manual 0463 347 074 GB 20120531 Valid for serial no. 210-xxx-xxxx...
-
Page 2: Table Of Contents
Changing rollers ……………...…………………………………………………….. 8 6 MAINTENANCE ……………………………………………………………. 9 7 ORDERING OF SPARE PARTS .………………………………………… 9 DIAGRAM …………………………………………………………….……..… 10 ORDERING NUMBERS ………………………………………….……..…… 11 WEAR PARTS ……………………………………………………….……..… 12 ACCESSORIES ……..………………………………………………………… 13 Rights reserved to alter specifications without notice. - 2 - © ESAB AB2012... -
Page 3: Safety
SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 4 PROTECT YOURSELF AND OTHERS! CAUTION! Read and understand the instruction manual before installing or operating. CAUTION! This product is solely intended for arc welding only. ESAB can provide you with all necessary welding protection and accessories. - 4 - © ESAB AB2012...
-
Page 5: Introduction

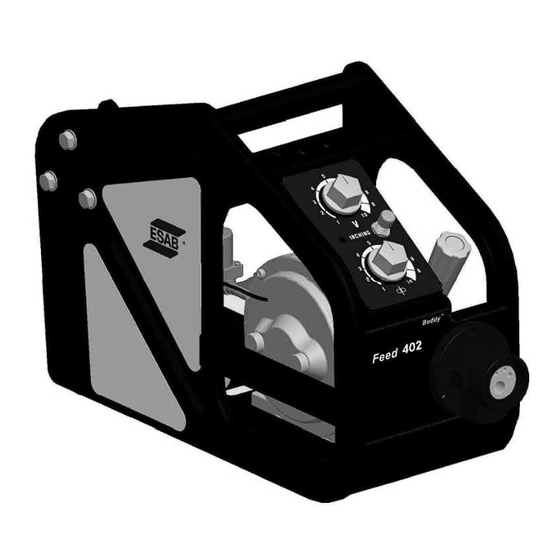

Feed 402 is a wire feed unit intended for MIG/MAG & FCAW welding when coupled with a Mig 500i power source. They can be used with wire bobbins up to Ø300mm ESAB’s accessories for the product can be found on page 13. Equipment The Feed 402 wire feed unit is supplied with Instruction manual ●... -
Page 6: Installation
To prevent the reel from sliding off the hub, lock the reel in place by slotting the locking lever in the correct position. WARNING! Rotating parts can cause injury, take great care. WARNING! Risk of crushing! Do not use safety gloves when replacing wire, feed rollers and wire bobbins. - 6 - © ESAB AB2012... -
Page 7: Connections And Control Devices
If you hold the gun approx. 50 mm from the piece of wood, the wire should be fed out and bend (Fig. 2) Wire inching Wire inching is used to feed wire without welding voltage and gas flow. The wire is fed as long as the button is depressed. - 7 - © ESAB AB2012... -
Page 8: Replacing & Inserting Wire
(Take note of the woodruff key that is used to turn the feed roller) During installation, repeat the above in reverse order. ● Choice of track in the feed roller Turn the feed roller with the dimensioning mark for the required track towards you. - 8 - © ESAB AB2012... -
Page 9: Maintenance
To find the required spare part, please refer to the Spare Parts List as shown on page 11. Spare parts may be ordered through your nearest ESAB dealer. See the last page of this publication to find the nearest ESAB office or dealers. -
Page 10: Diagram
Feed 402 Diagram - 10 - © ESAB AB2012... -
Page 11: Ordering Numbers
Ordering no. Description Type ™ 0700 301 200 Welding power source Buddy Feed 402 ™ 0459 839 086 Spare parts list Buddy Feed 402 The spare parts list is available on the internet at www.esab.com - 11 - © ESAB AB2012... -
Page 12: Wear Parts
Feed Roller, Ø 1.2 - 1.6 mm, Knurled V groove For cored wires 0700 301 202 Feed Roller, Ø 1.2 - 1.2 mm, Knurled V groove For cored wires 0700 301 210 Outlet Guide SS Tube incl. circlip - 12 - © ESAB AB2012... -
Page 13: Accessories
25m ....... . 0700 301 301 Comprises of welding cable, gas hose & control cable - 13 - © ESAB AB2012... -
