26 TECHNICAL

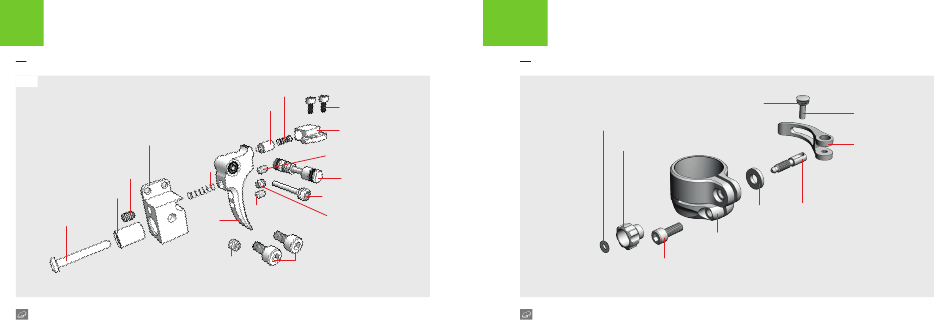

TRIGGER ASSEMBLY

FIG-1
Bearing carrier
Trigger spring holder screw
Trigger return spring
6-32 UNC x 3/16
socket set screw
Push pin bearing
Push pin
Bearing retainer screw
6-32 UNC x 1/8
socket set screw
GTEK M170R
Safety switch
Safety switch spring
housing screws
M2.5 x 5 cap head
Safety switch plunger
socket screws
Safety switch housing
Trigger spring screw
6-32 UNC x 3/16
socket set screw
Push button safety
Threaded trigger pin
Post-travel screw
6-32 UNC x 3/16
Activation point adjuster screw
Trigger
socket set screw
custom socket set screw
Bearing carrier screws
M2.5 x 5 cap head socket screws
27 TECHNICAL

LOW-RISE FEED ASSEMBLY

Clamping feed nut o-ring
#006 NBR70
Clamping feed nut
Short clamping feed screw
10-32 UNF x 1/2"
GTEK M170R
Feed swivel o-ring
#004 NBR70
Feed swivel
Feed lever
Machined
Feed
clamping
insert
feed screw
Feed tube
