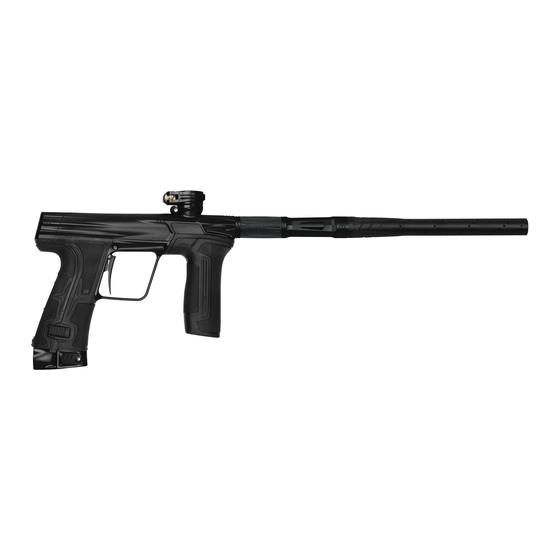

- Page 1 WORKSHOP MANUAL .68CAL PLANET ECLIPSE: CS3 .68CAL...
- Page 2 WARNING READ CAREFULLY BEFORE USE THE PLANET ECLIPSE CS3 IS NOT A TOY. PAINTBALL SAFETY RULES MUST BE FOLLOWED AT Never allow pressurised gas to come into contact with any part of your body. ALL TIMES. Alwaysremovethefirststageregulator and relieve all residual gas pressure from the CS3 before Careless or improper use of the CS3, including failure to follow instructions and warnings within disassembly.
-
Page 3: Table Of Contents
‘PUFFS’ WHEN TRIGGER IS PULLED DOES NOT FULLY CYCLE SOLENOID LEAK CONSTANT HIGH VELOCITY INLINE REGULATOR / POPS LEAK BREAKING PAINT IN THE BREECH INCONSISTANT SHOT TO SHOT FPS INEFFICIENT / LOW SHOT COUNT PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 4: Cs3 Bolt System
4X1 NBR 70 ORING 5MM BALL BEARING SWITCH BODY SPRING GUIDE M2.5 SPRING WASHER JOINER PLUNGER SWITCH SPOOL SPOOL SPRING BOLT GUIDE BOLT CURE FT BOLT TIP CURE FT BOLT PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 5: Can Assembly
CAN ASSEMBLY 020 NBR70 O-RING 017 NBR70 O-RING PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 6: Bolt Assembly
BOLT ASSEMBLY 015 NBR90 O-RING 013 NBR70 O-RING 14X2 NBR70 O-RING BOLT PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 7: Cure Ft Bolt Assembly
CURE FT BOLT ASSEMBLY 015 NBR90 O-RING 013 NBR70 O-RING 14X2 NBR70 O-RING BOLT CURE FT BOLT TIP PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 8: Bolt Guide Assembly
BOLT GUIDE ASSEMBLY 017 NBR70 O-RING 013 NBR70 O-RING 6 X 1.5 NBR70 O-RING 20 X 1.2 NBR70 O-RING PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 9: Spool Assembly
SPOOL ASSEMBLY 012 NBR70 O-RING 011 NBR70 O-RING SPOOL SPOOL INSERT PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 10: Switch Assembly
SWITCH ASSEMBLY 016 NBR70 O-RING SWITCH PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 11: Switch Body Assembly
SWITCH BODY ASSEMBLY 021 NBR70 O-RING SWITCH BODY 20X1.2 NBR70 O-RING 4X1 NBR70 O-RING PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 12: Regulator Assembly
FRAME GASKET 016 NBR70 O-RING POPS FILTER 015 NBR70 O-RING 10-32 UNF X 1” CAP HEAD SOCKET REGULATOR SEAL SCREW PURGE POPPET SPRING 011 NBR70 O-RING PURGE POPPET SPRING POPS ASSEMBLY PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 13: Solenoid Assembly
BODY GASKET 6X1 NBR70 M1.6 X 5 COUNTER SUNK SCREW O-RING SOLENOID PILOT M2 X 16 CROSS PAN HEAD SCREW 3-WAY BODY FRAME GASKET SOLENOID 3-WAY SPOOL PLATE GASKET SOLENOID PIN PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 14: Frame Sub-Assembly
FRAME SUB-ASSEMBLY M2.5 X 5 CAP HEAD SOCKET SCREW BS & BATTERY BOARD BS WIRE M2.5 X 5 CAP HEAD SOCKET SCREW TRIGGER SPRING MAGNET CARRIER TRIGGER ASSEMBLY THREADED TRIGGER PIN PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 15: Trigger Assembly
SCREW - CUP POINT 6-32UNC X 0.1875 SOCKET SET SCREW - CUP POINT M2.5 X 5 CAP HEAD SOCKET SCREW 6-32UNC X 0.125 SOCKET SET SCREW - CUP POINT TRIGGER AXLE TRIGGER SHOE PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 16: Battery Housing Assembly
BATTERY HOUSING ASSEMBLY 6-32 UNC X 0.25/0.3125 SOCKET COUNTER SUNK SCREW BATTERY HOUSING BATTERY JUMPER 6-32 UNC X 0.25/0.3125 SOCKET COUNTER SUNK SCREW 1.5V AA BATTERY (LR6, 15A) BATTERY PLUG PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 17: Pops Assembly
POPS ASSEMBLY 005 NBR90 O-RING 007 NBR70 O-RING POPS PIN 004 NBR70 O-RING POPS INSERT 004 NBR70 O-RING POPS CROSS PIN POPS BODY POPS LATCH SPRING POPS BONNET POPS LATCH BUTTON PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 18: Feedneck Assembly
FEEDNECK ASSEMBLY 006 NBR70 O-RING FEED SWIVEL LOCATING FEED TUBE LOCATING FEED LEVER CLAMPING FEED WHEEL FEED SCREW 004 NBR70 O-RING FEED INSERT 10-32 UNF X 0.5” CAP HEAD SOCKET SCREW PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 19: Breech Sensor (Bs) Assembly
BREECH SENSOR (BS) ASSEMBLY BREECH SENSOR (BS) RUBBER DETENT M1.6 X 5 COUNTER SUNK SCREW LIGHT PIPE ASSEMBLY BS COVER CLIP BS COVER PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 20: Service Indicator - Lubrication Required
6X1.5 NBR70 O-RING BOLT (OUTSIDE FACE) 013 NBR70 O-RING 013 NBR70 O-RING 14X2 NBR70 O-RING CAN (INSIDE FACE) 015 NBR90 O-RING 020 NBR70 O-RING BOLT (INSIDE FACE) 017 NBR70 O-RING PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 21: Service Indicator - Service Required
021 NBR70 O-RING 016 NBR70 O-RING SWTCH BODY (INSIDE FACE) SWITCH (INSIDE FACE) 012 NBR70 O-RING 011 NBR70 O-RING SPOOL (OUTSIDE FACE) *In addition to the ‘lubrication’ guide on previous page PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... - Page 22 PISTON (OUTSIDE FACE) 008 NBR70 O-RING (INTERNAL) 014 NBR70 O-RING 015 NBR70 O-RING 016NBR70 O-RING REGULATOR BODY (INSIDE FACE) REGULATOR SEAL 011 NBR70 O-RING PURGE POPPET (OUTSIDE FACE) REGULATOR ADJUSTER (INSIDE FACE) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD...
-
Page 23: Leaks Down The Barrel
14X2 NBR70 O-RING (C) 017 NBR70 O-RING (C) 017 NBR70 O-RING (R) SPOOL SWITCH BODY SWITCH 011 NBR70 O-RING (C) METAL BODY (INSIDE FACE) (R) (INSIDE FACE) (R) 012 NBR70 O-RING (R) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 24: First Shot Drop Off (Fsdo)
BOLT (OUTSIDE FACE) (R) 013 NBR70 O-RING (R) 6 X 1.5 NBR70 O-RING (R) 013 NBR70 O-RING (C) 017 NBR70 O-RING (R) SWITCH BODY SWITCH 016 NBR70 O-RING (R) INSIDE FACE (R) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 25: 22 'Puffs' When Trigger Is Pulled
021 NBR70 O-RING (R) VALVE BODY (INSIDE FACE)(R) 6X1.5 NBR70 O-RING (R) (IF THIS O-RING IS DAMAGED, INCORRECTLY SIZED OR NOT LUBRICATED CORRECTLY THEN THE MARKER MAY EXHIBIT CONSTANT LOW VELOCITY) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 26: Does Not Fully Cycle
BOLT 017 NBR70 O-RING (R) BOLT (R) 013 NBR70 O-RING (R) 14X2 NBR70 O-RING (R) CAN (R) 3-WAY HOUSING 3-WAY HOUSING (R) 6X1 NBR70 O-RING (R) #6 SPOOL SEAL (R) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 27: Solenoid Leak
BODY GASKET (R) 6 X 1 NBR70 O-RING (C) SOLENOID PLATE (R) CS3 BODY (R) #6 SOLENOID SEAL (C) FRAME SOLENOID PLATE GASKET (R) 3-WAY BODY (R) FRAME GASKET (R) FRAME (R) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 28: Constant High Velocity
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES (C) = COMMON FAULT (R) = RARE FAULT REGULATOR ADJUSTER SCREW REGULATOR PISTON REGULATOR SEAL (R) PURGE POPPET (R) REGULATOR PISTON (C) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 29: Inline Regulator / Pops Leak
016 NBR70 O-RING (R) REGULATOR BODY (INSIDE FACE) FRAME (INSIDE FACE) (R) FRAME GASKET (R) POPS BODY (R) 011 NBR70 O-RING (R) 007 NBR70 O-RING (R) 005 NBR90 O-RING (R) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 30: Breaking Paint In The Breech
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES (C) = COMMON FAULT (R) = RARE FAULT DETENTS BOLT GUIDE 013 NBR70 O-RING (R) RUBBER DETENT (C) BOLT CURE FT BOLT TIP (R) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 31: Inconsistant Shot To Shot Fps
(R) = RARE FAULT REGULATOR PISTON REGULATOR BODY REGULATOR SEAL REGUALTOR SEAL (R) 014 NBR70 O-RING (C) 008 NBR70 O-RING (C) PISTON (C) POPS ASSEMBLY POPS FILTER (R) POPS INTERNAL PORTING (R) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... -
Page 32: Inefficient / Low Shot Count
(C) = COMMON FAULT (R) = RARE FAULT SWITCH SPOOL BOLT GUIDE 012 NBR70 O-RING (R) 6 X 1.5 NBR70 O-RING (R) SWITCH BODY 016 NBR70 O-RING (C) 021 NBR70 O-RING (C) PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD... - Page 33 Warren, RI, 02885, USA Manchester, M17 1GA, England Düsseldorf 40233, Germany Call: +1 401 247 9061 Call: +44(0) 161 872 5572 Call +49 (0) 211 210 230-0 info.usa@planeteclipse.com info.europe@planeteclipse.com planeteclipse.com/contact 19018-WM005 PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL © 2022 PLANET ECLIPSE LTD...
