22
TECHNICAL

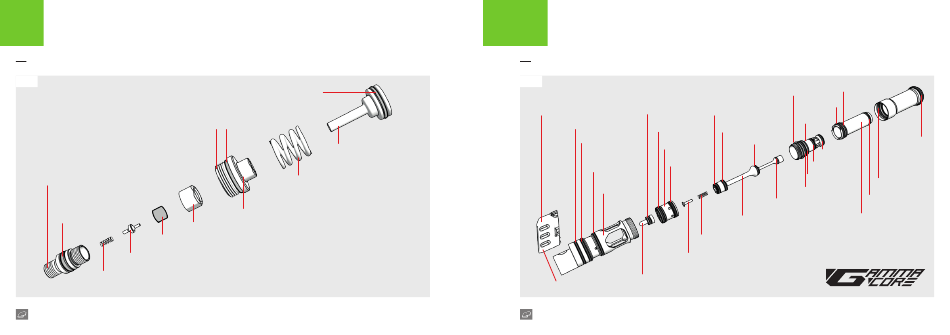

SL6 INLINE REGULATOR
1
FIG-1
Reg body
Adjuster bottom
Adjuster o-ring
#011 NBR70
Regulator seal
Purge poppet
3
Purge poppet spring
GTEK M170R
Piston o-ring
14 x 2 NBR70
O-ring
#015 NBR70
Regulator piston
Regulator spring
2
Internal o-ring
#008 NBR70
Adjuster top
1
Reset the SL6 regulator to factory after re-assembly.
2
Only use the M170R SL6 spring with the SL6 inline regulator.
3
Failure to re-install the purge poppet assembly correctly could
seriously damage the M170R.
23
TECHNICAL
M170R BOLT ASSEMBLY
FIG-1
#010 NBR70
Quick-release bonnet
#020 NBR70
#016 NBR70
#020 NBR70
Switch
#016 NBR70
#020 NBR70
Valve chamber
Spring guide
Plunger
Bolt pin
GTEK M170R
#015 NBR90
#014 NBR70
14 x 2 NBR70
#012 NBR70
Bolt guide
#012 NBR70
#011 NBR70
#013 NBR70
#013 NBR70
#013 NBR70
Can
14 x 2 NBR70
#013 NBR70
#008 NBR70
Bolt
Spool
Spool spring
#020 NBR70
Internal:
#017 NBR70
