QUICK START

SETTING UP THE M170R

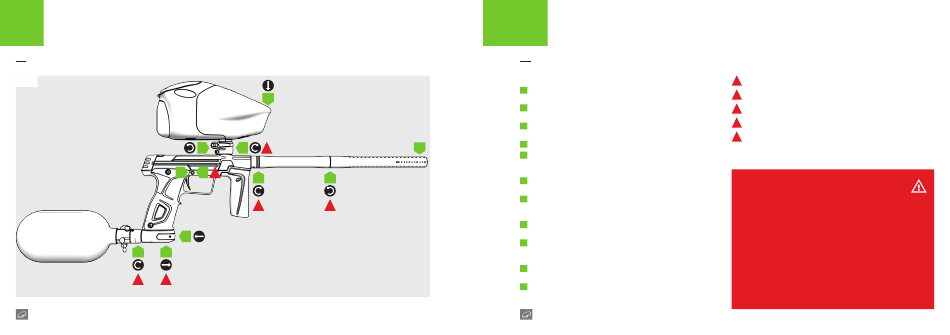

FIG-1
K
J
F E
4 3
GTEK M170R
H
G I 5
A
1
C B
2 2
07 QUICK START
SETTING UP THE M170R
FIG-1
PUSH SAFE before you begin.
A
This ensures the marker will not fire when the trigger is pulled.
Screw both ends of the barrel together.
B
Screw the barrel tip counter-clockwise onto the barrel back.
Screw the complete barrel into the marker.
C
The barrel back screws clockwise into the marker body.
Fit a barrel blocking device for safety.
D
D
Ensure the marker is de-gassed.
E
Push in and hold the POPS button and pull the POPS bonnet away
from the POPS body.
Attach the pre-set air system.
F
Rotate the air system clockwise into the POPS body.
Loosen the clamping feedneck.
G
Open the feedneck lever away from the feedneck.
Rotate the feedneck lever screw counter-clockwise.
Attach the loader.
H
If the feedneck is too tight, loosen the clamping feedneck more.
Secure the loader.
I
Rotate the feedneck lever screw clockwise to tighten.
Close the feedneck lever to secure.
Gas the marker.
J
Push the POPS bonnet into the POPS body until it engages.
PUSH FIRE when you are ready to play.
K
The marker will now fire when the trigger is pulled.
GTEK M170R
IMPORTANT! To operate the Safety Button see pages 8-9.
1
DO NOT over-tighten the barrel.
2
ALWAYS ensure the marker is de-gassed when setting up.
3
NEVER use CO2. Compressed air or Nitrogen only.
4
DO NOT over-tighten the feedneck. This may damage the marker.
5
WARNING!
Always ensure that the marker is off with a barrel blocking device installed and
that no paintballs are in the M170R or loader before installing an air system.
Compressed air and nitrogen systems can be extremely dangerous if handled
or used incorrectly.
Only attach an air system certified for use within the country of use.
Never add lubricants or grease into the fill adaptor of the air system regulator.
Ensure that all screws are tightened and no parts are loose before installing an
air system.
Do not pressurise the M170R without the bolt system correctly installed, as high
pressure gas will be emitted.
Do not install a compressed air system or load paintballs into the M170R until
you feel confident with your ability to handle the marker safely and responsibly.
