20 TECHNICAL

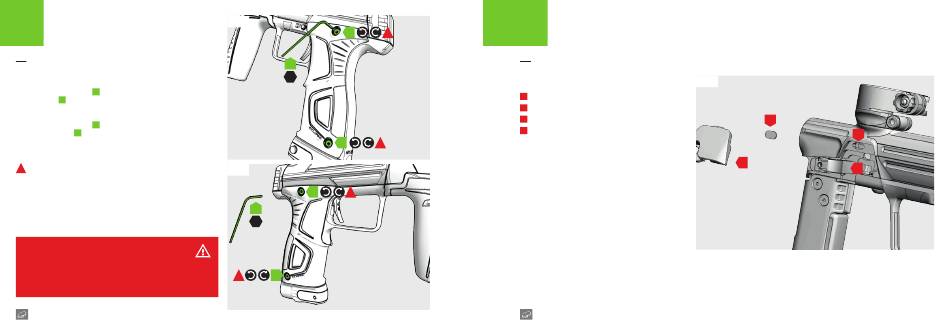

REMOVING GRIPS

FIG-1
Use a 5/64" (2mm) hex key to remove the grip screws on the left hand
A
side of the grip .
B
FIG-2
Use a 5/64" (2mm) hex key to remove the grip screws on the right
A
hand side of the grip .
B
Simply reverse the process to replace the rubber grips and screws.
DO NOT over-tighten the screws.
1
WARNING!
Always make sure the marker is off with a barrel blocking device installed and
that no paintballs are in the M170R or loader.
Compressed air and nitrogen systems can be extremely dangerous if handled
or used incorrectly.
GTEK M170R
FIG-1
B - +
1
A
5/64
B - +
1
FIG-2
- +
B 1
A
5/64
WARNING
- + B
1
21 TECHNICAL
DETENT COVER ASSEMBLY
FIG-1
Detent cover
A
Rubber detent
B
Detent cover latch
C
Detent seat
D
The elements within this diagram apply to
both sides of the marker.
GTEK M170R
FIG-1
B
D
A
C
