Sensor Espio Installation And Operation Manual page 15

14

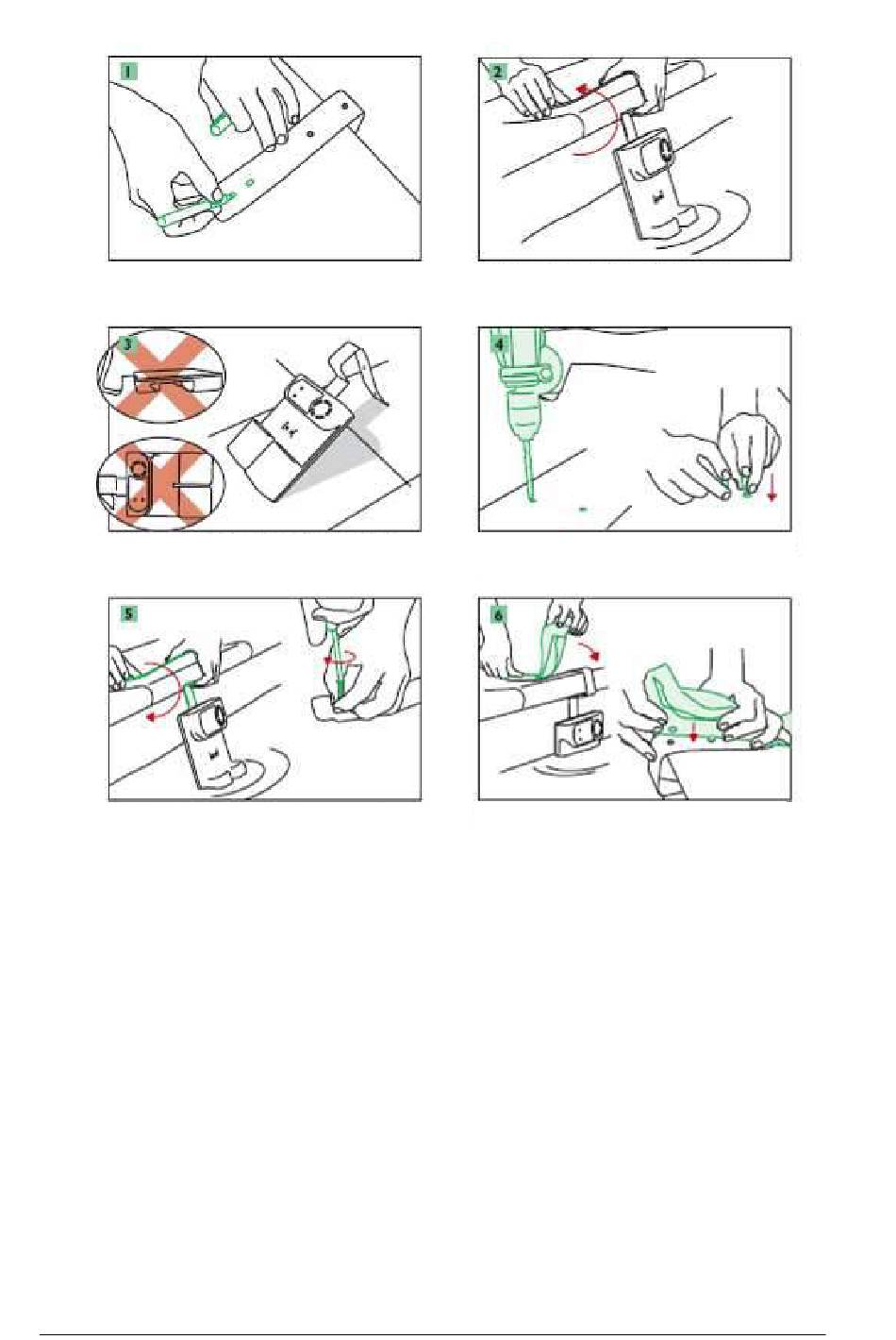

It is essential that Sensor Espio™ be handled
and positioned as shown.
Clip the attachment support on the coping
again. If there is a gap between the
attachment support and the coping, put the
wedging foam pad in it (cut it down to size if
need be). Tighten the 2 screws.
Make absolutely sure that Sensor Espio™
is vertical when handled, with the battery
compartment down.
Drill the 2 holes with a Ø8mm bit and put
in the two 2 rawplugs.
Fit the protection for the attachment
support.
-14-
