Digisol Ranger Series Quick Installation Manual
Load balancing router with 2xfe wan, 1x3g/4g enabled usb, 3xfe lan
Hide thumbs
Also See for Ranger Series:
- Quick installation manual (28 pages) ,
- Quick installation manual (16 pages) ,
- Quick installation manual (22 pages)
Related Manuals for Digisol Ranger Series
Summary of Contents for Digisol Ranger Series

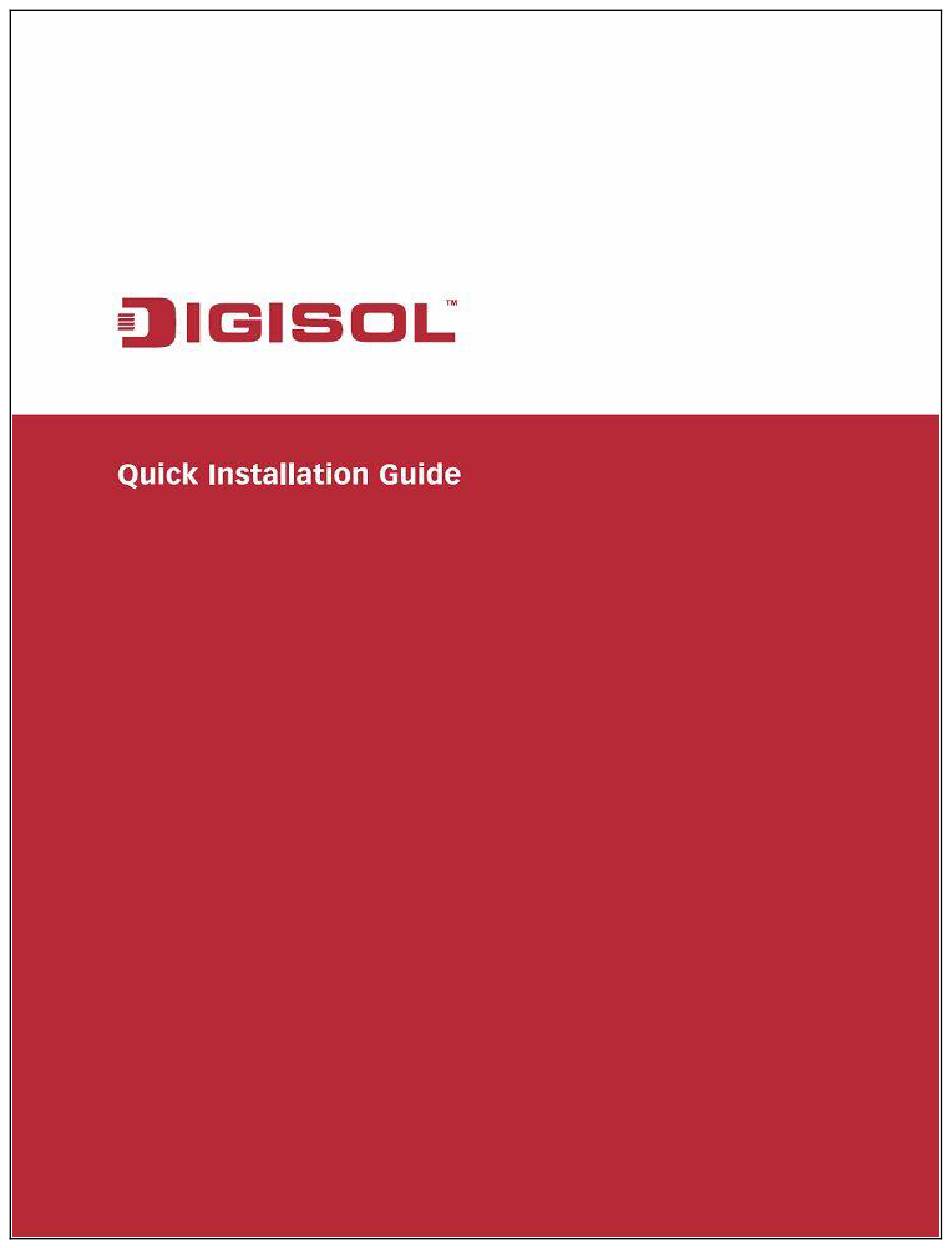

- Page 1 RANGER SERIES LOAD BALANCING ROUTER WITH 2xFE WAN, 1x3G/4G ENABLED USB, 3xFE LAN DG-LB1054UV V2.0 2018-08-28...
- Page 2 Copyright Copyright 2018 by DIGISOL Systems Ltd. All rights reserved. Company has an ongoing policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for latest information.
- Page 3 The following items should be present in your package: DG-LB1054UV (1 No.) Power Adapter Patch Cord Quick installation guide Installation software CD (includes User Manual & QIG) Make sure that the package contains above items. If any of the listed items is damaged or missing, please contact your retailer immediately.
-
Page 4: Safety Instructions
Safety Instructions Do not use the product in high humidity or high temperatures. Only use the power adapter that comes with the package. Using a different voltage rating power adaptor may damage the product. Do not open or repair the case yourself. If the Product is too hot, turn off the power immediately and have it repaired at a qualified service center. - Page 5 An Ethernet RJ-45 Cable or DSL modem. Network Requirements 3G/4G cellular service subscription. IEEE 802.11n or 802.11b/g wireless clients. 10/100/1000 Ethernet adapter on PC / NB. Computer with the following: Web-based Configuration Windows®, Macintosh, or Linux-based ...
-
Page 6: Hardware Installation
Hardware Installation FRONT VIEW REAR VIEW Power Reset ON/OFF Button Switch Receptor Auto MDI/ MDIX RJ-45 Ports for Power Adapter... - Page 7 LED Indicators Symbol Description OFF: Device is powered down. Orange: Device is booting up. Power Green (Steady): Device is powered on. Orange in flash: Device is in recovery mode or abnormal. Green: Ethernet connection is established. Green in flash: Data packet transferred through WAN.
-
Page 8: System Login
System Login Browse to Activate the Setup Wizard Type in the IP Address (http://192.168.123.254) * Preview Type the default Password ‘admin’ in the System Password and then click ‘login’ button. Remark: * 1. The default LAN IP address of this gateway is 192.168.123.254. If you change it,you need to type the new IP address. - Page 9 Following are the solutions to problems that may occur during the installation and operation of the DIGISOL DG-LB1054UV. 1) I cannot configure the router even when the cable is plugged and the LED is Lit. Do a Ping test to make sure that the load balancing Router is responding.
- Page 10 Press OK. Type ipconfig to get the IP of default gateway. Type “ping 192.168.123.254”. Assure that you ping the correct IP Address assigned to the load balancing Router. It will show four replies if you ping correctly. ...
