                                                                                                                      DG-LB1054 User Manual












DG-LB1054

5 Port Load Sharing Router

User Manual


V1.0
2013-11-30
As our products undergoes continuous development the specifications are subject to change without prior notice
1




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-LB1054 and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-LB1054

Summary of Contents for Digisol DG-LB1054

  • Page 1: User Manual

                                                                                                                          DG-LB1054 User Manual                           DG-LB1054    5 Port Load Sharing Router User Manual   V1.0 2013-11-30 As our products undergoes continuous development the specifications are subject to change without prior notice                            ...

  • Page 2: Table Of Contents

                                                                                                                          DG-LB1054 User Manual   INDEX  1. Product Information ..........................6 Product brief ..........................6 Main features and specifications of the product..............6 1.2.1 Main Features..........................6 1.2.2 Product specifications ......................... 8 2. Hardware Installation..........................9 2.1Product Image ........................... 9 2.2 Installation notes ..........................9 2.3 Install a router on Tabletop......................
  • Page 3                                                                                                                       DG-LB1054 User Manual   3.4.2 Intranet Configuration ......................23 3.4.3 WAN Network Configuration....................24 3.4.4 DHCP Configuration........................28 3.4.5 Port Mapping..........................29 3.4.6 Address translation ........................30 3.4.7 Dynamic Domain Name ......................33 3.4.8 Port ............................36 3.4.9 Monitoring..........................36 3.5 Security ............................37 3.5.1 Basic Options ..........................37 3.5.2 Connection Limit ........................38 3.5.3 Attack Protection ........................40 3.5.4 Firewall ............................42 3.5.5 Host filters ..........................
  • Page 4                                                                                                                       DG-LB1054 User Manual   3.8.3 Whiteboard ..........................66 3.8.4 Recognition..........................67 3.8.5 DNS Load Balance........................68 3.8.6 DNS Redirect/URL Redirect....................... 69 3.8.7 PING ............................69 3.8.8 Opening Address ........................70 3.8.9 Plug‐and‐Play..........................72 3.9 VPN Configuration......................... 73 3.9.1 PPTP client ..........................73 3.9.2 PPTP Server..........................74 3.9.3 L2TP Client ..........................76 3.9.4 L2TP Server ..........................77 3.9.5 L2TP IPSec ..........................79 3.9.6 IPSec VPN........................... 80 3.9.7 VPN Logs ............................
  • Page 5                                                                                                                       DG-LB1054 User Manual   3.11.1 Service configuration ......................90 3.11.2 Exceptional hosts ........................91 3.11.3 The event log ........................... 91 3.11.4 Alarm log ..........................92 3.11.5 The security log ........................93 3.11.6 Log............................93 4. Appendix ............................... 95 Hardware recovery configuration......................95                          ...

  • Page 6: Product Information

    Thank you for purchasing DIGISOL DG-LB1054 enterprise routers (in the following text, referred to as the product). DG-LB1054 can access a variety of ISP line, meeting your different needs. It supports multiple WAN traffic load balancing and line redundancy backup, broadband connections to achieve the highest efficiency.

  • Page 7: Bandwidth Management

    Remote management: Any one computer on a local area network or a wide area network can be restricted for remote administration. 4. Advanced features  DG-LB1054 supports the high performance intelligent flow control function.  Unique VPN features, allowing private LAN user connectivity through secured tunnel.

  • Page 8: Product Specifications

                                                                                                                          DG-LB1054 User Manual    DMZ/WAN2 port: Integrated 10/100Mbps port, separate DMZ network segment and WAN port cooperation supporting traffic load sharing and link backup. 6. LAN ports (LAN)  Integrated multi-port 10/100Mbps switch.  Dynamic Host Configuration Protocol (DHCP) service dynamically allocates IP address and the gateway, DNS Server and so on to computers in a local area network.

  • Page 9: Hardware Installation

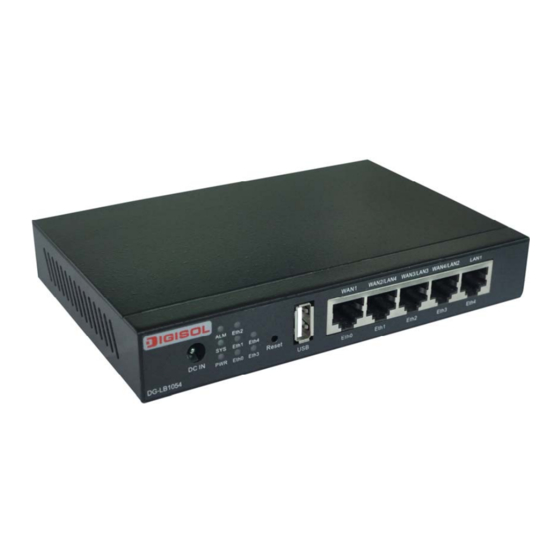

                                                                                                                          DG-LB1054 User Manual   2. Hardware Installation 2.1Product Image       (1) Ethernet Ports support flexible configuration so any port can be configured as WAN, LAN. (2) RST (Reset button): Hold down for 5-6 seconds to restore to the factory settings automatically.

  • Page 10: Install A Router On Tabletop

                                                                                                                          DG-LB1054 User Manual   2.3 Install a router on Tabletop In many cases, users do not have the standard 19-inch rack; you can place the router on the table. It is recommended to place the router on a table top or workbench pads.

  • Page 11: Router Power On Start

                                                                                                                          DG-LB1054 User Manual   2.6 Router power on start Step1: Confirm that the external network connection and intranet connection cables are correctly connected. Step 2: Plug in the power adapter. Step 3: Make sure the front panel PWR led is lit.

  • Page 12: Configuration

      3. Configuration 3.1 PC Configuration DG-LB1054 is the default IP to 192.168.0.1, subnet mask is 255.255.255.0. The settings can be changed however there will be default value as described below. PC setting steps are as follows: (1) The computer is connected to a port on the router.
  • Page 13                                                                                                                       DG-LB1054 User Manual   Click the "Properties" button, set the computer's IP address. Internet Protocol (TCP/IP) properties dialog box, select “use the following IP address", enter the “IP address” enter 192.168.0.xxx," subnet mask " 255.255.255.0" default gateway fill in 192.168.0.1(The router's default IP address).

  • Page 14: System Login

                                                                                                                          DG-LB1054 User Manual   3.2 System login In the Internet address bar, type http://192.168.0. 1, login the router configuration interface. Login tips page is displayed as shown below:                          Factory management router user name and password are “admin”, the default gateway is 192.168.0.1.
  • Page 15                                                                                                                       DG-LB1054 User Manual   Homepage screen displays the system status of a device, including run time, host name, Serial number and firmware version. You can view the system factory information. Resources status of the device, including CPU usage, memory usage, number of sessions and the number of active hosts, you can view in the system resource usage information.

  • Page 16: Monitoring

                                                                                                                          DG-LB1054 User Manual   3.3 Monitoring 3.3.1 Line chart    In the configuration page, you can see each line of the flow. Open the circuit flowchart page WEB management interface ->Monitor ->Line chart, as shown below:            ...

  • Page 17: Lan Monitoring

                                                                                                                          DG-LB1054 User Manual   3.3.2 LAN Monitoring   In the configuration page, you can see the need to review the network host information. Open the parameters page WEB management interface -> Monitor -> LAN Monitoring:             (1) Refresh: Select to automatically refresh the current flow page, or stopping the automatic page refreshes the current flow.

  • Page 18: Host Monitoring

                                                                                                                          DG-LB1054 User Manual       Note: (1) Click Information & wait for 2-3 seconds to refresh. Please be patient. Wait time depends on the system load. The larger the system load, longer the wait time. (2) Click on header to sort, remarks and IP/MAC Bound list associated notes.

  • Page 19: Connection Information

                                                                                                                          DG-LB1054 User Manual   2. Connection Information With host IP address defined on the Parameter tab, all the traffic received from defined host is listed in table below includes peer IP address, protocol type, Source/Destination Port, upload/Download utilization. Open the parameters page WEB management interface ->...

  • Page 20: Network Detection

                                                                                                                          DG-LB1054 User Manual   3.3.4 Network detection  1. Ping test In this page, you can send an ICMP Packet to a specified host through the system to monitor network performance and quality output results. Open Ping test configuration page WEB management interface -> Monitor-> Network Detection->Ping, as shown below:...
  • Page 21                                                                                                                       DG-LB1054 User Manual   2. The Tracert test Open configuration page WEB management interface -> Monitor -> Network detection - >Tracert, as shown below:        (1) Detecting address: The system sends Tracert target host. (2) View: Evaluates to 1, 3, 5 and10 jumps.

  • Page 22: Network Configuration

                                                                                                                          DG-LB1054 User Manual   3.4 Network Configuration 3.4.1 Flexible Port   In this page, you can customize the routing WAN and LAN ports. Open the port configuration page WEB management interface -> Network -> Flexible port.       (1) Port definition: Select WAN port and LAN port number, such as 1WAN / 4LAN represents a 1 WAN port and 4 LAN ports.

  • Page 23: Intranet Configuration

                                                                                                                          DG-LB1054 User Manual   3.4.2 Intranet Configuration  In this page, you can modify the router LAN port TCP/IP configuration. Realization of network interconnection between the routers in LAN. Click the Network configuration link on the left WEB management interface -> Network -> LAN.

  • Page 24: Wan Network Configuration

                                                                                                                          DG-LB1054 User Manual   Tip: When the hosts within a subnet are all public network IP address, disable network address translation. Note: After saving, all configurations with immediate effect, you do not have to restart. 3.4.3 WAN Network Configuration  In this page, you can use the WAN menu to select WAN port configuration. Due to identical WAN port configuration, we will explain here WAN1 configuration.
  • Page 25                                                                                                                       DG-LB1054 User Manual   1. Fixed address If you are using an ISP which provides Static IP address access, you should use this configuration.                    (1) IP address: ISP provides a static IP address. (2) Subnet mask: ISP provides the subnet mask.
  • Page 26                                                                                                                       DG-LB1054 User Manual   2. PPPoE Dial-up (Virtual dial-up)                      (1) Virtual dial-up (PPPOE): ADSL virtual dial-up (or a media over Ethernet PPPOE dial-up). (2) User name and Password: ISP provides PPPoE Internet access account number and password.
  • Page 27                                                                                                                       DG-LB1054 User Manual   3. DHCP Getting                    (1) Server IP: ISP (for example MTNL) provides IP by DHCP Server. (2) Save: Write the static configuration of the router, the parameters to take effect. 4. No network connection: - Disables WAN  ...

  • Page 28: Dhcp Configuration

                                                                                                                          DG-LB1054 User Manual   3.4.4 DHCP Configuration  In the configuration page, you can configure and enable system DHCP Server functionality, automatically for IP address to LAN PCs. Open DHCP Setup page WEB management interface -> network configuration ->DHCP, as shown below:  ...

  • Page 29: Port Mapping

                                                                                                                          DG-LB1054 User Manual   Note: (1) "State actions" select "enable", the "*" identity is required. (2) "Gateway" is left blank, the system defaults to LAN IP, and (This is usually left blank). (3) " DNS Server" is left blank, the system defaults to LAN IP, and (This is usually left blank).

  • Page 30: Address Translation

                                                                                                                          DG-LB1054 User Manual   (1) Port map: Also known as virtual hosting, a mechanism for achieving internal host is open to public network. (2) The NAT (Internal server) address: To open the specified service host in the intranet IP addresses.
  • Page 31                                                                                                                       DG-LB1054 User Manual              (1) NAT type: Select a different type of address translation, when you select the Masquerade mode, fill out the address for network configuration after the conversion of the IP address, when you select the SNAT, you can manually specify a transformation after the IP address (when a wide-area network port has more than one IP Address, you can use this function) When you select ACCEPT, it selects the entire range of subnet mask.

  • Page 32: Dmz Host

                                                                                                                          DG-LB1054 User Manual   2 DMZ Host In the configuration page, you can configure DMZ host rule. Internal Server can be accessed using one of External WAN IP address. Opens the add conversion settings page WEB management interface -> network configuration ->...

  • Page 33: Dynamic Domain Name

                                                                                                                          DG-LB1054 User Manual   3.4.7 Dynamic Domain Name  1. NO IP In the configuration page, you can configure dynamic DNS client parameters, dynamic DNS feature is enabled. Open dynamic DNS settings page WEB management interface -> Network configuration -> Dynamic Domain->NO IP  ...
  • Page 34                                                                                                                       DG-LB1054 User Manual   (4) User name: User to register dynamic domain user name; (5) Password: Password to register for dynamic domain name. (6) Work line: WAN port selection (7) Save: Write the static configuration of the router to take effect.
  • Page 35                                                                                                                       DG-LB1054 User Manual   (7) Remark: Add Description if any. (8) Save: Write the static configuration of the router to take effect. 3. 9451 This page is used to configure the dynamic DNS address from 9451 provider. You can enable/disable dynamic DNS.

  • Page 36: Port

      3.4.8 Port  DG-LB1054 has 5 number of 10/100 mbps ports. All the ports are in Auto identify (auto- negotiations) state by default for speed-duplex parameter. Based on the type of device connected on port, speed setting can be either set to auto detect or can be forced to 10/100Mbps Half/Full Duplex.

  • Page 37: Security

                                                                                                                          DG-LB1054 User Manual   3.5 Security 3.5.1 Basic Options  Open the dynamic DNS settings page WEB management interface->Security->Basic options, as shown below:     (1) Prevent IP confliction: LAN hosts may be incorrectly set to and the same as the network address of the router IP address which causes a conflict that affects the network. Enable the "prevent IP conflicts"...

  • Page 38: Connection Limit

                                                                                                                          DG-LB1054 User Manual   3.5.2 Connection Limit  In this page you can configure the connection limit to specify the maximum number of concurrent connections to a single machine. When you reached the maximum number of connections, the router will refuse new connections for this client request.
  • Page 39                                                                                                                       DG-LB1054 User Manual   Exceptive host: This option can be set individually for a specific client connection limit settings in the following figure:       (1) Status operation: Enable or disable a rule set. (2) Start IP: Sets the exception host’s starting IP value.

  • Page 40: Attack Protection

                                                                                                                          DG-LB1054 User Manual   3.5.3 Attack Protection  1 Intranet defense In this page, you can modify "Intranet/LAN Protection" service status for DDoS attack detection and prevention. Open intranet defense configuration page WEB management interface ->Security ->Attack protection, as shown below:        ...
  • Page 41                                                                                                                       DG-LB1054 User Manual             (6) Status operations: Enable or disable the rule. (7) Start IP and End IP: Specific IP clients Starting and Ending IP. (8) Save: Write the static configuration of the router, the parameters to take effect.

  • Page 42: Firewall

                                                                                                                          DG-LB1054 User Manual   2 Extranet (WAN side) defense (1) WAN1 Response connection threshold: Maximum value routers WAN1 can handle for network connections per second. (2) WAN2 Response connection threshold: Maximum value routers WAN2 can handle for network connections per second.
  • Page 43                                                                                                                       DG-LB1054 User Manual   filtering, NAT on behalf of Network address transformation. (3) Rule List: Select the firewall rules OUTPUT, INPUT, FORWARD. (4) Action: Matching results to a specified packet, optional ACCEPT (allow) or DROP (forbidden). (5) Working hours: The time period set up firewall rules in force.

  • Page 44: Host Filters

                                                                                                                          DG-LB1054 User Manual   3.5.5 Host filters  In this page you can configure the host filtering rules, under which hosts are allowed to pass and which hosts the prohibited. Open the host filter settings page WEB management interface ->Security->Host filter, as shown below:  ...

  • Page 45: Ip Mac Binding

                                                                                                                          DG-LB1054 User Manual   Example: When a user is encountered with IP Address 192.168.10.2 and MAC address 00:11:22:33:44:55, then that specific user will be prohibited or allowed. If user changes its IP address then this setting will not work as it checks for exact match.
  • Page 46                                                                                                                       DG-LB1054 User Manual   binding rule.     (9) Exceptive host: Enter the IP address of the Exceptive host. (10) Import /Export: Import IP/MAC address list, easy to operate, as shown below:                                  ...

  • Page 47: Qos

                                                                                                                          DG-LB1054 User Manual   3.6 QoS 1. Smart QOS In this page you can configure the up and down lines which specify the external network assigned bandwidth. Open the intelligent flow control settings page WEB management interface ->QOS-> SmartQoS, as shown below:  ...
  • Page 48                                                                                                                       DG-LB1054 User Manual   Speed Limit In the configuration page, you can target a single host between different applications available bandwidth ratio, treated differently, specify the largest proportion of different applications available. Open the channel settings page WEB management interface ->QOS ->Speed limit, as shown below:  ...
  • Page 49                                                                                                                       DG-LB1054 User Manual   Exceptive Host Open the channel settings page WEB management interface ->QOS-> Exceptive host, as shown below: Enter the IP Address range for which speed limit can be specified.              Advanced Open the channel settings page WEB management interface->QOS->Advanced, as shown below:  ...
  • Page 50                                                                                                                       DG-LB1054 User Manual   2. IP Control User based or groups based internet bandwidth restrictions can be defined here. With uplink/Downlink speed defined in the specific limit, users are not allowed to cross the defined limit. Open the channel settings page WEB management interface->QOS->IP Filter, as shown below:  ...

  • Page 51: Internet Authentication

                                                                                                                          DG-LB1054 User Manual   3.7 Internet Authentication 3.7.1 PPPOE service  Open PPPOE service configuration page WEB management interface ->Internet Auth ->PPPOE. 1. Service management     (1) State action: "Service management" function restart disabled. (2) Start IP address: IP address of the starting IP.
  • Page 52                                                                                                                       DG-LB1054 User Manual   Note: (1) In this page, configure modified and saved, click on the "Save" button immediately. (2) User management. 2. On the use of PPPoE service users to management.       (1) User name: The user name of the user logged on to the system.
  • Page 53                                                                                                                       DG-LB1054 User Manual   Note: (1) In this page, configure modified and saved, click on the "Save" button to take effect immediately. (2) " *" Identity is required. 3. Import/Export In this page you can view PPPoE user list for import and export operations, as shown below:  ...
  • Page 54                                                                                                                       DG-LB1054 User Manual   4. dial-in list In this page you can view using PPPOE dial routing user list, as shown below:       (1) User name: PPPoE user name of the account.   (2) IP address: User host access to IP addresses.
  • Page 55                                                                                                                       DG-LB1054 User Manual   5. Billing inquiries In this page you can view the open billing PPPoE user billing status, as shown below.     (1) User name: PPPoE user name of the account. (2) Billing: Billing of accounts. (3) Expiration time: PPPOE account expiration time.
  • Page 56                                                                                                                       DG-LB1054 User Manual   6. The renewal notice In this page on the net PPPoE users will get an Expiration notice as configured below to remind the user to renew in time.     (1) State action: Renew bulletin features enabled and disabled state.

  • Page 57: Web Authentication

                                                                                                                          DG-LB1054 User Manual   3.7.2 WEB authentication  1. Service configuration In the configuration page, you can configure WEB authentication capabilities,      (1) Status operation: Select Enable or Disable WEB authentication capabilities. (2) Maturity mobile users: There are two options: Auto and Custom.
  • Page 58                                                                                                                       DG-LB1054 User Manual   2. Fixed user In the configuration page, you can configure the login WEB authentication feature fixed account, as shown:     (1) Status: Fixed user chooses whether to enable or disable the current configuration. (2) User name: User login WEB authentication of the user name.
  • Page 59                                                                                                                       DG-LB1054 User Manual   3. Mobile users In the configuration page, you can do this by routing, automatic generation of landing WEB authentication flow accounts for internal movement of personnel management for your convenience, as shown below:     (1) Generated automatically (Auto): click on the automatically generated function, you can choose to build mobile account number and expiration date.
  • Page 60                                                                                                                       DG-LB1054 User Manual   5. VMAC (Exception MAC) In the configuration page, you can set up against WEB authentication capabilities limited exception of MAC addresses, as shown below:       (1) Status operations: Select Enable or disable the current exception MAC rules.
  • Page 61                                                                                                                       DG-LB1054 User Manual   7. Custom Logo With Web authentication enabled, user is promoted with the authentication page when trying to access the internet or network resources. The default page can be customized by modifying web page content which includes Logo, publicity image and login text.

  • Page 62: Authentication Log

                                                                                                                          DG-LB1054 User Manual   3.7.3 Authentication Log  This window displays warning, notification messages related to Web Auth and PPPOE.                                ...

  • Page 63: Advanced Configuration

                                                                                                                          DG-LB1054 User Manual   3.8 Advanced Configuration 3.8.1 Static Routing  In the configuration page, you can configure static routing, which manually specify a network access to the path. Static routing features determine the course of data flows on your network. Open the static route configuration page WEB management interface -> Advanced Configuration ->...
  • Page 64                                                                                                                       DG-LB1054 User Manual   Import/Export Static routes can be added on rule by rule basis using a “static routing” tab. For large network deployment, multiple routes can be imported at once using Import/Export Tab. Refer following consideration for rules import.

  • Page 65: Schedule

                                                                                                                          DG-LB1054 User Manual   6. The null option (such as remarks) uses - to occupy. The next-hop exit is extranet port, such as WAN1. Example: 0 192.168.0.2 192.168.0.2 12.34.56.78 12.34.56.78 WAN1 192.168.0.1 0 Remarks1 Once the routes are added in the routing table, they can be listed for review using Export tab.

  • Page 66: Whiteboard

                                                                                                                          DG-LB1054 User Manual   3.8.3 Whiteboard  Administration can make on-demand or scheduled based notifications to end user. Announcement are customization and can include information related to Network Downtimes, policy modification etc. Announcements can be made onetime, daily basis or at more customized time using custom option. ...

  • Page 67: Recognition

                                                                                                                          DG-LB1054 User Manual   3.8.4 Recognition                                         ...

  • Page 68: Dns Load Balance

                                                                                                                          DG-LB1054 User Manual   3.8.5 DNS Load Balance  When there are multiple DNS servers hosted in network, this tab can be used to distribute the DNS resolution load among defined servers. Up to 8 server can be defined in the table below with service weight varying from 1-100. Open the static route configuration page WEB management interface ->...

  • Page 69: Dns Redirect/Url Redirect

                                                                                                                          DG-LB1054 User Manual   3.8.6 DNS Redirect/URL Redirect  DNS or URL rules for redirection can be defined in these tabs. When user tries to resolve/access a specific domain/URL, router diverts a request to defined DNS server/URL based on match list. Users can be added to exception list so that the defined set of rules won’t be application for specific users.

  • Page 70: Opening Address

                                                                                                                          DG-LB1054 User Manual   2. Exception IP: Do not enable PING exception outside the network IP address, as shown below:     3.8.8 Opening Address  In the configuration page, you can configure this routed intranet or extranet configuration IP addresses, an exception from the firewall operation, normally used in three-layer routing, or outside the network for more than one IP address case.
  • Page 71                                                                                                                       DG-LB1054 User Manual   (2) IP address: Enter the IP address. (3) Subnet mask: Routing based on the IP address and subnet mask to calculate to open the IP address range. (4) Remarks: Explanations for this opening address rules. (5) Save: Write the static configuration of the router, the parameters to take effect.

  • Page 72: Plug-And-Play

                                                                                                                          DG-LB1054 User Manual   3.8.9 Plug‐and‐Play  If this feature is enabled, LAN hosts will be unreachable to each other and PPPoE users are not able to access internet. Add MAC address of a specific user to be exempted from rule list.

  • Page 73: Vpn Configuration

                                                                                                                          DG-LB1054 User Manual   3.9 VPN Configuration 3.9.1 PPTP client  In this page, you can configure PPTP client and PPTP clients can dial in to the PPTP Server in the routing, as shown below:           (1) Status operation: PPTP client Enabled.

  • Page 74: Pptp Server

                                                                                                                          DG-LB1054 User Manual   3.9.2 PPTP Server  The router supports PPTP VPN that is mainly used for remote users. Use the specified user account through the Internet connection to the corporate network establish a connection, this machine is the same as the one host in the intranet.
  • Page 75                                                                                                                       DG-LB1054 User Manual       (3) Password: The user's login password. (4) Confirm password: Confirm password must match the password entered above. (5) Client type: When dialing VPN Server client to a network (router) when this feature is selected.

  • Page 76: L2Tp Client

                                                                                                                          DG-LB1054 User Manual   3. Dial list In this page, you can view the dial-in to these routing VPN users, as shown below:       (1) User name: Dial-in to this routing VPN user name of the user, assigned by the route.

  • Page 77: L2Tp Server

                                                                                                                          DG-LB1054 User Manual   (4) Password: Login L2TP Server password, assigned by the server. (5) L2TP Server segment: L2TP Server IP address. (6) L2TP Server mask: L2TP Server subnet mask. (7) LAN2LAN NAT: Enable if LAN2LAN NAT is required (8) Data Gateway: It will pass internet request via tunnel.

  • Page 78: User Management

                                                                                                                          DG-LB1054 User Manual   2. User management Create, delete and edit VPN service user account. (1) State action: VPN enabled or disabled status of user. (2) User name: Create username & Password for L2TP Clients   (3) Password: The user's login password.

  • Page 79: L2Tp Ipsec

                                                                                                                          DG-LB1054 User Manual   3.9.5 L2TP IPSec   L2TP over IPSec VPNs enable a business to transport data over the Internet, while still maintaining a high level of security to protect data. You can use this type of secure connection for small or remote office clients that need access to the corporate network. You can also use L2TP over IPSec VPNs for routers at remote sites by using the local ISP and creating a demand-dial connection into corporate headquarters.

  • Page 80: Ipsec Vpn

                                                                                                                          DG-LB1054 User Manual   3.9.5 IPSec VPN  In this page, you can configure IPSec VPN Tunnel. Enable the IPSec state operation globally as shown below.       Fill in all the details for IPSec Rules Configuration in respective fields as shown below,  ...
  • Page 81                                                                                                                       DG-LB1054 User Manual   Define following parameters IPSEC Tunnel 1. Status Operation: Enabled/Disabled 2. Name: Identification name for Tunnel Interface 3. Way: Auto/Custom. 4. Active Connection: Use this tunnel as either active or standby. 5. Local Tunnel Interface: WAN1/WAN2 6. Local IP: Define Local LAN ip address 7.

  • Page 82: Vpn Logs

                                                                                                                          DG-LB1054 User Manual   Tunnel status will display the status of the configured tunnel. Tunnel state will be UP (active) if both routers negotiate all the defined parameters successfully.        3.9.7 VPN Logs  All log messages related to Tunnel negotiation are displayed on this page.

  • Page 83: System

                                                                                                                          DG-LB1054 User Manual   3.10 System 3.10.1 WEB Management settings  Open the basic settings page WEB management interface->System settings->WEB Management, as shown below:       (1) Host name: Name of the router. (2) WEB intranet port: Intranet login to the router using the WEB management port.

  • Page 84: Administrator Settings

                                                                                                                          DG-LB1054 User Manual   3.10.2 Administrator settings  In this page, you can set login WEB Management page of the user's user name, password, and managing permissions. Open the Administrator's configuration page WEB management interface->System-> Administrator, as shown below:       (1) User name: The user name of the user logged on to the system.

  • Page 85: Profile

                                                                                                                          DG-LB1054 User Manual   3.10.3 Profile  1. Restore Factory In the configuration page, you can configure router restore factory operations. Open restore factory settings page management interface->System-> Administrator ->Restore factory settings, as shown below:       Restore: Click to restore factory configuration operation.

  • Page 86: Firmware Upgrade

                                                                                                                          DG-LB1054 User Manual   Note: After you recover the backup configuration was successful, the system will automatically restart. 3. Save the current In the configuration page, you can save the current configuration of the router. Opens the Save current configuration page WEB management interface -> System Setup - >Administrator ->Save current, as shown below:...

  • Page 87: System Time

                                                                                                                          DG-LB1054 User Manual   Current firmware version: Displays the version number of the software used by the current system. The upgrade file: You want to use to upgrade your system software package, supplied by the manufacturer. Note: (1) "*" identity is mandatory field (2) Firmware upgrade once started do not terminate, the whole upgrade process needs 3- 5 minutes.

  • Page 88: Network Time

                                                                                                                          DG-LB1054 User Manual   2. System Timezone Select the timezone parameter as per the County settings. For India, select from drop-down list as (GMT+5.30) India and save settings. 3. Network Time Auto detect or manually define the IP address of NTP server for time synchronization.

  • Page 89: Restart

                                                                                                                          DG-LB1054 User Manual   3.10.6 Restart  In the configuration page, you can reset the router operations. Restart the configuration page, open WEB management interface ->System->Restart, as shown:     Restart: Select this button; click "apply", the router will restart now. Timed cycle: To the routing set an automatic restart of the time.

  • Page 90: System Logs

                                                                                                                          DG-LB1054 User Manual   3.11 System logs Record router running profile, save the logging information to help us for fault location, troubleshooting and network security management, Can help us analyze the device is working correctly, network health. 3.11.1 Service configuration  Opens the service configuration page WEB management interface->System logs->Service, as shown below:  ...

  • Page 91: Exceptional Hosts

                                                                                                                          DG-LB1054 User Manual   3.11.2 Exceptional hosts  Opens the log configuration page WEB management interface -> System logs-> exceptional hosts, as shown:   (1) IP addresses: Sets the exception of host IP addresses. (2) Exception description: Set log contents are ignored by this exceptional host.

  • Page 92: Alarm Log

                                                                                                                          DG-LB1054 User Manual   (1) Time: Instant time system status change occurs. (2) Level: Is divided into information and warnings. "Information" is a record runs of events, the "warning" record run events on the basis of the alerts. (3) Message: Record run of events.

  • Page 93: The Security Log

                                                                                                                          DG-LB1054 User Manual   3.11.5 The security log  This log tracks events such as logon, change access permissions and system startup and shutdown. Open the security log configuration page WEB management interface->System logs-> Security, as shown below:       (1) Time: Instant time system status change occurs.
  • Page 94                                                                                                                       DG-LB1054 User Manual   (1) Time: Instant time system status change occurs. (2) Level: Is divided into information and warnings. "Information" is a record run of events, the "warning" record run events on the basis of the alert. (3) Message: Record run of events.

  • Page 95: Appendix

                                                                                                                          DG-LB1054 User Manual   4. Appendix Hardware recovery configuration  If router password loss or other reasons, you need to configure the router back to its factory configuration when, through the device front panel RST/CLR button configuration empty. Action steps: Step 1: To power up the router, start the routing to a functional State (SYS light flashes regularly).
