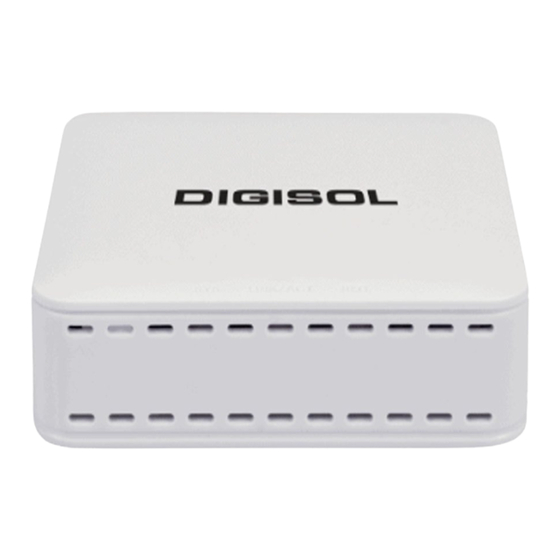

Gepon onu router with 1 pon and 1 giga port

Advertisement

Quick Links

GEPON ONU Router with
1 PON and 1 Giga Port
DG-GR1010
V2.0
05-01-2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG-GR1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digisol DG-GR1010

  • Page 1 GEPON ONU Router with 1 PON and 1 Giga Port DG-GR1010 V2.0 05-01-2021...
  • Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: ® DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.
  • Page 3 Overview 1:1 Product Description DG-GR1010 ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design an EPON Gigabit Ethernet products. It is based on mature and stable, cost-effective EPON technology,...
  • Page 4 1:3 Technical Parameters Technical item DG-GR1010 PON interface 1 EPON connector, SC single-mode/single-fiber, downlink/uplink 1.25Gbps Wavelength Tx:1310nm, Rx:1490nm Optical interface SC connector LAN interface 1*10/100/1000Mbps auto adaptive Ethernet interfaces RJ-45 connector 3 For Status of PON, LAN, SYS Operating condition Temperature: -10°C ~ +55°C...
  • Page 5: Installation

    Installation 2:1 Installation Requirements To avoid equipment damage caused by improper use and personal injury, please observe the following precautions: Do not place the device near water or in damp places, in order to ● prevent water or moisture from entering the device. Do not place the device in an unstable place, avoid falling damage to ●...
  • Page 6 1. Installed on the desktop Place the machine on a clean bench, this installation is relatively simple, you can observe the following operation: Ensure the smooth workbench. ● Around the device enough space for heat dissipation. ● Do not place objects on the device. ●...
  • Page 7: Web Management

    Web Management EPON ONU provides simple Web management functions, including Device Information, modify Lan Managemenet IP address, Loid and Password, Configuration File backup and restore, firmware upgrade etc... NOTE: About More ONU Detail Configurations should be configured via CTC OAM Protocols From OLT.
  • Page 8 Figure 4 Device Information Device Info Menu displays the current device base informations, including Hardware Version, Software Version, Boot Loader Version. Note: 1. All the device information may be changed, the received device shall prevail.
  • Page 9 Figure 5 Modify Loid and Password OID Menu displays the current device Loid and Password informations. Loid: 0-24 bytes. Password: fixed 10 bytes. Note: 1. Usually no need to modify the Version and Vendor Product Code information, otherwise it may lead to ONU registration problems. 2.
  • Page 10 Figure 6 Reboot/ Restore Default Reboot: The operation to reboot the device. Restore Default: The operation to restore the device to its factory configuration. Note: 1. Press RST button over 10 seconds, ONU can restore factory defaults and reboot. 2. Press RST button quickly, ONU reboot.
  • Page 11 Figure 7 Upgrade Firmware upgrade Menu displays the current equipment upgrades related information.
  • Page 12 Figure 8 Backup/ Restore Configuration Backup Configuration: The operation to backup configuration from the device. Restore Configuration: The operation to restore configuration from a configuration file.
  • Page 13: Troubleshooting

    Troubleshooting 1. After power all the lights are lit? Reasons: 1) Power connection errors 2) Power is not normal. Solution: 1) Check that the power cable is connected 2) The rear panel of the power supply is turned on. 2. GE / FE led does not light? Reasons: 1) Network cable is damaged or loose connection 2) Cable type error;...
  • Page 16 DIGISOL SYSTEMS LIMITED L-7, Verna Industrial Estate, Digisol is a Subsidiary of Smartlink Holdings Limited Salcete, GOA - 403722 www.digisol.com 1800 209 3444 helpdesk@digisol.com...
