XPON ONU 1200Mbps
Wireless Router with
1 PON, 2 LAN (Gigabit)
and with / without
1 FXS Port
DG-GR6821AC and DG-GR6821AC-NV
INDIA
ER NO. : TEC14762301
MODEL NO. : DG-GR6821AC
ASSOCIATED MODEL : DG-GR6821AC-NV
CERTIFICATE NO. : 147600341
ISSUED DATE : 18-NOV-2024
VALIDITY UPTO : 17-NOV-2026
COUNTRY OF ORIGIN : INDIA
COUNTRY OF MANUFACTURING : INDIA
CERTIFIED
V1.1
10-12-2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digisol DG-GR6821AC
Summary of Contents for Digisol DG-GR6821AC

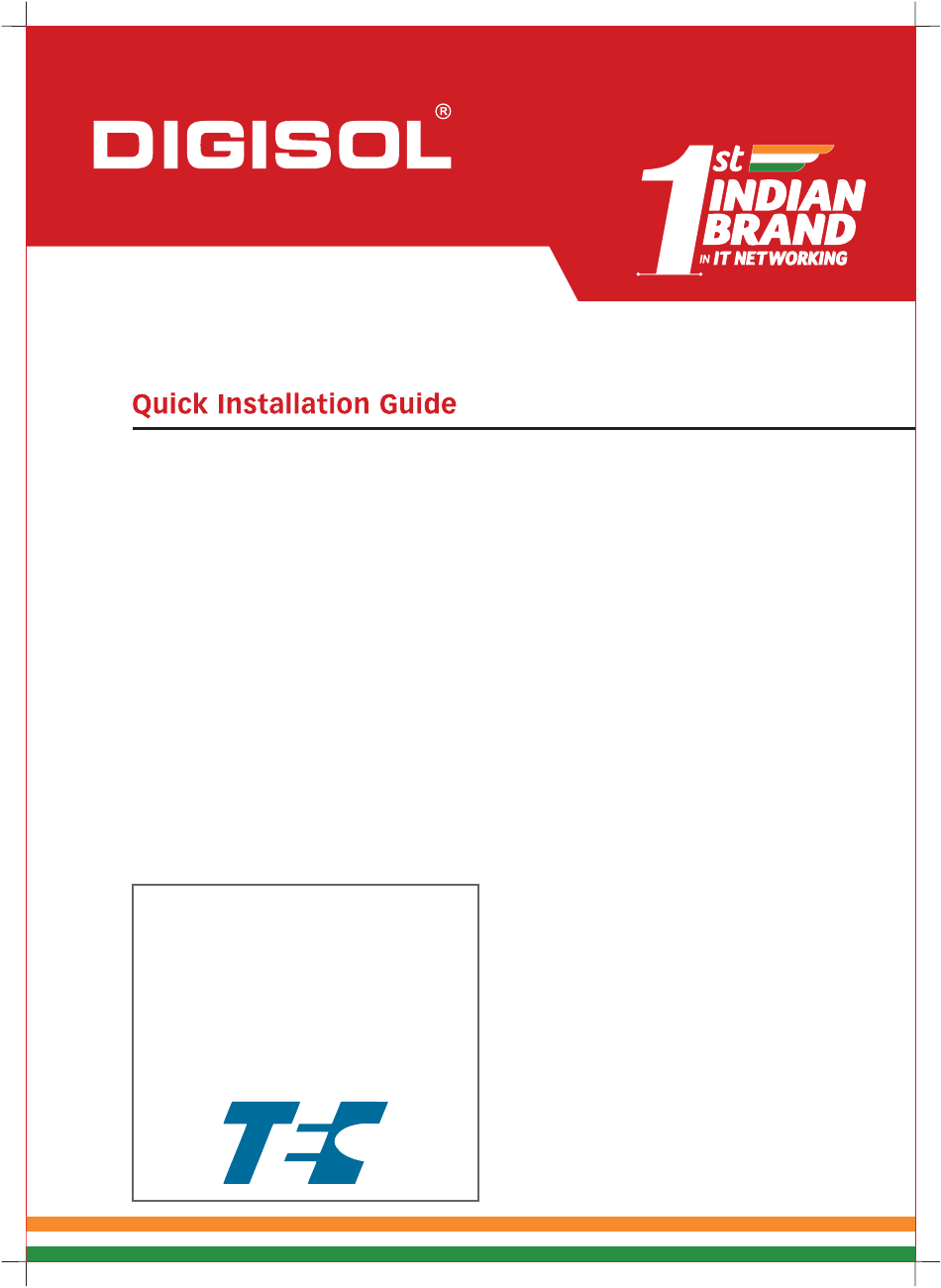

- Page 1 / without 1 FXS Port DG-GR6821AC and DG-GR6821AC-NV INDIA ER NO. : TEC14762301 MODEL NO. : DG-GR6821AC ASSOCIATED MODEL : DG-GR6821AC-NV CERTIFICATE NO. : 147600341 ISSUED DATE : 18-NOV-2024 VALIDITY UPTO : 17-NOV-2026 COUNTRY OF ORIGIN : INDIA...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: ® DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.
-
Page 3: 1:1 Product Description
1:1 Product Description DG-GR6821AC ( 2LAN + 1 POTS + Wi-Fi) and DG-GR6821AC-NV ( 2LAN + Wi-Fi) are dual mode HGU designed for FTTH networks. These devices support both GPON and EPON technology and can switch between the two technologies automatically. It is a dual band ONU thus facilitating faster wireless performance. -
Page 4: Technical Parameters
Humidity : 5% to 95% (non condensing) Temperature: -40°C ~ 70°C Storing condition Humidity : 5% to 95% (non condensing) DG-GR6821AC : 12V / 1.5A external AC-DC power adaptor Power supply DG-GR6821AC-NV : 12V / 1A external AC-DC power adaptor Dimension 178mm ×... - Page 5 1.4 Package Content Contents Quantity 1 pc Quick Installation Guide 1 pc Power Adaptor 1 pc...
-
Page 6: Installation
Installation Installation Environment Requirements ONU equipment must be installed in the interior, and ensure the following conditions are met: • Confirmation at the ONU installation at sufficient space to facilitate cooling machine. • ONU suitable operating temperature is -10°C ~ 55°C humidity of 5% to 95% •... - Page 7 Mark Status Description The device is powered up. Power The device is powered down. The device is registered to PON system. Registration Device is not registered to PON system. Blink Device is registering. Blink Device does not receive optical signal. Optical signal Device has received optical signal.
- Page 8 Figure 4 Interface/Button Panel Name DG-GR6821AC Connect to OLT by SC type fiber connector, single mode optical fiber cable. Connect the telephone with FXS port by telephone wire. Connect PC or other devices with Ethernet port by Cat5 LAN1/2 cable, RJ-45 connector.
-
Page 9: Web Management
Web Management 3.1 Default Configuration The following is default configuration information for web management. Local ( LAN access) Username: user , Password: user LAN port management IP address: 192.168.1.1/24 3.2 Basic Configuration Fig 5. Web Login Web Login Default username: user, password: user Figure 6 Status Status page displays status of device, PON and some configuration such as WAN, LAN, WLAN, VOIP and so on. - Page 10 Figure 7 LAN settings IP Address and Subnet Mask: LAN port IP address and mask. DHCP option: Enable or disable DHCP server and configure IP address pool , DNS, etc...
- Page 11 Figure 8 WLAN settings WLAN settings include 5G and 2.4G Wi-Fi Settings. WLAN Basic displays the current configuration information. Modify these parameters to change WiFi basic features. Security is used to set up encryption for each SSID...
- Page 12 Figure 9 User Manage User manage is used to modify the password of current login user account. Fig 10. Device Manage Device Manage is used to save configurations and reboot device.
-
Page 13: Troubleshooting
Troubleshooting 1. After powered on, all the lights are not lit? Reasons: 1) Power connection errors 2) Power is not normal. Solution: 1) Make sure that the power cable is connected properly. 2) Make sure the power supply switch is turned on. 2. - Page 14 4. LOS LED flashes? Reasons: 1) Fiber failure; 2) Central office equipment failure. Solution: 1) Inspect fiber is connected properly, check whether connected to the proper connector or not , check whether optical power is normal. 2) Contact your operator. 5.
- Page 16 DIGISOL SYSTEMS LIMITED L-7, Verna Industrial Estate, Salcete, GOA - 403722 1800 209 3444 www.digisol.com helpdesk@digisol.com Digisol is a Subsidiary of Smartlink Holdings Limited...
