Digisol DG-LB1054UV User Manual
  1. Manuals
  2. Brands
  3. Digisol Manuals
  4. Network Router
  5. DG-LB1054UV
  6. User manual

Digisol DG-LB1054UV User Manual

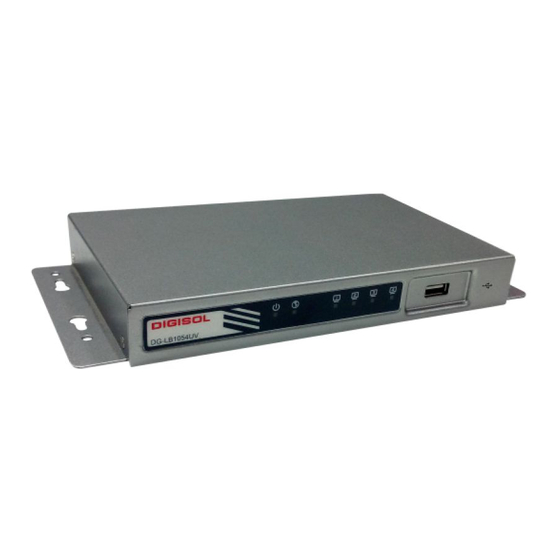

Load balancing router with 2xfe wan , 1x3g/4g enabled usb, 3xfe lan
Hide thumbs Also See for DG-LB1054UV:
Table of Contents

Advertisement

Quick Links

Download this manual

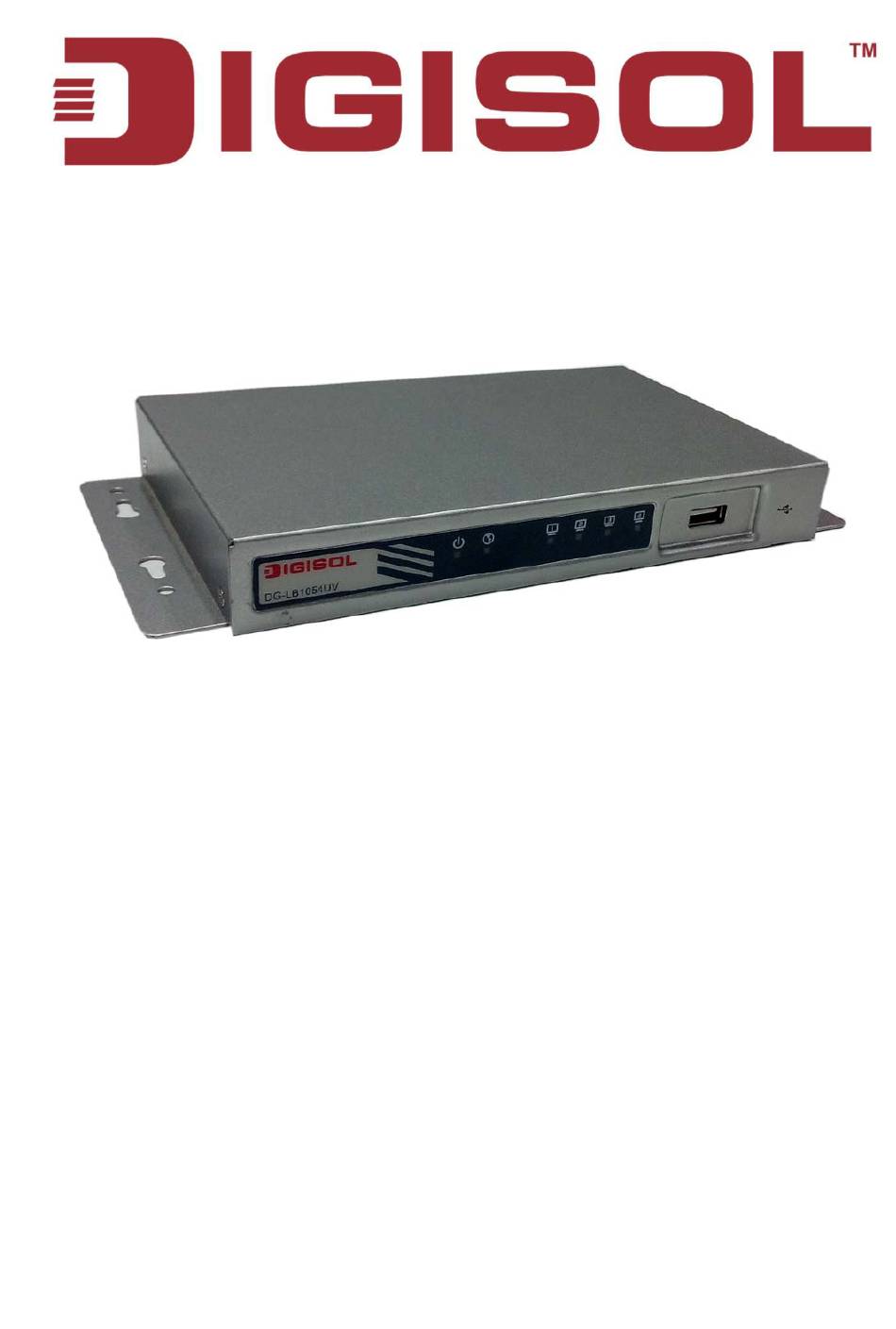

DG-LB1054UV
LOAD BALANCING ROUTER WITH 2xFE WAN , 1x3G/4G
ENABLED USB, 3xFE LAN
User Manual
V1.0
2015-04-06
