Digisol Ranger Series Quick Installation Manual
Wireless access controller, 5ge lan, 2ge wan, 1ge dmz, usb
Hide thumbs
Also See for Ranger Series:
- Quick installation manual (28 pages) ,
- Quick installation manual (21 pages) ,
- Quick installation manual (12 pages)
Related Manuals for Digisol Ranger Series
Summary of Contents for Digisol Ranger Series

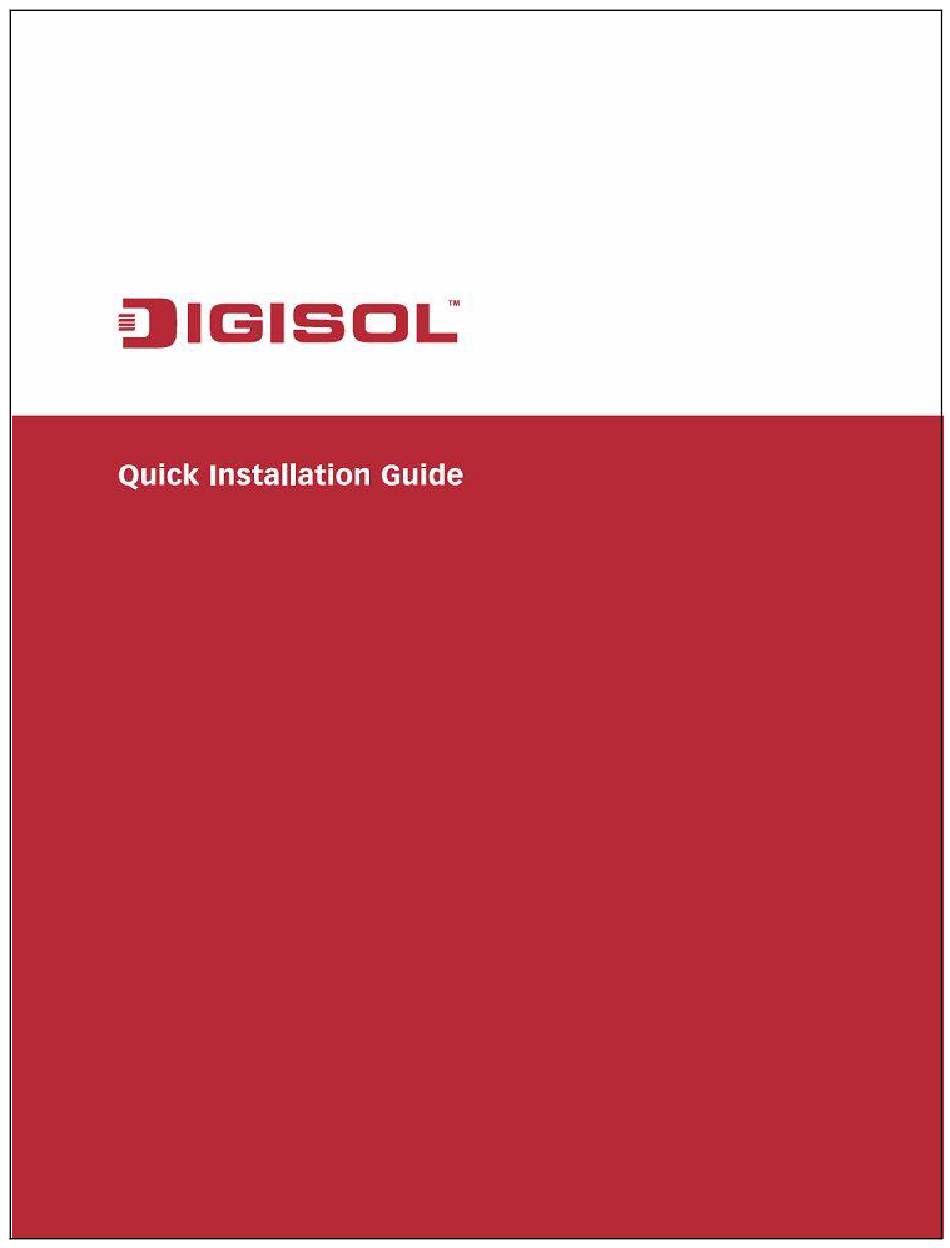

- Page 1 RANGER SERIES WIRELESS ACCESS CONTROLLER, 5GE LAN, 2GE WAN, 1GE DMZ, USB DG-WU2005V V1.0 2015-08-26...
- Page 2 Trademarks: DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers.
- Page 3 The following items should be present in your package: DG-WU2005V Power Cord Patch Cord (1 No.) Rack Mount Kit Installation Guide CD (includes User Manual & QIG) Make sure that the package contains above items. If any of the listed items is damaged or missing, please contact your retailer immediately.
- Page 4 The following system requirements are recommended An Ethernet RJ45 cable or DSL modem Network Requirements 10/100/1000 Ethernet adapter on PC / Computer with the following: Windows®, Macintosh, or Linux-based operating system. An installed Ethernet adapter. Web-based Configuration Utility Browser Requirements: Requirements Internet Explorer 6.0 or higher Chrome 2.0 or higher...
-
Page 5: Front View
Front View Reset Auto MDI/MDIX RJ-45 Ports 2x GbE WAN to connect Inte rnet, Button 1x GbE DMZ to connect local servers 5x GbE LAN to connect local devices The below mentioned table illustrates the working of the LED indicators: Description OFF: Device is powered down. -
Page 6: Rear View
Rear View Console Port (DB9) Power Receptor ON/OFF for Power Switch Cable... -
Page 7: Getting Started
Getting Started Before you can use this product, you need to connect your PC or NB to this gateway first. You can connect your PC to one of LAN1~LAN5 ports through an Ethernet cable. You can browse web UI to configure the device. Firstly you need to launch the Setup Wizard browser first and then the Setup Wizard will guide you step-by-step to finish the basic setup process. - Page 8 Wizard Select “Wizard” for basic network settings and VPN settings in a simple way. Or, you can go to Basic Network / Advanced Network / Applications / System to setup the configuration by your own selection. 2.2.1.1 Configure with the Network Setup Wizard Step 1 The network setup wizard will guide you to finish some basic settings, including login password, time zone, WAN interface and LAN interface.
- Page 9 Step 2: Change Password Password setting. You can change the login password of web UI here. It‟s strongly recommended that you change this login password from default value. Press “Next” to continue. Step 3: Time Zone Time Zone setting. It will detect your time zone automatically. If the result of auto detection is not correct, you can press “Detect Again”...
- Page 10 Step 4: WAN WAN Interface setting. Choose the type of WAN connection. You can select Ethernet WAN if you want to connect to Internet through fixed line. Or select USB 3G/4G if you want to connect to Internet through 3G/4G network. A variety of WAN types are available for Ethernet WAN connection.
- Page 11 Step 4-2: Ethernet (Dynamic IP Address) If you choose Ethernet->Dynamic IP Address, you can input host name or registered MAC address when your ISP requests it. In most cases, you can leave them as blank and go to next. This Dynamic IP WAN Type option is usually chosen when you get a dynamic IP address from ISP.
- Page 12 Step 4-4: Ethernet (PPTP) If you choose Ethernet->PPTP, you need to input required dial-up information that you get from ISP. This PPTP WAN Type option is usually chosen when your ISP requests it. Press “Next” to continue. Step 4-5: Ethernet (L2TP) If you choose Ethernet->L2TP, you need to input required dial-up information that you get from ISP.
- Page 13 Step 5: LAN LAN Interface setting. Change the LAN IP address and subnet mask of this gateway. You can keep the default setting and go to next step. Press “Next” to continue. Step 6: Confirm and Apply Check the new settings again. If all information is correct, please press “Apply” button to save new settings.
- Page 14 Step 7: Counting Down Configuration is completed. Press “Finish” button to close Setup Wizard and browser counts down for 65 seconds and provides you with “Click here” button to reconnect to the device. Configure with the VPN Setup Wizard Step 1 The VPN setup wizard will guide you to finish profiles of IPSec, PPTP and L2TP VPN connection quickly.
- Page 15 Step 2: VPN Type Select type of VPN connection you want to create. Here you can choose IPSec, PPTP, L2TP or GRE. Press “Next” to continue. Step 2-1: IPSec If you choose IPSec, there are five options of tunnel scenario which can be chosen. “Site to Site”...
- Page 16 For Dynamic VPN, you don‟t need to input network information of remote subnet and remote gateway. Press “Next” to continue. Step 2-2: PPTP If you choose PPTP, there are two options of mode can be chosen. Choose “Client” if you want this device to connect to another PPTP server. Or choose “Server” if you want other PPTP clients to connect to it.
- Page 17 settings are accepted by PPTP server. Otherwise, remote PPTP server will reject the connection. Press “Next” to continue. If you choose PPTP Server, please select options of authentication and MPPE. You also need to create a set of username and password for PPTP clients. In this wizard, you can only create one user account.
- Page 18 Step 2-3: L2TP If you choose L2TP, there are two options of mode can be chosen. Choose “Client” if you want this device to connect to another L2TP server. Or choose “Server” if you want other L2TP clients to connect to it. Press “Next”...
- Page 19 Press “Next” to continue. Step 3: Confirm and Apply Confirm new settings. If all new settings are correct, please press “Apply” button to save these new settings and make them effective.
- Page 20 Following are the solutions to problems that may occur during the installation and operation of the Digisol DG-WU2005V. Why can’t I configure the router even when the cable is plugged and the LED is lit? Note: It is recommended that you use...
- Page 21 Look under Device Status to see if the device is working properly. Click “OK”. What can I do if my Ethernet connection does not work properly? 1. Make sure the RJ45 cable connects with the router. 2. Ensure that the setting on your Network Interface Card adapter is “Enabled”. 3.
