- Page 1 XPON ONU Router with 1 PON and 1 Giga Port DG-GR6010 V1.0 2019-9-12...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: DIGISOL is a trademark of DIGISOL SYSTEMS LTD. All other trademarks are the property of the respective manufacturers.

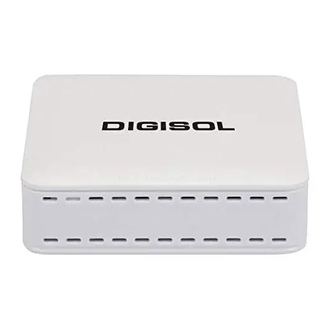

- Page 3 Overview 1:1 Product Description DG-GR6010 ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH (Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an GEPON / GPON Ethernet network. It is based on mature and stable, cost-effective EPON & GPON technology.
- Page 4 1:3 Technical Parameters Parameter Name EPON GPON SC single-mode/ SC single-mode/ single-fiber. single-fiber. Symmetric 1.25Gbps. Uplink 1.25Gbps, downlink 2.5Gbps Wavelength Tx 1310nm, Rx 1490nm Sensitivity <-28dBm(PX20+) <-28dBm(CLASS B+) Overload >-3dBm(PX20+) >-8dBm(CLASS B+) Optical Type SC/UPC Interface Type 1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector Indicators 3, For SYS, LINK/ACT, REG.
- Page 5 Installation 2:1 Installation Requirements To avoid equipment damage caused by improper use and personal injury, please observe the following precautions: Do not place the device near water or in damp places, in order to ● prevent water or moisture from entering the device. Do not place the device in an unstable place, avoid falling damage to ●...
- Page 6 1. Installed on the desktop Place the machine on a clean bench, this installation is relatively simple, you can observe the following operation: Ensure the smooth workbench. ● There should be enough space around the device for heat dissipation. ● Do not place objects on the device.
- Page 7 Web Management DG-GR6010 provides simple Web management functions including Device Information, modification of LAN Management IP address, LOID and Password, Configuration File Backup and Restore, Firmware Upgrade etc... NOTE: Detailed ONU Configuration is possible via CTC OAM Protocols on the OLT.
- Page 8 Figure 4 Device Information Device Info Menu displays the current device base informations, including Hardware Version, Software Version, Boot Loader Version. Note: 1. All the device information may be changed, the received device shall prevail.
- Page 9 Figure 5 Modify Loid and Password LOID Menu displays the current device LOID and Password informations. LOID: 0-24 bytes. Password: fixed 10 bytes. Note: 1. Usually no need to modify the Version and Vendor Product Code information, otherwise it may lead to ONU registration problems. 2.
- Page 10 Figure 6 Reboot/ Restore Default Reboot: The operation to reboot the device. Restore Default: The operation to restore the device to its factory configuration. Note: 1. Pressing the RST button for 10 seconds or more will reset the ONU to its default settings.
- Page 11 Figure 7 Upgrade Firmware upgrade Menu displays the current equipment upgrades related information.
- Page 12 Figure 8 Backup/ Restore Configuration Backup Configuration: The operation to backup configuration from the device. Restore Configuration: The operation to restore configuration from a configuration file.
- Page 13 Troubleshooting 1. After power on, all the LEDs are lit? Reasons: 1) Power connection errors. 2) Power is not normal. Solution: 1) Check that the power cable is connected. 2) The rear panel of the power supply is turned on. 2.
