  • Page 1: User Manual

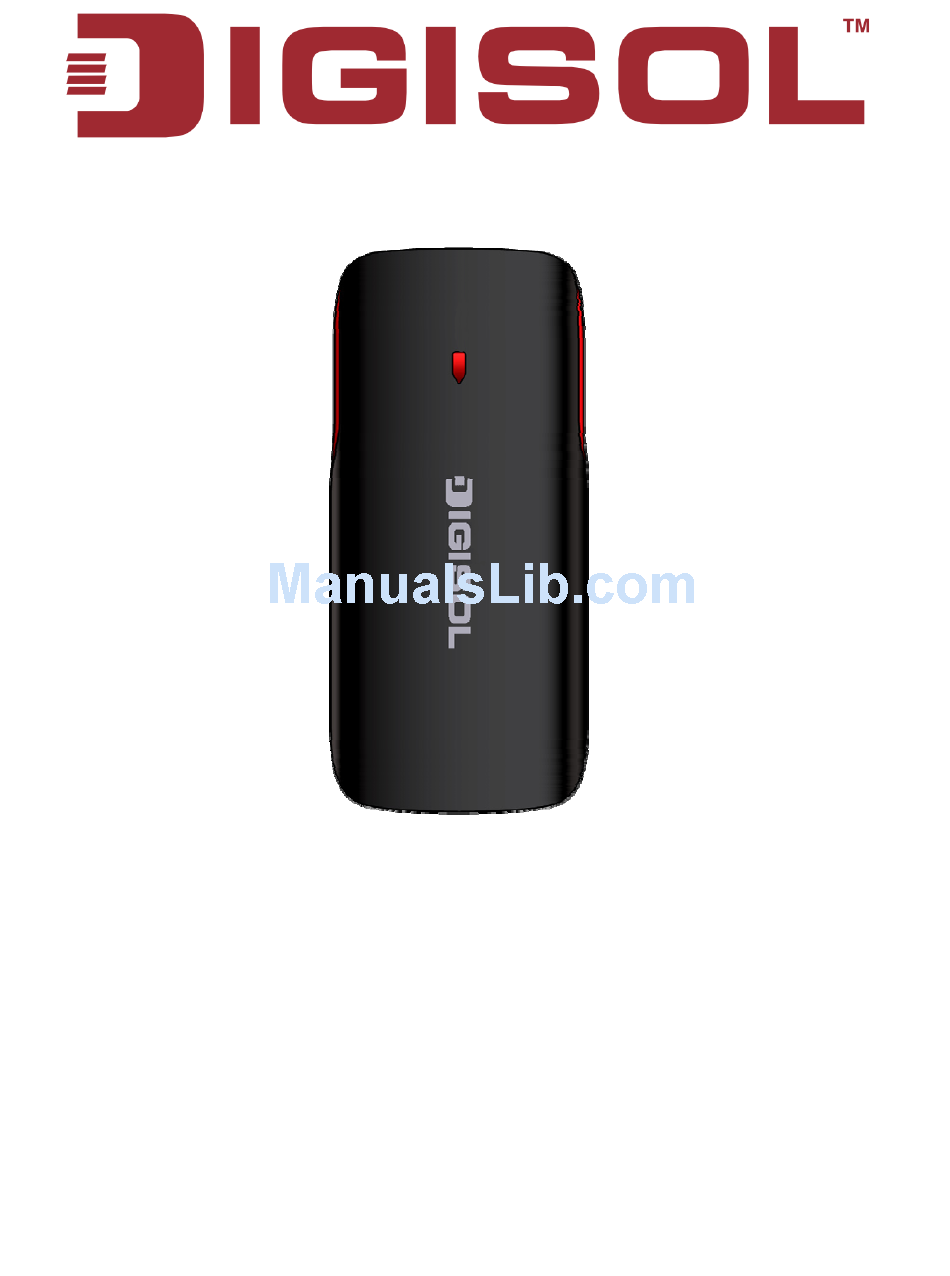

    DG-HR1160M Portable Power Bank 3G Router User Manual V1.0 2013-11-14 As our products undergo continuous development the specifications are subject to change without prior notice  ...
  • Page 2   Trademarks  DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers.   Safety ...

  • Page 3: Table Of Contents

    EQUIREMENTS ..........................4 ACKAGE ONTENTS 1-3 G 3G.................5 ET FAMILIAR WITH YOUR NEW ORTABLE OWER DG-HR1160M............................5 OUTER 2. SYSTEM AND NETWORK SETUP ......................7 2-1 I ..............................7 NSTALLATION ..............9 2-2 C ONFIGURING WIRELESS BROADBAND ROUTER BY WEB BROWSER 2-2-1 Setup Wireless Connection ........................9 2-2-2 Connecting the router’s management interface by web browser ...........12...

  • Page 4: Product Overview

    1. Product Overview   DIGISOL DG-HR1160M is a 150Mbps Wireless 3G portable power bank router. It has a compact design, perfect to carry and connect to Internet instantly. It can be used as a Power bank to charge your smart phone when on the move. The USB port on the router can be used for USB media sharing or 3G Internet connection using a 3G dongle.

  • Page 5: Get Familiar With Your New Portable Power Bank 3G

                                                                                        DG‐HR1160M User Manual  1-3 Get familiar with your new Portable Power Bank 3G Router DG-HR1160M                                                                       Below is the LED description table: LED Indicator Indicator Description Router is powered ON. PURPLE flashes every 3 sec 3G dongle is connected and trying to establish connection.
  • Page 6                                                                                     DG‐HR1160M User Manual    The above figure shows the appearance of the Portable 3G Router. It is provided only for reference and the actual product image may vary.                 6     ...

  • Page 7: System And Network Setup

                                                                                        DG‐HR1160M User Manual  2. System and Network Setup 2-1 Installation The following section explains the hardware installation procedure. Please follow the below mentioned instructions to build the wireless network connection between your new WIRELESS 3G Router and your wireless computers and other wireless devices: A) Connect your 3G dongle to USB port of the router.
  • Page 8                                                                                     DG‐HR1160M User Manual   Turn ON the router.       R: Powered ON   C: Charging Mode   : Powered OFF                                        Please check LEDs on the front panel of router. System LED should be ON. Check if the computer / network device connected to the respective port of the router is powered ON and correctly connected.

  • Page 9: Configuring Wireless Broadband Router By Web Browser

                                                                                        DG‐HR1160M User Manual  2-2 Configuring wireless broadband router by web browser   After the network connection is setup, next step is to setup the router with proper network parameters, so it can work properly in your network environment. Please use the web browser to configure the router. A computer with wireless connection to the router is required for this first-time configuration.
  • Page 10                                                                                     DG‐HR1160M User Manual  Step 2 Click on the Connect to a network. Step 3: Choose “DIGISOL” to connect.   10     ...
  • Page 11                                                                                     DG‐HR1160M User Manual  Step 4: Fill in the Security Key “12345678”, then press “OK”                                                     11     ...

  • Page 12: Connecting The Router's Management Interface By Web Browser

                                                                                        DG‐HR1160M User Manual  2-2-2 Connecting the router’s management interface by web browser   After you are successfully connected to the router, open the web browser, and type the IP address of the router in the address bar as ‘http: //192.168.2.1’. The following message should be shown, user must login to get access of the router:  ...
  • Page 13                                                                                     DG‐HR1160M User Manual      NOTE: If you can’t see the web management interface, and you’re being prompted to   input user name and password again, it means you didn’t input username and password correctly. Please retype user name and password again. If you’re certain about the user  ...

  • Page 14: Setup Procedure For Setting "Pppoe

                                                                                        DG‐HR1160M User Manual  2-3 Setup Procedure for setting “PPPoE”   Click “PPPoE”, if you want to configure your DSL Username and Password and below given screen will appear.   Below is the description of every setup item: Parameter Description Username Please input user name assigned by your Internet service provider here. Password Please input password assigned by your Internet service provider here.

  • Page 15: Setup Procedure For Setting "Wifi Password

    32 characters. SSID is used to identify your own wireless router from others when there are other wireless routers in the same area. Default SSID is ‘DIGISOL’, it’s recommended to change the default SSID value to the one which is meaningful to you, like myhome, office_room1, etc.

  • Page 16: Setup Procedure For Setting "Relay Wifi

                                                                                        DG‐HR1160M User Manual  2-5 Setup Procedure for setting “Relay WIFI”   “Relay WIFI” is also called as “WISP”. If your network service, provided by your service provider is through wireless network, please select this mode. After you have connected the router to the access point of service provider wirelessly, then you can browse Internet through your service provider.

  • Page 17: Setup Procedure For Setting Router In "3G" Mode

                                                                                        DG‐HR1160M User Manual  2-6 Setup Procedure for setting router in “3G” mode   Select this mode if you wish to connect Internet using HSPA/EVDO USB dongle. Click “3G APN” and below given screen will appear.   Below is the description of every setup items: Parameter Description Select the ISP, from drop down list.

  • Page 18: Setup Procedure For Setting "Dhcp | Static" Internet

                                                                                        DG‐HR1160M User Manual  2-7 Setup Procedure for setting “DHCP | Static” Internet   Select “DHCP | Static” mode if you have Cable Internet Connection. Click “DHCP | Static” and below given screen will appear.             Below is the description of every setup items: Parameter Description DHCP...

  • Page 19: Default Gateway

                                                                                        DG‐HR1160M User Manual  Below is the description of every setup items: Parameter Description IP Address Please input the IP address assigned by your service provider. Subnet Mask Please input the Subnet Mask assigned by your service provider. Default Gateway Please input the Default gateway assigned by your service provider.

  • Page 20: Setup Procedure For Setting Lan & Dhcp

                                                                                        DG‐HR1160M User Manual  2-8 Setup Procedure for setting LAN & DHCP   Select “LAN Setting” and below given screen will appear. Here you can change the LAN IP and set DHCP pool.   Parameter Description IP Address Set the LAN IP of router. Subnet Mask Set the subnet mask for LAN network.

  • Page 21: Setup Procedure For Updating And Restoring The Router

                                                                                        DG‐HR1160M User Manual  2-9 Setup Procedure for updating and restoring the router Select “Update | Reset” option and below given screen will appear.           Below is the description of every setup items: Parameter Description Update Firmware Click “Browse” and locate the firmware file stored and “Apply” the settings.

  • Page 22: Setup Procedure For Setting Advanced Settings

                                                                                        DG‐HR1160M User Manual  2-10 Setup Procedure for setting Advanced Settings   Select Advanced Settings for settings advanced parameter. 2-10-1 System Info   Select this option to view the “System Information”, setting “DDNS” and “Port Forwarding”. Click “System Information” and below given screen will appear.  ...

  • Page 23: Setup Procedure For 'Ddns

                                                                                        DG‐HR1160M User Manual  2-10-2 Setup procedure for ‘DDNS’ DDNS (Dynamic DNS) is an IP-to-Hostname mapping service for those Internet users who don’t have a static (fixed) IP address. It will be a problem when such users want to provide services to other users on Internet, because their IP address will vary every time when connected to Internet. Thus other users will not be able to know the IP address they’re using at a certain time.

  • Page 24: Setup Procedure For 'Port Forwarding

                                                                                        DG‐HR1160M User Manual  2-10-3 Setup procedure for ‘Port Forwarding’   This function allows you to redirect a single port or consecutive ports of Internet IP address to the same port of the IP address on a local network. Please click ‘Port Forwarding’ under advanced settings and below given screen will appear.  ...

  • Page 25: Storage

                                                                                        DG‐HR1160M User Manual  When you finish with all settings, please click ‘Apply’; if you want to cancel the settings click ‘Cancel’. 2-11 STORAGE   Select this option if you want to share the media files from USB drive connected to router. Click “Storage”...

  • Page 26: Sharing Files

    You can read the files of the disc, including photos, music, videos via the client or through browser. DG-HR1160M supports third party client which is compatible with DLNA agreement. The following demo is for SKIFTA APP installed on iPhone. This APP is compatible with Android and Windows.
  • Page 27                                                                                     DG‐HR1160M User Manual    Open the APP, as shown below. Go to “Choose a media source” where you will see the storage USB disk.   As shown below, 2 storage disks are listed. First one is the phone storage and second is the USB storage connected to router.
  • Page 28                                                                                     DG‐HR1160M User Manual    Select “Media 1” and it will list all the files stored in the USB disk.   28     ...

  • Page 29: Troubleshooting

    Kindly confirm the APN details from ISP. If still unable to connect then there is compatibility issue of 3G dongle with the router.         This product comes with one year warranty. For further details about warranty policy and Product Registration, please visit support section of www.digisol.com 29     ...
