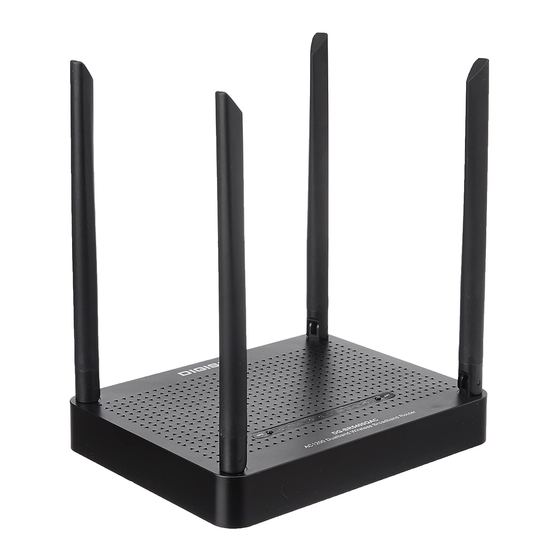

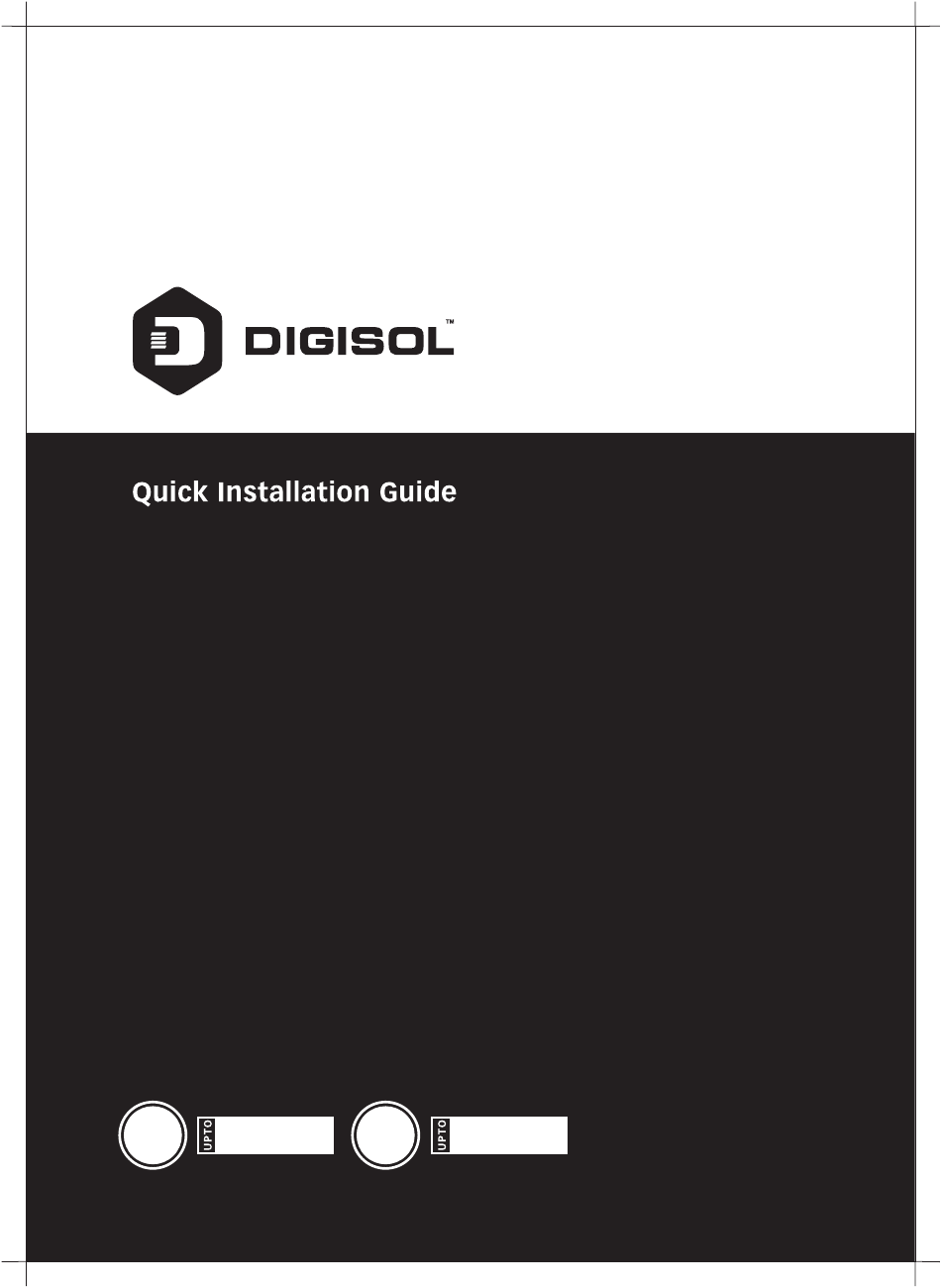

- Page 1 RANGER SERIES AC1200 Dual Band Wireless Broadband Router DG-BR5400QAC 867 Mbps 300 Mbps V1.0 2016-09-21...
- Page 2 Trademarks: DIGISOL is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers.
-
Page 3: Package Contents
Package Contents: Before you start using this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: • DG-BR5400QAC AC1200 Dual Band Wireless Broadband Router • Power adapter (12V DC, 1A ) •... -
Page 4: System Requirements
• Supports DHCP (Server/Client) for easy IP-address setup. • Advanced network and security features like:IP Filter/Traffic Rules, Port Forward, MAC filter, Firewall etc. • Allows you to monitor the router’s status like: DHCP Client Log, System Log, Security Log and Device/Connection Status. •... -
Page 5: Hardware Interface
Hardware Interface: There is hardware interface on back panel of router as described below: Interfaces Description USB port to connect pen-drive or external disk Local Area Network (LAN) ports 1 to 4. LAN (1 - 4) Wide Area Network (WAN / Internet) port. The Power socket is where you will connect the power Power adapter. - Page 6 On top view of router, There is four 5bBi dipole, non detachable antennas on each corner of router. WPS, RST button and LED to describe connection status of router. WPS: Press this button for 3 seconds to initiate WPS. RST(RESET): Reset the router to factory default settings (clear all settings). Press this button and hold for 3 seconds to restore all settings to factory default.
-
Page 7: Hardware Installation
Hardware Installation: Please follow the below mentioned instructions to build the network connection between your new wireless router and your computers, network devices: Connect your Internet connection to the WAN port of the router by an Ethernet cable. Connect all your computers, network devices (switch / hub) to the LAN port of the router. - Page 8 Connect the power adapter (12V DC / 1A ) to the wall socket, and then connect it to the‘Power’ socket of the router. Please check all LEDs on the front panel. Power LED should be steadily ON, WAN and LAN LEDs should be ON. Check if the computer/network device connected to the respective port of the router is powered ON and correctly connected.
-
Page 9: Quick Install Guide
Quick Install Guide: For quick router setup please follow the step mention below: Open the web browser, and type the IP address of the router in the address bar as ‘http://192.168.2.1’. The following web page will display on screen: Please input password in given field to access router configuration, default password is ‘1234’, then press ‘GO’... - Page 10 After login, below page shown will be displayed Please choose the access (Internet connection) type that you use to connect to internet. There are three types of Internet connections: Dynamic IP(dhcp), Static IP(static) and PPPoE. If you’re not sure, please contact your Internet service provider.
-
Page 11: Dhcp Configuration
DHCP configuration Select "dhcp" ( Dynamic IP ) under Access type option to obtain IP Address information automatically from your ISP. Usually Cable Modem and the router will automatically obtain an IP address from the DHCP server. Insert MAC address which has to make clone if require, default clone MAC address is WAN MAC address. -
Page 12: Static Ip Configuration
Static IP(Static) configuration Select Access type as ‘’Static’’ if IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address and DNS address provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). -
Page 13: Pppoe Configuration
PPPoE configuration Choose PPPoE. (Point to Point Protocol over Ethernet), below given screen will be displayed. If your ISP uses a PPPoE connection it will provide you with a username and password. Insert the username and password in respective field. Insert MAC address which has to make clone if require,default clone MAC address is WAN MAC address. -
Page 14: Wifi Configuration
WIFI configuration Check ‘WIFI setting’ on Quick install page. Enter the ‘SSID’ for both band (i.e for 5GHz and 2.4GHz) and set Password. Password must contain at least 8 character. By default WIFI is open share and any one can access you network. Kindly keep your WIFI secure by setting password. -
Page 15: Web Management
Web Management: After your system get IP address from you router go to web browser and type IP address of router in address bar as ‘http://192.168.2.1/’. After that login page will appear, input router password to access router. Default password is ‘1234’ Input password and click on ‘GO’... - Page 16 Following are the solutions to problems that may occur during the installation and operation of the DIGISOL DG-BR5400QAC Wireless Broadband Router. 1. Cannot login into the router. Verify whether password you entered is correct. If you have forgotten the password, then reset the router using reset button available on the top side of the router.
- Page 17 3. Wireless client cannot locate the router. Verify whether Wireless is disabled in router’s web configuration. Verify whether the antenna is properly connected and in correct direction. Is your wireless client far away from your router? Try to get closer to the router.
- Page 20 DIGISOL SYSTEMS LIMITED Smartlink House, Plot. No. 5, Off CST Road, Bandra-Kurla Complex Road, Santacruz (East), Mumbai - 400 098, India. Tel: +91 22 3061 6666 / 2652 6696, A Subsidiary of Smartlink Network Systems Ltd. Fax: +91 22 2652 8914 www.digisol.com...
